| Place of Origin: | Guangdong , China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949 |
| Model Number: | 1R14-028 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | GOODYEAR: | 1R14-028 |
|---|---|---|---|
| Other Name: | S.A.F Air Spring Shock | GOODYEAR Flexmember: | 566283021 |
| Triangle: | 8316 | Piston: | 566207096 |
| Contitech: | 1110.5-17A316 | Firestone: | W013589177 |
| GOODYEAR Piston: | 566-20-7-096 | ||
| High Light: | W01-358-9177,1110.5-17A316 Firestone Air Spring,1R14-028 Goodyear Air Bags |
||

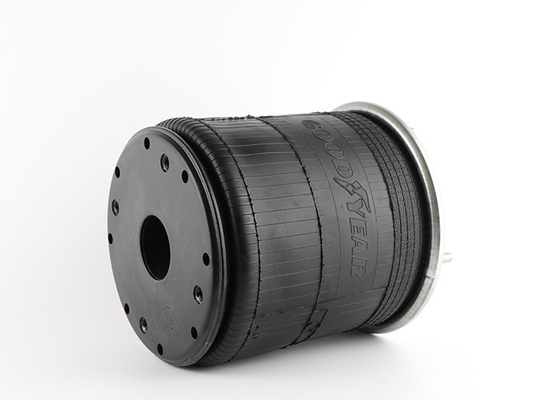

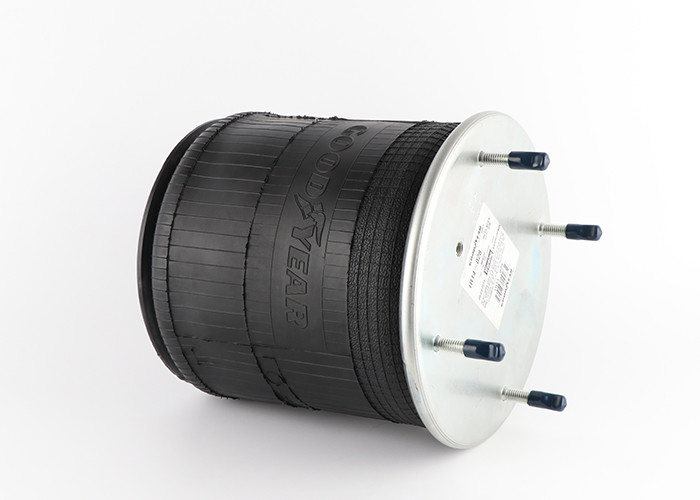

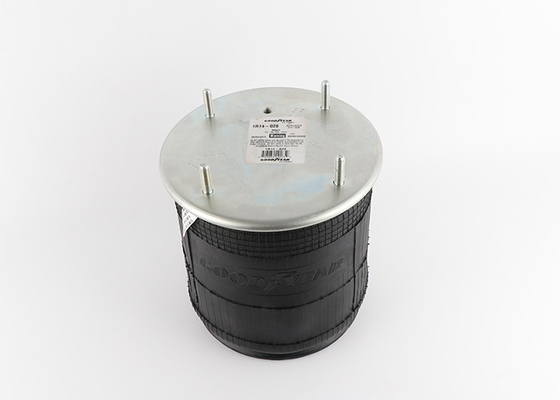

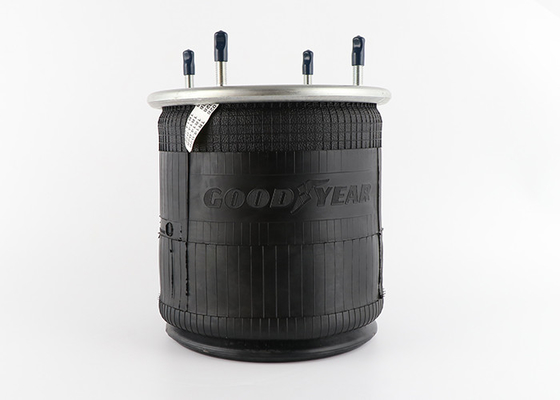

Firestone Air Spring W01-358-9177 Contitech Air Suspension 1110.5-17A316 Same Size As 1R14-028 Goodyear Air Bags
Description of 1R14-028 Goodyear Air Spring:
1R14-028 this air spring is imported from the American brand Goodyear. Its skin number is 566-28-3-021. This is a real imported thing produced by a factory in Mexico.
The quality of the air spring is very good. Many customers use it. After use, it may take several years to replace.
The Goodyear brand is one of the world's three major brands, which is well known.
This air spring is most widely used on medium and large trucks.
Some customers also use it on various shock absorption equipment or lifting equipment.
Goodyear 1R14-028 Specifications:
Roof hole/stud: 5
Base plate hole/stud: 4
Top plate diameter: 11.3
Base plate diameter: 10.2
Folding height: 7.7
Flexible members: 566-28-3-021
Piston: 566-20-7-096
Piston type: S
OEM Suspension Supplier Number:
Watson &Chalin Part NO.: AS-0010
Goodyear Trim Part NO.: 1R14028
Dayton Part NO.: 352-9177
Firestone Part NO.: W01-358-9177,
Firestone Part NO.: W01-358-9179
Firestone Part NO.: 9177
Firestone Part NO.: 9179
Contitech Part NO.: 11 10.5-17 A 316,
Contitech Part NO.: 11 10.5-17 A 366
Contitech Part NO.: 64342,
Contitech Part NO.: 64345
HDA Part NO.: PMABG9177B
Hendrickson Part NO.: B-2065
Load Guard Part NO.: SC2046
Navistar Part NO.: 554779C1
Neway Part NO.: 90557003
R&S Truck Part NO.: 1090216
Ridewell Part NO.: S-2573C
Ridewell Part NO.: S-4695C
Ridewell Part NO.: S-4797C
Ridewell Part NO.: 1003589177C
Taurus Part NO.: AS621-9177
Taurus Part NO.: AS621-9179
Triangle Part NO.: 8316
Triangle Part NO.: 8366
Triangle spring: 8316
Triangle spring: 8366
Firestone: 9177
Firestone: 9179
Kangdi Technology: 64342
Kangdi Technology: 64345
R & D truck: 1090216
Neway: 90557003
Goodyear Airlines: 566283011
Reedwell: 1003589177C
Batman: 10-99177
Kangdi Technology: 1110.5-17A316
Navistar / IHC: 554779C1
UCF / Impex: AB-1R14-028
T.W. Distribution: AB9177
Neway: AR-1115-1-F
Watson & Chalin: AS0010
Taurus: AS621-9177
Taurus: AS621-9179
Dallas Spring: AS9177
Midland / Haldex: CS114028
Euclid / Meritor Aftermarket: E-FS9177
Euclid / Meritor Aftermarket: E-FS9179
Euclid / Meritor Aftermarket: FS9177
Euclid / Meritor Aftermarket: FS9179
BWP: M-3521
HD USA: PMABG-9177B
Reedwell: S2573C
Reedwell: S4695C
Reedwell: S4797C
Leland: SC2046
