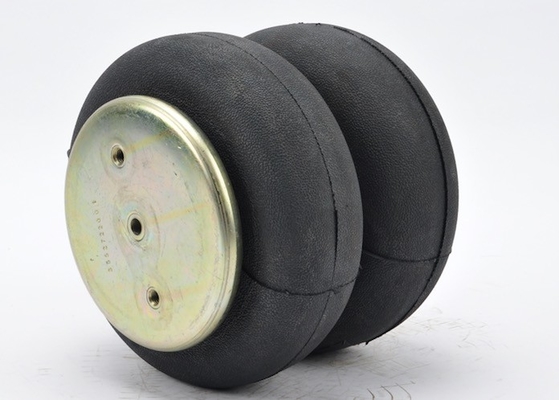

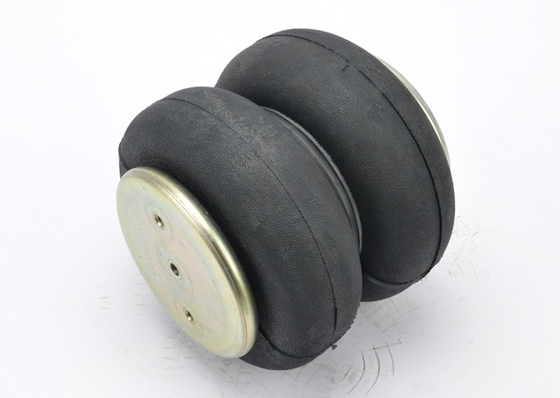

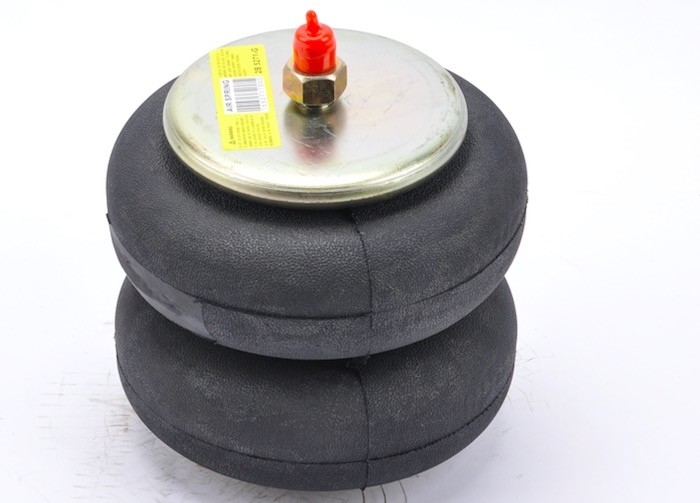

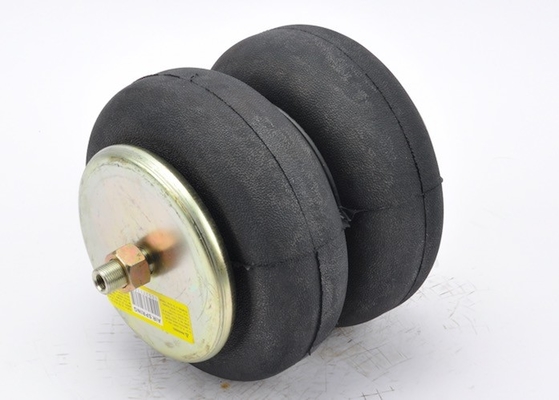

FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits

FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits

  • FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits
  • FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits
  • FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits
  • FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits
FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6927
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: IRON Cover Plate , Rubber Bellows Contitech3: FD200-2545
Gas Hole: 1/4NPT Screw Tooth: 3/4-16UNF
Screw Center Distance: 89 Mm Cover Plate Diameter: 160 Mm
Pressure Ability: 0.2-0.8 M Pa Stroke: 81-325 Mm
Firestone: W01-358-6927
High Light:

SC2072 Contitech Air Spring

,

1/4NPT Contitech Air Spring

,

FD 200-25 453

FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits





Description:



GUOMAT 2B6927 Replaces FD 200-25 453 Contitech offers different types of air springs and air shock absorbers to meet your actuation or isolation needs. Single, double and triple bellows, needle rollers and sleeves are available in various sizes. End bracket types are required depending on your specific installation needs. In addition to our air spring series, we also offer various industrial shock absorbers and vibration damping solutions.

GUOMAT 2B6927 Replaces FD 200-25 453 Contitech air springs are characterized by extremely high durability, precise technical design and cost efficiency and can be used in a variety of actuation and vibration isolation applications. The GUOMAT 2B6927 Replaces FD 200-25 453 Contitech gas spring has a proven design combined with a fabric-reinforced flexible Wingprene ™ or natural rubber structure and corrosion-resistant end fixings to provide superior quality and performance. As an actuator, GUOMAT 2B6927 Replaces FD 200-25 453 Contitech air springs can provide linear or angular movement.

Compared to cylinders, they can isolate vibrations and adjust the load height at the same time, and achieve uniform vibration isolation effects with different loads. These air springs (air shock absorbers) have a good ratio of stroke to pressure height and can accommodate a large number of actuating media such as air, water, nitrogen or antifreeze. As an isolator, the GUOMAT 2B6927 Replaces FD 200-25 453 Contitech gas spring can effectively reduce the harmful effects of vibrations.





GUOMAT 2B6927 Technical parameters



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1pcsX 3/4-16UNF

Top Cover Plate Screw (Nut) is Combined with the (Gas Hole / Air inlet / Air Fitting) which is In The Middle Of The Top Cover Plate

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

Cover Plate

Top Cover Plate Diameter: 160 mm /

Top Cover Plate Diameter:6.31 inches

Bottom Cover Plate Diameter: 160 mm /

Bottom Cover Plate Diameter:6.31 inches

Rubber Bellows

Rubber Bellows MAX Diameter: 262 mm

Rubber Bellows MAX Diameter: 10.3 inches

Rubber Bellows Natural Diameter :225 mm /

Rubber Bellows Natural Diameter :8.88 inches

The Working Stroke : MAX 325mm to MIN 81 mm

Maximum Height : 325 mm

Minimum Height :81 mm /

Minimum Height :3.12 inches

Stroke Height : 224 mm

Bumper block / Buffer block

With Bumper Block Or Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





GUOMAT 2B6927 Cross others OEM



GUOMAT Part Number:2B6927

Firestone Part Number:W01-358-6927 /

Firestone Part Number:w013586927 /

Firestone Part Number:w01 358 6927

Firestone Bellows Number:20-2

ContiTech Part Number: FD20025453 /

ContiTech Part Number:FD200-25453

ContiTech Part Number:FD200-25 453

ContiTech Part Number : 16133

Goodyear Part Number:2B9-218 /

Goodyear Part Number:2B9218 /

Goodyear Part Number:2B9 218

Goodyear Bellows Number:578-92-3-202 /

Goodyear Bellows Number::578923202 /

Goodyear Bellows Number::578 92 3 202

Reyco Number:12906-01

Triangle Part Number:4453

Triangle Bellows Number:6332

Leland : SC2072

SAF Holland : 57006927

Tuthill Technology : FSIP OEM: W017556927

Tuthill Technology : 1290601





W01-358-6927 Cross others OEM



OEM References Numbers References Numbers
Firestone : W01-358-6927 Triangle : 6332/4453
Contitech : FD 200-25 453 Leland : Sc2072
Contitech :: 161336 SAF Holland : 57006927
Goodyear : 2B9-218 Tuthill Technology : 1290601
Goodyear : 578923206/2 Reyco : 12906-01





Common applications of GUOMAT AIR SPRING airbag



The drive axle GUOMAT AIR SPRING greatly improves the driving and handling performance of the tractor, thereby improving the comfort and safety of the driver. GUOMAT AIR SPRING reduces the maintenance of the tractor, prolongs the wear of the tires, and increases the depreciation price of the car.GUOMAT AIR SPRING hardly needs too much maintenance, and the service life of GUOMAT AIR SPRING may be more than twice that of steel springs.



The main trailer suspension GUOMAT AIR SPRING provides excellent cargo protection, is not easy to cause damage to the cargo, and at the same time reduces other maintenance problems caused by road vibration and trailer bounce when empty. The air spring can make the trailer service life longer. Because of its good shock absorption effect, it can be used to haul more kinds of goods, such as some fragile and breakable items. GUOMAT AIR SPRING reduces the expensive empty trailer mileage.





Details Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]



FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits 0FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits 1

FD 200-25 453 Contitech Air Spring Actuators For Leland SC2072 Air Bag Kits 2
