Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B7025 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | GUOMAT No.: | 2B7025 |
---|---|---|---|
Weight: | 1.9kg | Working Stroke: | 130 Mm |
Design Height: | 212mm | Loading Cap. At 7.0bar: | 6.23kN |
Pressure Ability: | 0.2-0.8 MPa | Firestone: | W01-358-7025 |
High Light: | 130mm Double Convoluted Air Bags,W01-358-7025 Firestone Air Spring,6.23kN Firestone Air Spring |

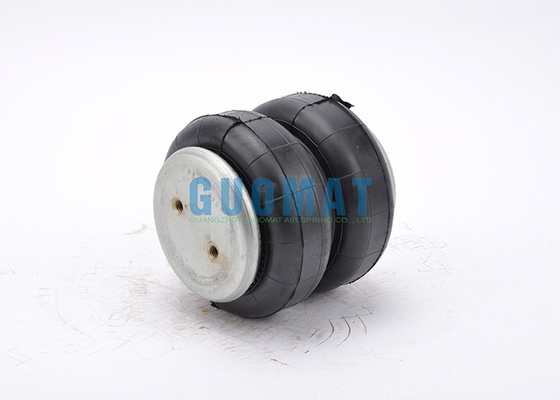

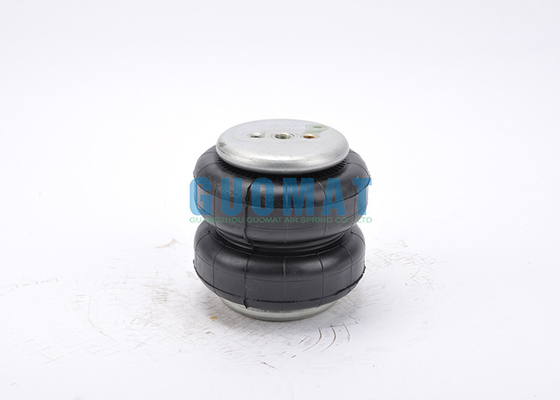

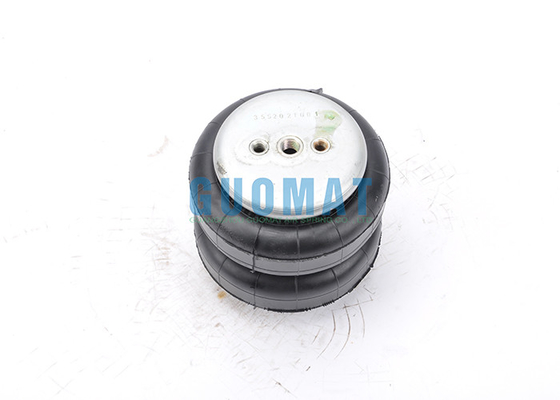

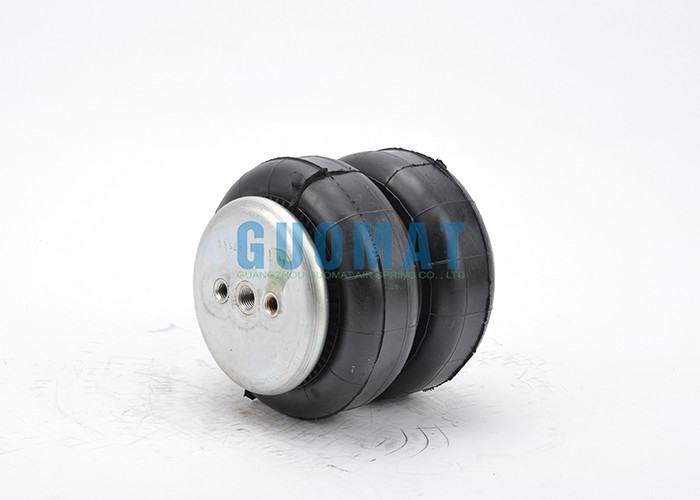

W01-358-7025 Firestone Air Spring Double Convoluted Air Bags For Western Star Trucks
OEM Cross:
GUOMAT NO.:2B7025
Firestone:W01-358-7025
Firestone:W01 358 7025
Firestone:W013587025

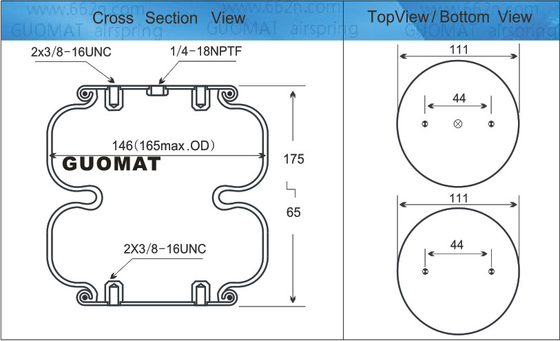

Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
In Middle of Bottom Cover Plate
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet :1/4-18NPTF
❸ Cover Plate
Top Cover Plate Diameter (Width): 111 mm
Bottom Cover Plate Diameter (Width): 111 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 146mm
Rubber Bellows MAX Diameter : 165 mm
Installation Space Diameter : 180 mm
Rubber Bellows Natural Height : 212 mm
Stroke:65mm-175mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
About the 2B7025 Air Spring:
GUOMAT springs can be installed on most light trucks, RVs, RVs, SUVs and vans. They are mounted between the frame and axle of the vehicle and provide variable load support by adjusting the air pressure. GUOMAT springs can re-adjust the level of heavy-duty vehicles. Sport-Rite air springs, such as the GUOMAT air-assisted spring, improve driving and handling. While the GUOMAT kit includes a convoluted air spring, the Sport-Rite kit includes an innovative tapered sleeve air spring that is more conducive to specific applications.
Note:
• The air spring can only move on the workpiece, or it must be equipped with a limit stop at the end of the stroke, otherwise the rubber material of the air spring will be overloaded or cause internal damage
• The restoring force is required to compress the air spring to the minimum height. Usually achieved by applying external force
• The entire air spring surface of the upper and lower plates must be used to absorb the force
•Before removing the air spring, the air pressure in it must be discharged.
•During operation, the wall of the air spring must not be in contact with other parts, otherwise the air spring will be worn and damaged, and air leakage will occur.
Air Spring NO. | Load | Design H. | Min. H. | Safe Elongation | Full Stroke |
Air Spring NO. | Load | Design H. | Min. H. | Safe Elongation | Full Stroke |
310312J-2 | 115 | 360 | |||
420185J-2 | 111 | 100 | 211 | 111 | |
310220J-2 | 85 | 250 | 165 | ||
235210J-2 | 85 | 245 | 160 | ||
156130J-2 | 70 | 145 | 75 | ||
130140J-2 | 70 | 155 | 85 | ||
380228J-2 | 5251 | 170 | 90 | 260 | 170 |
360220J-2 | 4596 | 170 | 80 | 250 | 170 |
330220J-2 | 3672 | 170 | 80 | 250 | 170 |
300180J-2 | 3021 | 240 | 85 | 213 | 240 |
260230J-2 | 1506 | 173 | 90 | 263 | 173 |
250190J-2 | 1834 | 135 | 85 | 220 | 135 |
235160J-2 | 1943 | 103 | 80 | 183 | 103 |
220200J-2 | 1310 | 139 | 90 | 229 | 139 |
200160J-2 | 1216 | 110 | 80 | 190 | 110 |
188195J-2 | 695 | 136 | 87 | 223 | 136 |
168156J-2 | 780 | 104 | 75 | 179 | 104 |
160174J-2 | 572 | 129 | 67 | 196 | 129 |
146132J-2 | 607 | 71 | 80 | 151 | 71 |
130118J-2 | 561 | 72 | 65 | 137 | 72 |
