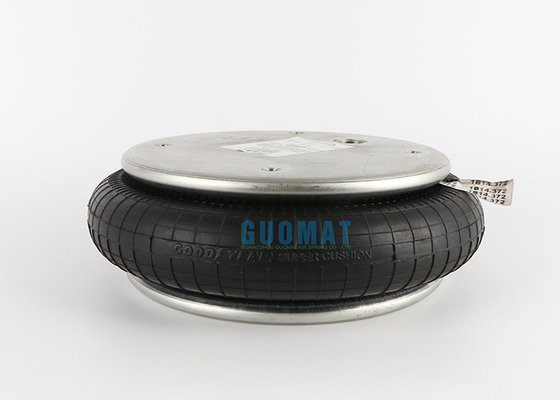

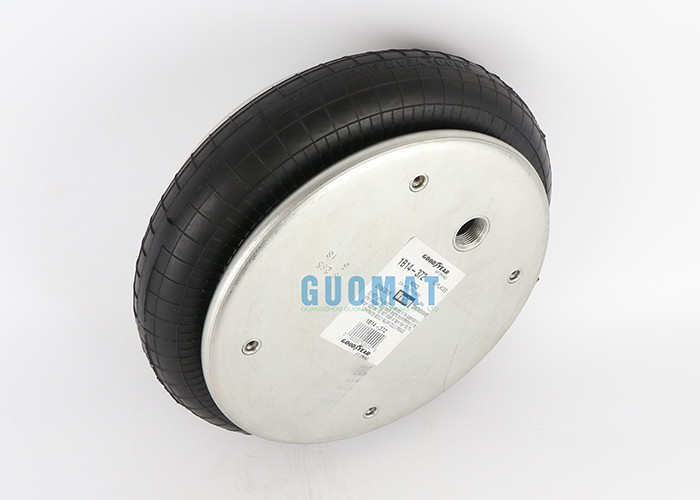

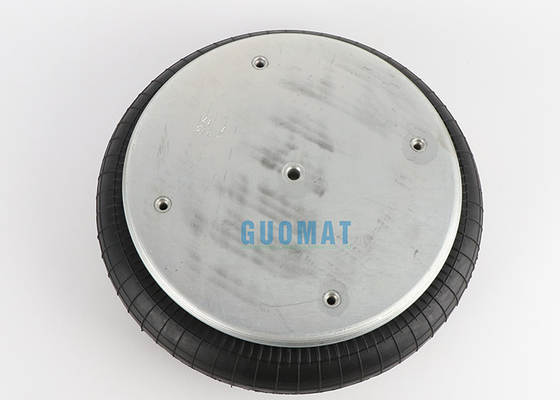

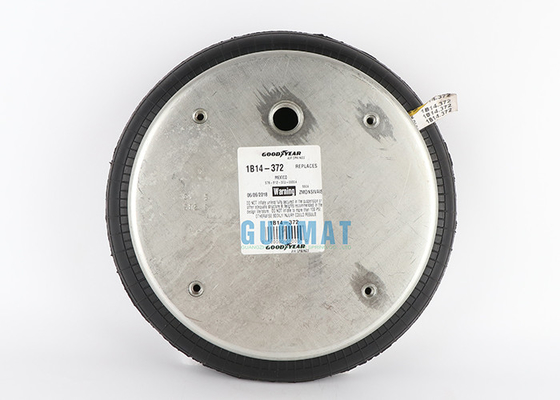

W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372

W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372

  • W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372
  • W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372
  • W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372
  • W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372
W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372
Product Details:
Place of Origin: Guangdong,China
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 1B14-372
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Goodyear: 578-91-3-351
Warranty: 12 Months Weight: 7.0 Kg
Other Name: Air Suspension Pressure Ability: 0.2-0.8 M Pa
Firestone: W01-M58-6369 Conti: FS 530-14 CI G 3/4
Air Fitting: G 3/4
High Light:

W01-M58-6369

,

1B14-372 firestone air springs

,

578-91-3-351 goodyear air bags

W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372





OEM Original Manufacturer:



Goodyear 1B14-372

Goodyear 1B14 372

Goodyear 1B14372

Goodyear 578-91-3-372

Goodyear 578 91 3 372

Goodyear 578913372

Goodyear 578-91-3-351

Goodyear 578 91 3 351

Goodyear 578913351

UPPER BEAD PLATE
ASA-92-8-285
L OWER BEAD PL ATE
ASA-92-6-085
FLEXIBL E MEMBER
578-91-3-351



Cross OEM



Firestone:W01-M58-6369

Firestone:W01 M58 6369

Firestone:W01 M58 6369

Contitech:FS 530-14 CI G 3/4

Contitech:FS530-14 CI G 3/4



Maximum Diameter @ 7 Bar (mm) Dim. A (Blind Nut Centers) (mm)
404 159
Maximum Height (mm) AIRMOUNT ISOLATOR
51 Design Height (mm)
Maximum Stroke (mm) 140
117 Load (at Design Height) at: 3 Bar (kN)
Minimum Usable Height (mm) 18.5
168 Load (at Design Height) at: 5 Bar (kN)
Force in kN @ 5 Bar at Stroke of 25 mm 31.8
43.8 Load (at Design Height) at: 7 Bar (kN)
Force in kN @ 5 Bar at Stroke of 50% of Max Stroke 45.1
37.1 Natural Frequency (@5 Bar)(fn(Hz)
Force in kN @ 5 Bar at Stroke of Maximum Stroke 2.3
22.2 % of Isolation at Forced Frequency 7 Hz
Style Cross-Ref High Strength Style Number 86.9
128-1 % of Isolation at Forced Frequency 13 Hz
Material 97
2-Ply Standard Cord % of Isolation at Forced Frequency 25 Hz
END CLOSURE DETAILS 99.2
Bead plate Type
2





Goodyear Original:1B14-372



Fortunately, we have the opportunity to become one of the world's three major brands of Goodyear China regional agents, for the world's three major brand product quality we are affirmed. They are also our example has been learning in China, we are also trying to do their own brand of air spring product quality. Because we are Goodyear agents, and therefore also give customers more choices.



W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372 0W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372 1W01-M58-6369 Firestone Suspension Air Spring 578-91-3-351 Cross Goodyear 1B14-372 2



The usual below kinds of Goodyear air spring we have:



GUOMAT Number Assembly Number Max OD @100 PSIG (Inches) Design Load Range (pounds) Design Height Range (Inches) Usable Stroke (Inches) Min Comp Height (Inches) Max Ext Height (Inches) Bumper Included Approximate Isolation Percent Air Fitting Size (Inches)
For a Distributing Frequency Of:
435 CPM 870 CPM 1160 CPM 1750 CPM
1B12 301 1B12-301 13.2 1,350 - 8,800 3.0 - 5.0 4.6 2.6 7.2 YES 89 97 98 99 1/4 OS
1B12 304 1B12-304 13.2 1,350 - 8,800 3.0 - 5.0 4.9 2.3 7.2 NO 89 97 98 99 3/4 OS
1B12 305 1B12-305 13.2 1,350 - 8,800 3.0 - 5.0 4.6 2.6 7.2 YES 89 97 98 99 3/4 OS
1B12 313 1B12-313 13.2 1,350 - 8,800 3.0 - 5.0 4.9 2.3 7.2 NO 89 97 98 99 1/4 OS
1B14 350 1B14-350 15.2 1,900 - 11,900 4.0 - 5.25 4.9 2.3 7.2 NO 86 96 98 99 1/4 OS
1B14 351 1B14-351 15.2 1,900 - 11,900 4.0 - 5.25 3 4.2 7.2 YES 86 96 98 99 1/4 OS
1B14 352 1B14-352 15.2 1,900 - 11,900 4.0 - 5.25 4.9 2.3 7.2 NO 86 96 98 99 3/4 OS
1B14 353 1B14-353 15.2 1,900 - 11,900 4.0 - 5.25 3 4.2 7.2 YES 86 96 98 99 3/4 OS
1B14 362 1B14-362 15.9 2,200 - 13,500 3.25 - 5.25 6 2.3 8.3 NO 87 97 98 99 3/4 OS
1B14 64 1B14-364 15.9 2,200 - 13,500 3.25 - 5.25 6 2.3 8.3 NO 87 97 98 99 1/4 OS
1B15 375 1B15-375 17.5 2,200 - 13,700 4.4 - 5.4 5.6 2.3 7.9 NO 91 97 98 99 1/4 OS
1B15 376 1B15-376 17.5 2,200 - 13,700 4.4 - 5.4 3.7 4.2 7.9 YES 91 97 98 99 1/4 OS
1B15 377 1B15-377 17.5 2,200 - 13,700 4.4 - 5.4 5.6 2.3 7.9 NO 91 97 98 99 3/4 OS
1B15 378 1B15-378 17.5 2,200 - 13,700 4.4 - 5.4 3.7 4.2 7.9 YES 91 97 98 99 3/4 OS
1B5 500 1B5-500 5.7 210 - 1,350 2.5 - 3.0 2 1.8 3.8 NO 72 94 96 98 1/4 C
1B5 502 1B5-502 5.7 210 - 1,350 2.5 - 3.0 2 1.8 3.8 NO 72 94 96 98 3/4 C
1B5 503 1B5-503 5.7 210 - 1,350 2.5 - 3.0 2 1.8 3.8 NO 72 94 96 98 1/4 TV
1B5 510 1B5-510 6 190 - 1,500 2.5 - 4.0 3 1.8 4.8 NO 82 96 97 99 1/4 C
1B5 512 1B5-512 6 190 - 1,500 2.5 - 4.0 3 1.8 4.8 NO 82 96 97 99 3/4 C
1B5 520* 1B5-520* 6.5 190 - 1,500 3.5 - 5.0 3.0* 1.8 5.8 NO 83 96 97 99 1/4 C
1B5 521* 1B5-521* 6.5 190 - 1,500 3.5 - 5.0 3.0* 1.8 5.8 NO 83 96 97 99 3/4 C
1B6 530 1B6-530 6.5 280 - 1,900 3.0 - 4.0 2.8 2 4.8 NO 78 95 97 98 1/4 C
1B6 531 1B6-531 6.5 280 - 1,900 3.0 - 4.0 2.8 2 4.8 NO 78 95 97 98 1/4 OS
1B6 532 1B6-532 6.5 280 - 1,900 3.0 - 4.0 2.5 2.3 4.8 YES 78 95 97 98 1/4 OS
1B6 535 1B6-535 7 250 - 2,200 4.0 - 6.0 3.4* 2 7.1 NO 90 97 98 99 1/4 C
1B6 536* 1B6-536* 7 250 - 2,200 4.0 - 6.0 3.4* 2 7.1 NO 90 97 98 99 1/4 OS
1B6 538* 1B6-538* 7 250 - 2,200 4.0 - 6.0 3.4* to 3.1* 2.3 7.1 YES 90 97 98 99 1/4 OS
1B7 540 1B7-540 7.7 140 - 2,200 3.5 - 4.5 3.2 2 5.2 NO 83 96 97 99 1/4 C
1B7 541 1B7-541 7.7 140 - 2,200 3.5 - 4.5 3.2 2 5.2 NO 83 96 97 99 1/4 OS
1B7 542 1B7-542 7.7 140 - 2,200 3.5 - 4.5 2.9 2.3 5.2 YES 83 96 97 99 1/4 OS
1B8 550 1B8-550 8.7 320 - 2,900 3.75 - 4.75 3.3 2 5.3 NO 83 96 97 99 1/4 C
1B8 552 1B8-552 8.7 320 - 2,900 3.75 - 4.75 3.3 2 5.3 NO 83 96 97 99 3/4 C
1B8 553 1B8-553 8.7 320 - 2,900 3.75 - 4.75 3.3 2 5.3 NO 83 96 97 99 1/4 OS
1B8 554 1B8-554 8.7 320 - 2,900 3.75 - 4.75 3 2.3 5.3 YES 83 96 97 99 1/4 OS
1B8 560* 1B8-560* 9.4 180 - 3,300 4.0 - 6.5 3.2* 2 6.7 NO 85 96 97 99 1/4 C
1B8 562* 1B8-562* 9.4 180 - 3,300 4.0 - 6.5 3.2* 2 6.7 NO 85 96 97 99 3/4 C
1B8 563* 1B8-563* 9.4 180 - 3,300 4.0 - 6.5 3.2* 2 6.7 NO 85 96 97 99 1/4 OS
1B8 564* 1B8-564* 9.4 180 - 3,300 4.0 - 6.5 3.2* to 2.9* 2.3 6.7 YES 85 96 97 99 1/4 OS
1B9 201 1B9-201 11 640 - 3,900 4.5 - 5.0 2.7 3.2 5.9 YES 84 96 97 99 1/4 OS
1B9 202 1B9-202 11 640 - 3,900 4.5 - 5.0 3.6 2.3 5.9 NO 84 96 97 99 1/4 OS
1B9 204 1B9-204 11 640 - 3,900 4.5 - 5.0 3.6 2.3 5.9 NO 84 96 97 99 1/2 OS
1B9 205 1B9-205 11 640 - 3,900 4.5 - 5.0 2.7 3.2 5.9 YES 84 96 97 99 1/2 OS
1B9 207 1B9-207 11 640 - 3,900 4.5 - 5.0 3.6 2.3 5.9 NO 84 96 97 99 3/4 OS
1B9 208 1B9-208 11 640 - 3,900 4.5 - 5.0 2.7 3.2 5.9 YES 84 96 97 99 3/4 OS
