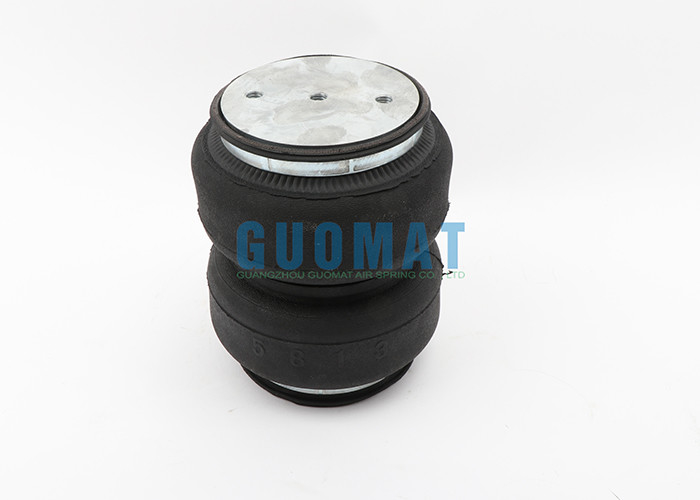

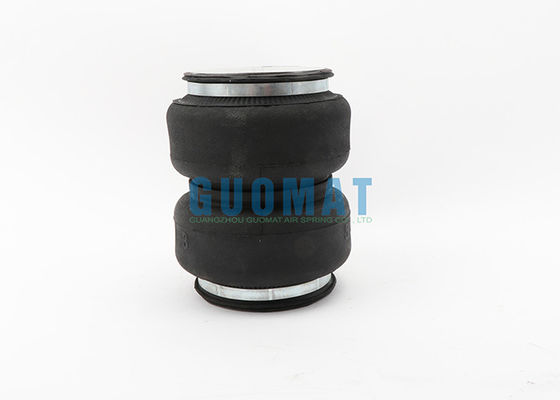

142156K-2 Double Convoluted Suspension Air Spring With Safe Height 160MM

142156K-2 Double Convoluted Suspension Air Spring With Safe Height 160MM

  • 142156K-2 Double Convoluted Suspension Air Spring With Safe Height 160MM
  • 142156K-2 Double Convoluted Suspension Air Spring With Safe Height 160MM
  • 142156K-2 Double Convoluted Suspension Air Spring With Safe Height 160MM
142156K-2 Double Convoluted Suspension Air Spring With Safe Height 160MM
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 142156K-2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminum Alloy And Rubber GUOMAT: 142156K-2
Warranty: 12 Months Net Weight: 1.65 KG
Other Name: Air Spring Isolator Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 2.2 KG Flange Ring: With
Connection Method: K Type
High Light:

Double Convoluted Suspension Air Spring

,

Height 160MM Suspension Air Spring

,

142156K-2 Suspension Air Spring

142156K-2 Double Convoluted Suspension Air Spring With Safe Height 160MM For Changing Car

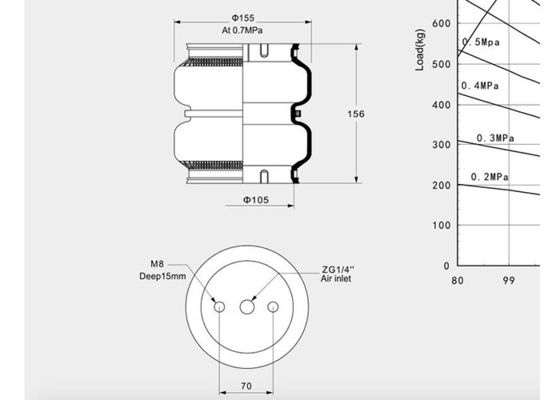

Guomat 142156K-2 Air Spring Specifications:



❶Nut / Blind Nut

The Long Of The Nut:15 mm

Top Cover Plate Screw number: 2 pcs

Bottom Cover Plate Screw number : 2 pcs

Top Cover Plate Screw (Nut) Tooth : M8

Screw Center Distance of Top Cover Plate :70 mm

Bottom Cover Plate Screw (Nut) Tooth : M8

Screw Center Distance of Bottom Cover Plate : 70 mm



❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4



❸ Cover Plate

Top Cover Plate Diameter: 105mm

Bottom Cover Plate Diameter: 105mm



❹Rubber Bellows

Rubber Bellows Natural Diameter : 136 mm

Rubber Bellows MAX Diameter : 155mm

Rubber Bellows Natural Height :156 mm

Stroke:80mm-160mm



❺ Bumper block / Buffer block

Without Bumper Block



❻ Girdle Hoop / Girdle Ring

With Girdle Hoop: one piece of Girdle Hoop





Quick size of Guomat 142156K-2 :



Model Path

0.7Mpa

Max

Capacity
0.2Mpa 0.5Mpa 0.7Mpa
142156K-2 108 155 51 175 240

0.7Mpa

Frequency

Trip Weight
Minimum height Safe height
2.97 80 160 1.65





Technical performance parameter list of Guomat 142156K-2 air spring:

Bearing
load
Power
(kg)
Inflation pressure 0.2MPa 0.3MPa 0.4MPa 0.5MPa 0.6MPa 0.7MPa 0.8MPa 0.7MPa
Volume(dm³)
Installation height
80(mm) 201 311 427 537 670 763 918 0.62
99(mm) 188 287 382 483 597 693 808 0.84
118(mm) 167 256 341 420 509 600 704 0.97
137(mm) 138 173 238 292 340 470 488 1.06
156(mm) 51 98 140 175 207 240 299 1.11
169(mm) 36 60 94 126 162 197 237 1.13
Stiffness and frequency at design height Vertical stiffness(Kg/cm) 37 57 73 80 82 84 91
Stiffness and frequency at design height Natural frequency Hz 4.31 3.83 3.61 3.38 3.15 2.97 2.76
Stiffness and frequency at design height Natural frequency cpm 259 230 217 203 189 179 166





The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects





Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate



Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.



Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.



Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.



Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.



Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.





GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!





  • They almost do not need to maintain.
  • Increase the service life of tires and brake pads.
  • Let you pull anything; Eliminate expensive admission cost.
  • Greatly reduce the breakage of the other vehicle components and maintenance.
  • Back to you in the scrappage, truck and trailer with air suspension is more valuable.
  • Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
  • Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
  • To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
