W02-M58-3019 2M2A Firestone Suspension Air Spring Airstroke Actuator For Automatic Baler

W02-M58-3019 2M2A Firestone Suspension Air Spring Airstroke Actuator For Automatic Baler

  • W02-M58-3019 2M2A Firestone Suspension Air Spring Airstroke Actuator For Automatic Baler
W02-M58-3019 2M2A Firestone Suspension Air Spring Airstroke Actuator For Automatic Baler
Product Details:
Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2M2A
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Strong Carton Box or as Customer's Require
Delivery Time: 2 - 8 Work Days
Payment Terms: T/T, Western Union,Paypal and Others
Supply Ability: 10000 pcs / week
Contact Now
Detailed Product Description
Main Material: Rubber And Plastic Position: Valve Of Processor
Assembly Weight: 0.15 LBS Other Name: Wastewater Processor Actuator
Use: Wastewater Processor OEM 1: G19-4
OEM 2: W02-M58-3019 Rubber Bellows: 2M2A
High Light:

Automatic Baler Suspension Air Spring

,

Airstroke Actuator Suspension Air Spring

,

2M2A Suspension Air Spring

W02-M58-3019 Firestone 2M2A Suspension Air Spring Airstroke Actuator For Automatic Baler


Firestone W02-358-3019
Style 2M2A (2 ply) Blind nuts, 1/8'',
plastic studs W02-358-3019

Firestone:W02 358 3019

Firestone:W023583019

Firestone​ bellows number:2M2A

Min. pressure 0 psi
Return force to min. height: ≤ 10 lbf



Overall weight 0.15 lbs
Overall weight with clamped plates:0.15 kg
Vibration isolation - dynamic characteristic values
Design height H: recommended 45mm, minimum 30mm





Maximum Diameter @ 100 PSIG (inches) 2.3 Design Height 2
Maximum Height (inches) 2.2 40 psig (pounds) 95
Maximum Stroke (inches) 1 60 psig (pounds) 140
Minimum Usable Height (inches) 1.2 80 psig (pounds) 184
1 Inch (pounds) 140 Natural Frequency (@80 psig) (cpm) 210
Maximum Stroke (pounds) 140 800 CPM % 92.6
Applicable Technigram 118 1500 CPM % 98
Material 2-Ply Standard Cord



The following static data sheet is also referred to as air spring load/deflection (L/D) curve.

Pneumatic application – static characteristic values
Force F [lbf]

Pressure p [psi]

40

60

80

100

120

Vol. V [in.3]

Height H [in.]

2.3

61

86.3

114

143

170

4.7

2.0

80.6

115

153

190

225

4.3

1.8

95.5

139

184

228

269

4

1.5

106

155

204

252

299

3.5

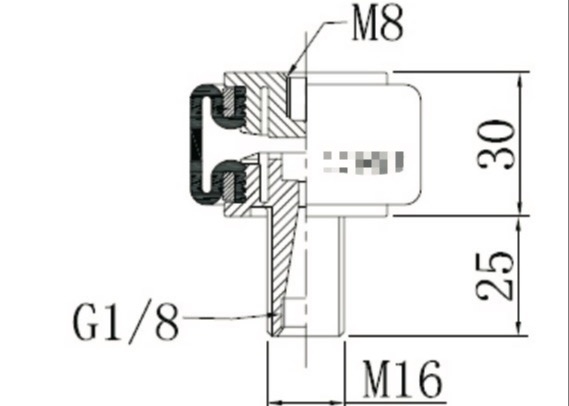

Service instructions M8 = 3-5 Nm M16 = 11-14 Nm G 1/8 = Handtight plus one turn

(Required for Airmount isolator design only)



AirstrokeTM Actuators are used as short-stroke, high-force, single-acting pneumatic actuators. Its unique features make it ideal for frictionless, leak-free, flexible applications




POLYACTUATOR
50-P-10 DO NOT USE 50-P-10 AS AN AIRMOUNT ISOLATOR
70-P-13 DO NOT USE 70-P-13 AS AN AIRMOUNT ISOLATOR
Style Number Design Height Load (at Design Height) at: Natural Frequency % of Isolation at Forced Frequency
    ••40 PSIG (pounds) 60 PSIG (pounds) 80 PSIG (pounds) (@ 80 PSIG) fn(cpm) 400 CPM % 800 CPM % 1500 CPM %
SHAPED SLEEVE
1M1A-0 2.5 210 330 450 220   91.8 97.8
1M1A-1 3.0 235 356 475 162 80.2 95.7 98.8
2M1A DO NOT USE 2M1A AS AN AIRMOUNT ISOLATOR
2M2A 2.0 95 140 184 210   92.6 98.0


W02-M58-3019 2M2A Firestone Suspension Air Spring Airstroke Actuator For Automatic Baler 0W02-M58-3019 2M2A Firestone Suspension Air Spring Airstroke Actuator For Automatic Baler 1W02-M58-3019 2M2A Firestone Suspension Air Spring Airstroke Actuator For Automatic Baler 2
