| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7040 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Firestone: | W01-358-7040 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 6.0 Kg |
| Other Name: | Crimped Air Suspension Spring | Pressure Ability: | 0.2-0.8 M Pa |
| Max OD: | 335.3 MM | Air Fitting Size: | 1/4 OS |
| High Light: | Packaging Machinery Suspension Air Spring,W01-358-7040 Suspension Air Spring,Crimped Suspension Air Spring |
||

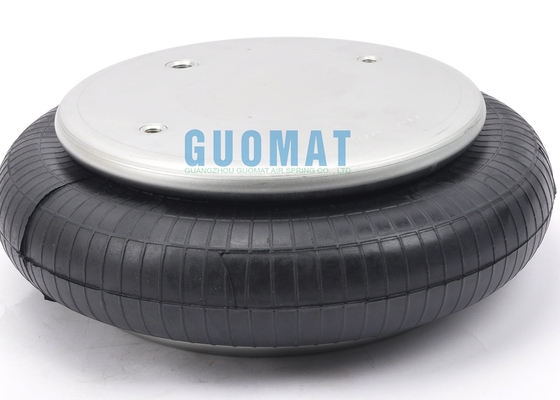

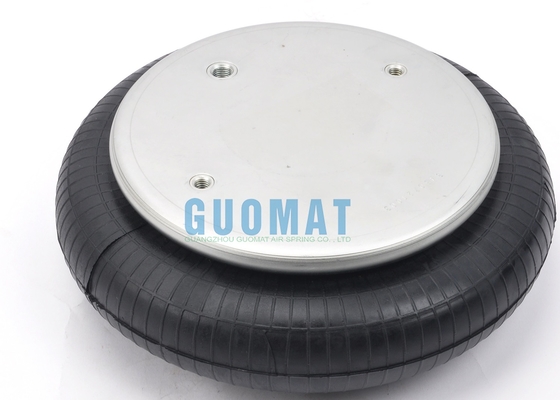

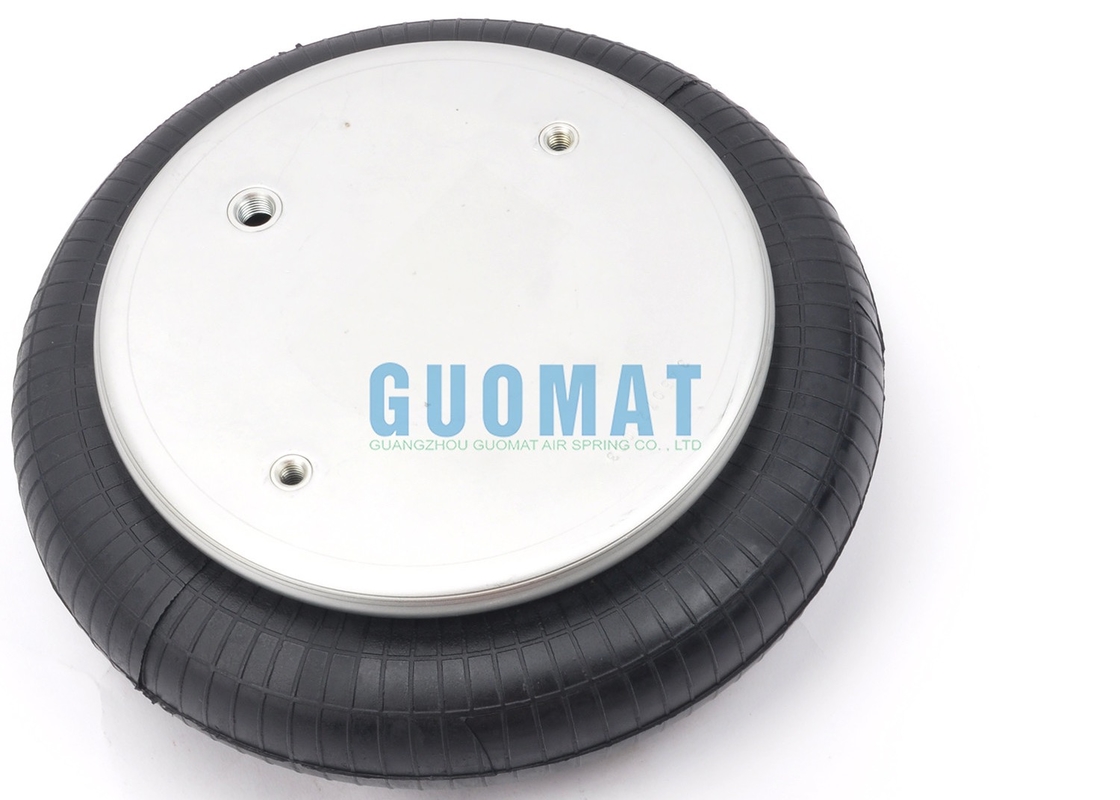

Firestone Suspension Air Spring W01-358-7040 Rubber Style 19-.75 For Packaging Machinery
Description of W01-358-7040 FIRESTONE Air Spring:
The FIRESTONE brand is one of the world's three major brands, as we all know.This air spring is most widely used in medium and large trucks.Some customers also use it on various shock absorption equipment or lifting equipment.The air spring W01-358-7040 is imported from the American brand FIRESTONE.Its skin number is Style 19-.75.This is a real imported thing produced in a factory in Mexico.The quality of the air spring is very good.Many customers use it.After use, it may take several years to replace.
OEM Original Manufacturer:
Firestone: W01-358-7040
Firestone: W01 358 7040
Firestone: W013587040
W01-358-7042,W013587042,WO1-358-7042,WO13587042
Firestone Flexible member:19-.75
Goodyear Part number:1B12-313
Goodyear Part number:1B12 313
Goodyear Part number:1B12313
Top plate hole/stud: 3
Base plate hole/stud: 2
Top plate diameter: 9
Base plate diameter: 9
Folding height: 2.3
Goodyear Flexible member: 578-91-3-301
Goodyear Flexible member: 578 91 3 301
Goodyear Flexible member: 578913301
Piston:-
Piston type: —
Goodyear trim: 1B12313
Neway: 90557226
Specification of Goodyear Air Bags W01-358-7040 FIRESTONE Air Spring:
Top cover diameter: 9.00 inches / 231 mm
Bottom piston number: 3212 or 3183
Diameter of the bottom cover: 9.00 inches / 231 mm
Screw center distance: 157.5 mm
The air hole distance between the nuts is 73 mm

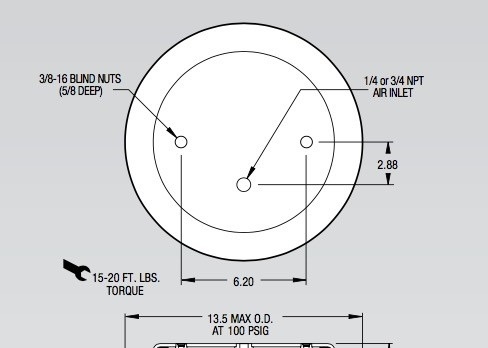

Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
Compression height: 2.12
Maximum diameter (maximum diameter) of rubber bellows: 12.9 inches / 325 mm
Rubber bellows natural diameter 300 mm
Working stroke: maximum 160 mm to minimum 55 mm
Compressed height: 2.12 inches / 105 mm
Air hole/air inlet: 1/4 N P.T.F.
Firestone bellows number: 19

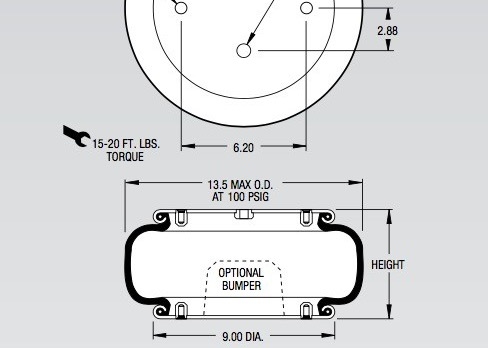

Maximum diameter @ 100 PSIG (inch)
13.5
Maximum height (inch)
5.9
Maximum stroke (inch)
3.7
Minimum usable height (inches)
2.2
Force at 1 inch (lb) stroke @ 80PSI
7040
Force at a stroke of 3 inches (lbs) @ 80PSI
5000
Force at maximum stroke @ 80PSI (pounds)
3250
Material
2-layer standard line
Other similar air spring use the same bellows:
Blind nuts, 1/4 NPT
W01-358-7040;W01-358-7040,W013587040,WO1-358-7040,WO13587040
Blind nuts, 1/4 NPT rubber bumper
W01-358-7039;W01-358-7039,W013587039,WO1-358-7039,WO13587039
Blind nuts, 3/4 NPT
W01-358-7042;W01-358-7042,W013587042,WO1-358-7042,WO13587042
Two Ply Bellows
Blind nuts, 3/4 NPT rubber bumper
W01-358-7043;FS330-14CI3/4NPTOSB
Comparable to: W013587043, W01-358-7043, WO13587043, WO1-358-7043
Counter-sunk steel bead rings, 1 5/8 bolts, nuts, washers
W01-358-6896;W01-358-6896,W013586896,WO1-358-6896,WO13586896
