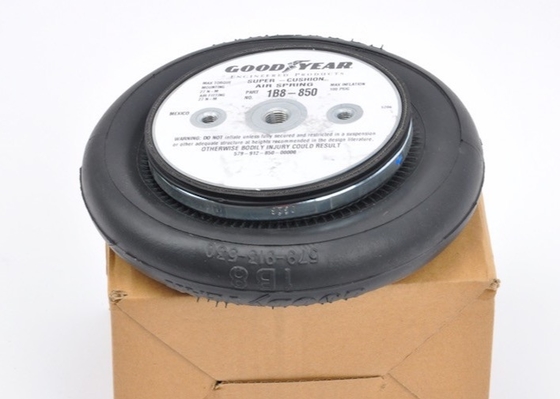

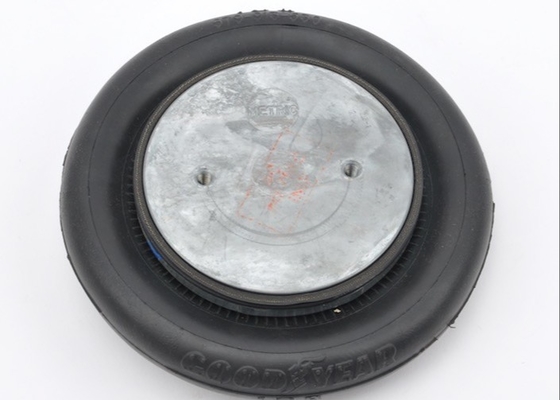

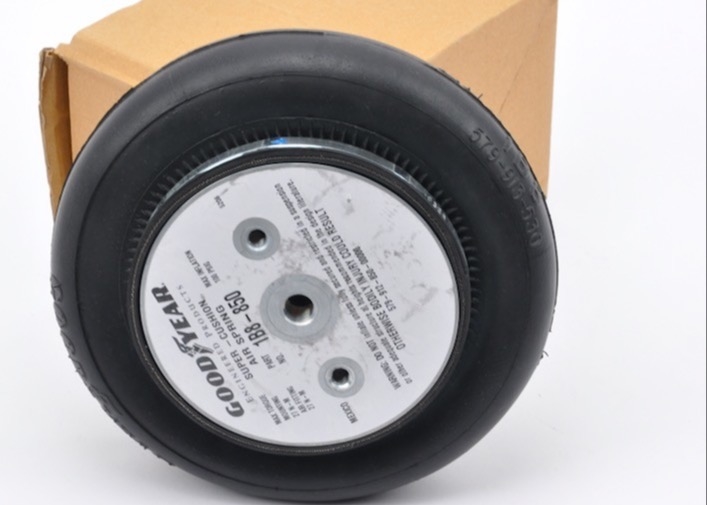

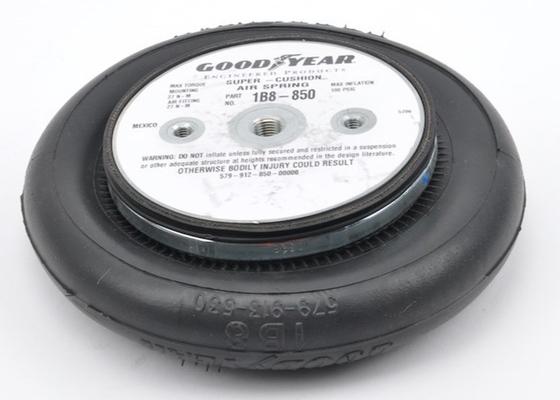

FS120-10 Contitech Air Spring Suspension Repalce By 1B8-850 Bellows 579-91-3-530

Name: FS120-10 Contitech Air Spring Suspension Repalce By 1B8-850 Bellows 579-91-3-530
Brand: Goodyear
SKU: 1B8-850
Rating: 4.7 (141 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	1B8-850

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber And Aluminum Plate	Contitech:	FS120-10
Warranty:	12 Months	Weight:	2.6 Kg
Other Name:	Suspension Air Actuator	Pressure Ability:	0.2-0.8 M Pa
Screw:	2XM8-16UNC	Air Inlet:	1/4 NPT Or 3/4
Goodyear:	1B8-850
High Light:	Contitech Airbag Spring , 2XM8-16UNC Airbag Spring , FS120-10 Air Bellow Suspension

FS120-10 Contitech Air Spring Suspension Repalce by 1B8-850 Bellows 579-91-3-530 Isolators

Instructions of FS120-10 air spring:

To ensure stability, the distance from the floor to the center of gravity of the load should not exceed the shortest distance between the FS120-10 air springs.
The FS120-10 air spring has almost no lateral stability. Therefore, a laterally stable fixation must be added. The path of motion must be guided because the air spring provides almost no lateral stability.
Only pressurize the air spring when it is loaded.
An external extension stopper is required to limit the extension of the FS120-10 air spring, so that it is not easy to damage the air spring.

FS 120-10 OEM Original Equipment Manufacturer:Goodyear 1B8-850

German brand airbag

ContiTech FS 120-10 CI G 1/4

ContiTech FS120-10 CI G 1/4

German ContiTech air spring
1B8-850 Goodyear Air Spring Single Airbag 579913530
Anliding air spring YI-1B8-850 YM-1B8-850 579 913 530
SUPER-CUSHION @ AIR SPRING ISOLATORS 1B8-850

ContiTech ASSEMBLY NUMBER.:FS 120-10 CI G 1/4

ContiTech ASSEMBLY NUMBER.:FS120-10 CI G 1/4

ASSEMBLY NUMBER
Goodyear Air Spring 1B8- 850 Made in Mexico 579-913-530 Made in Mexico
Goodyear original single vibration industrial air spring 1B8-850 air suspension system
Goodyear ASSEMBLY NUMBER.:1B8-550
Goodyear ASSEMBLY NUMBER:1B8-552
Goodyear ASSEMBLY NUMBER.:1B8-553
Goodyear ASSEMBLY NUMBER:1B8- 554

Goodyear ASSEMBLY NUMBER.:1B8 550
Goodyear ASSEMBLY NUMBER:1B8 552
Goodyear ASSEMBLY NUMBER.:1B8 553
Goodyear ASSEMBLY NUMBER:1B8 554

Cross Firestone OEM

Firestone ASSEMBLY NUMBER.:Wo1-M58-6166 Firestone Metric Single Convolution Air Spring
Firestone ASSEMBLY NUMBER.:Wo1-M58-6166,

Firestone ASSEMBLY NUMBER.:Wo1M586166,

Firestone ASSEMBLY NUMBER.:WO1-M58-6166,

Firestone ASSEMBLY NUMBER.:WO1M586166
Firestone actuator WO1-M58-6166, Metric 8 X 1.25 Dark Nut, 1/4 BSP

FS120-10 Product Description

Technical Data

Compressed height
2.01"
Maximum deployment height
5.91"
The maximum diameter
9.09"
Maximum inflation pressure
120 psi
Maximum stroke
3.9"
Inlet type
empire
Air inlet
1/4"
series
C
lowest temperature
-76°F
Maximum temperature
158 degrees F
Bellows type
Single twist
weight
0.2 lbs.

ContiTech Air Spring FS120-10 CI PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi]	40	60	80	100	Vol. V [in.³]
H 4.50 in./114.3MM	728	1130	1570	1970	110
H 4.00 in./101.6MM	905	1400	1940	2390	100
H 3.50 in./88.9MM	1050	1610	2240	2740	90
H 3.00 in./76.2MM	1170	1770	2450	3020	75
H 2.50 in./63.5MM	1270	1900	2630	3260	57

ContiTech Air Spring FS120-10 CI VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
Force (load) F [lbf]	801	1,240	1,700	2,130	2,530	110
Spring rate c [lbf/in]	709	949	1,190	1,430	1,670	110
Natural Frequency f0 [Hz]	2.9	2.8	2.7	2.6	2.6	110
Design height H: recommended 4.33 inch, minimum 3.54 inch
