| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9-273 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | Contitech: | FD 200-25 CI G 1/4 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 3.0kg |
| Other Name: | Contitech Air Bags | Pressure Ability: | 0.2-0.8 M Pa |
| Air Inlet: | G1/4 | Bolts: | Metric 2XM8 |
| Goodyear: | 2B9-273 | ||
| High Light: | Metric Suspension Air Spring,FD 200-25 Contitech Air Bags,Contitech Suspension Air Spring |
||

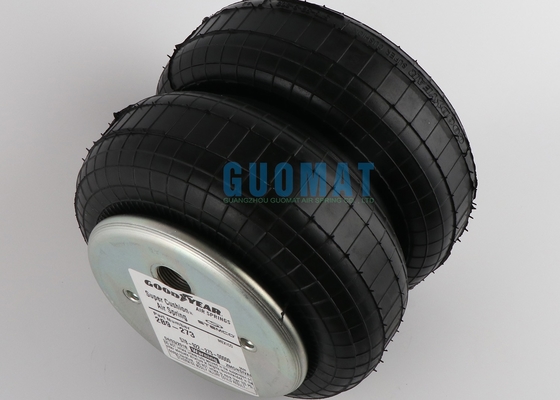

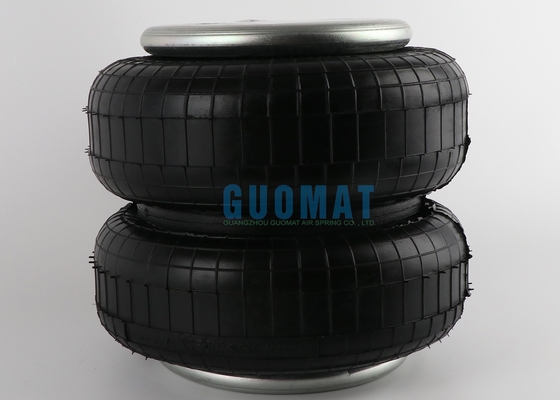

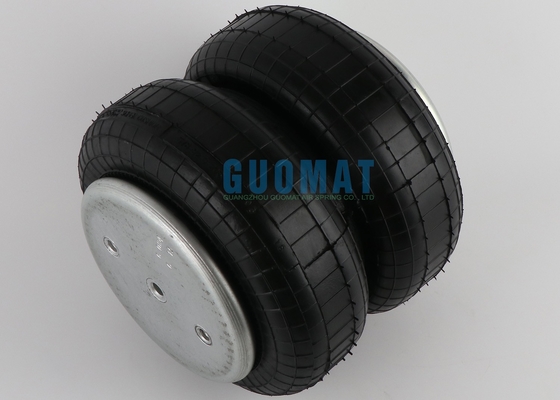

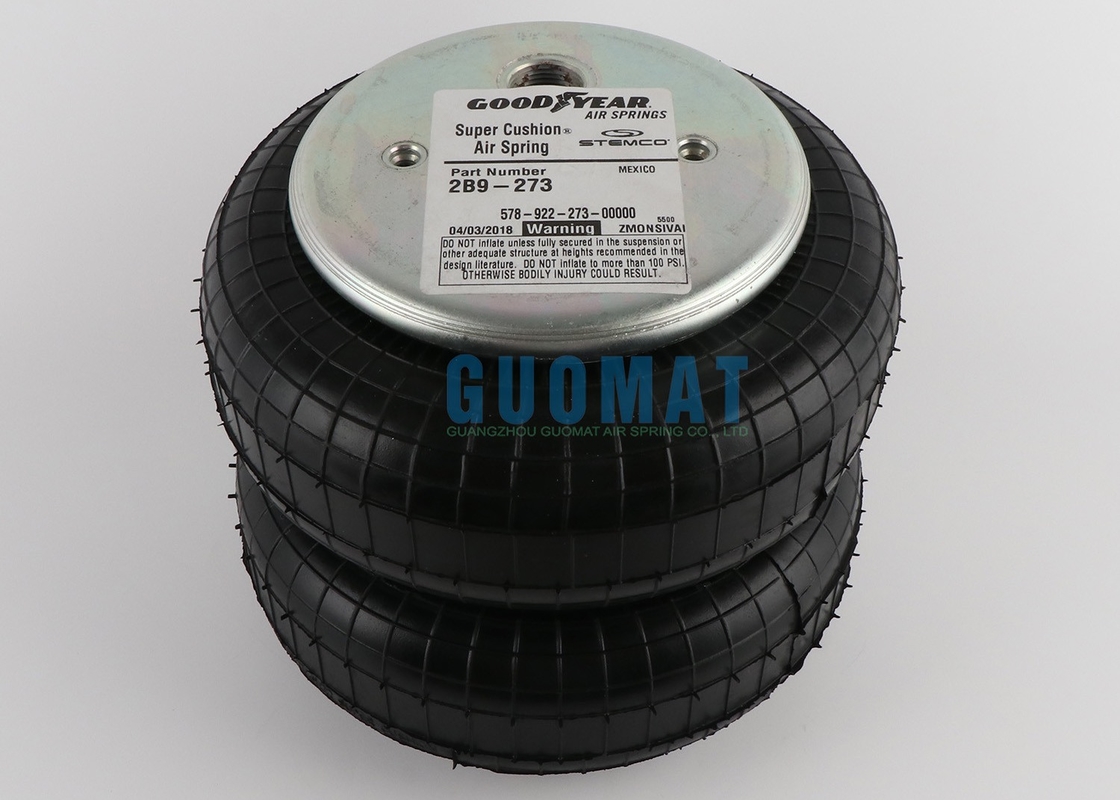

FD 200-25 CI G 1/4 Contitech Air Spring Cross Goodyear 2B9-273 Metric 578-92-3-206
OEM Original Equipment Manufacturer:
Specifications and Technical Data of FD 200-25 CI Cross Goodyear 2B9-273
Contitech Part Number:FD 200-25 CI G 1/4
Contitech Part Number:FD 200 25 CI G 1/4
Contitech Part Number:FD200-25 CI G 1/4
Contitech Part Number:FD200-25
Contitech Part Number:FD 200 25
Contitech Part Number:FD 200-25
ContiTech:FD 200-25 CI G 1/4
Goodyear Part Number: 2B9-273;
Goodyear Part Number:2B9 273;
Goodyear Part Number:12B9273
Goodyear Flex No.: 578-92-3- 202;
Goodyear Flex No.:57892 3 202;
Goodyear Flex No.:578923202
Firestone Part Number:W01-M58-6183
Firestone Part Number:W01-M58-6183
Firestone Part Number:W01-M58-6183
Firestone Part Number:W01-M58-6183,
Firestone Part Number:W01M586183,
Firestone Part Number:WO1-M58-6183,
Firestone Part Number:WO1M586183
Technical Data of FD 200-25 CI Cross Goodyear 2B9-273:
Top cover diameter: 6.31 inches / 160 mm
Number of bottom pistons: 3090
Bottom cover diameter: 6.31 inches / 160 mm
Screw center distance: 89 mm
The distance between the nuts is 44.5 mm
Top cover screw (nut) teeth: 2pcsX M8
Bottom cover screw (nut) teeth: 2pcsX M8
Rubber bellows MAX diameter: 251 mm
Rubber bellows natural diameter 224 mm
Working stroke: up to 260 mm to MIN 75 mm
Air vent / air inlet: 1/4 NPT
Maximum diameter @ 7 Bar (mm)
264
Maximum height (mm)
76
Maximum stroke (mm)
203
Minimum usable height (mm)
279
Force (kN @ 5 Bar at 25 mm stroke)
16.1
The force when the stroke is 50% of the maximum stroke, in kN @ 5 Bar
12.4
Force at maximum stroke, in kN @ 5 Bar
8.9
Material
2-layer standard line
End cap details
Bead plate type
3
dim. A (Blind hole nut center) (mm)
89
dim. B (mm)
73
Air isolator
Design height (mm)
254
Load (at design height): 3 bar (kN)
6.2
Load (at design height): 5 bar (kN)
10.9
Load (at design height): 7 bar (kN)
15.6
Natural frequency (@5 Bar)(fn(Hz)
1.6
Isolation percentage at forced frequency 7 Hz
93.9
Isolation percentage at forced frequency 13 Hz
98.5
Isolation percentage at forced frequency 25 Hz
99.6
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
|
Vibration isolation – dynamic characteristic values:FD 200-25 CI Cross Goodyear 2B9-273 |
|||||||
|
Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
|
Force (Load) [kN] |
5.2 |
7.1 |
9 |
10.7 |
12.4 |
14.5 |
|
|
Spring rate [N/mm] |
79.5 |
103 |
126.5 |
150 |
173.5 |
197 |
5.9 |
|
Natural frequency [Hz] |
2.0 |
1.9 |
1.9 |
1.9 |
1.9 |
1.9 |
|
|
Pneumatic application – static characteristic values:FD 200-25 CI Cross Goodyear 2B9-273 |
||||||||
|
Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
|
|
Height H [mm] |
230 |
4.21 |
5.7 |
7.2 |
8.73 |
10.3 |
12 |
6.4 |
|
200 |
5.8 |
7.78 |
9.74 |
11.7 |
13.8 |
15.9 |
5.7 |
|
|
170 |
6.96 |
9.3 |
11.7 |
14.1 |
16.5 |
19 |
5 |
|
|
140 |
7.86 |
10.5 |
13.2 |
15.8 |
18.5 |
21.3 |
4.1 |
|
|
110 |
8.52 |
11.4 |
14.2 |
17.1 |
19.9 |
22.9 |
3.4 |
|
|
80 |
9.07 |
12 |
15 |
18 |
21 |
24.1 |
2.5 |
|
