| Place of Origin: | Mexico |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B14-372 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Goodyear Bellows NO.: | 578-91-3-351 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 7.0 Kg |
| Other Name: | Contitech Air Suspension | Pressure Ability: | 0.2-0.8 M Pa |
| Contitech: | FS 530-14 CI G 3/4 | Goodyear: | 1B14-372 |
| High Light: | CI G 3/4 Air Lift Helper Bags,Contitech Air Lift Helper Bags,FS 530-14 Air Lift Helper Bags |
||

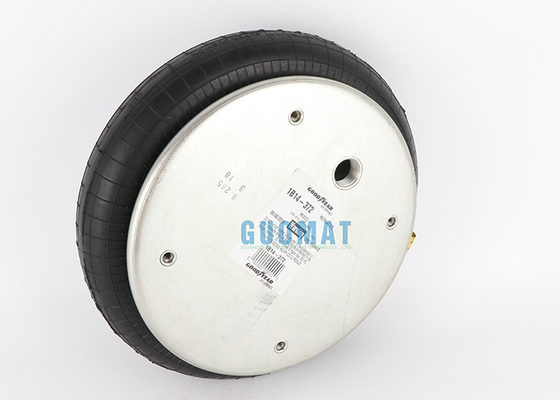

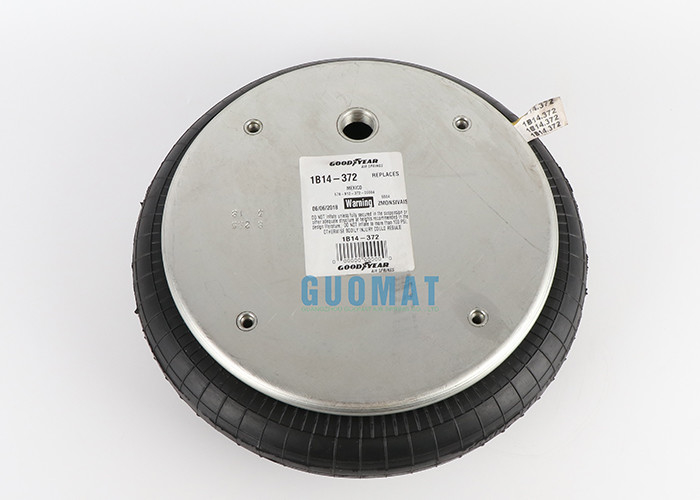

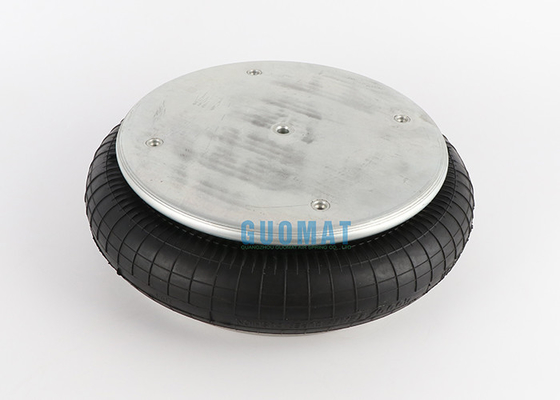

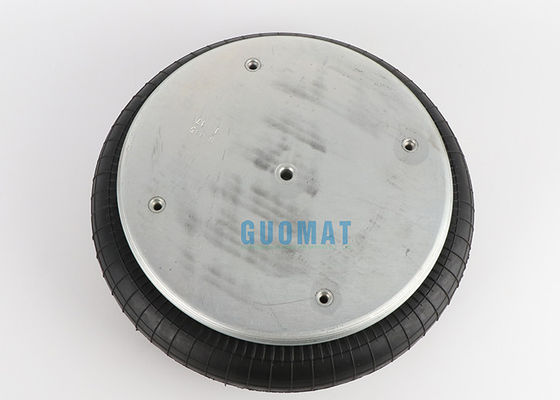

FS 530-14 CI G 3/4 Contitech Suspension Air Spring Single 1B14-372 Goodyear 578-91-3-351
OEM Original Manufacturer:
Goodyear Part Number:1B14-372
Goodyear Part Number: 1B14 372
Goodyear Part Number: 1B14372
Goodyear Bellows Number:578-91-3-372
Goodyear Bellows Number: 578 91 3 372
Goodyear Bellows Number: 578913372
Goodyear Bellows Number: 578-91-3-351
Goodyear Bellows Number: 578 91 3 351
Goodyear Bellows Number: 578913351
Goodyear UPPER BEAD PLATE:ASA-92-8-285
Goodyear UPPER BEAD PLATE:ASA 92 8 285
Goodyear UPPER BEAD PLATE:ASA928285
Goodyear LOWER BEAD PL ATE:ASA-92-6-085
Goodyear LOWER BEAD PL ATE:ASA 92 6 085
Goodyear LOWER BEAD PL ATE:ASA926085
Goodyear FLEXIBL E MEMBER:578-91-3-351
Goodyear FLEXIBL E MEMBER:578 91 3 351
Goodyear FLEXIBL E MEMBER:578913351
Cross OEM
Firestone Part Number:W01-M58-6369
Firestone Part Number:W01 M58 6369
Firestone Part Number:W01 M58 6369
Firestone Part Number:WO1-M58-6369
Firestone Part Number:WO1 M58 6369
Firestone Part Number:WO1 M58 6369
Contitech Part Number:FS 530-14 CI G 3/4
Contitech Part Number:FS530-14 CI G 3/4
Contitech Part Number:FS53014 CI G 3/4
Contitech Part Number:FS 530-14
Contitech Part Number:FS530-14
Contitech Part Number:FS53014
Specifications of FS 530-14 CI G 3/4 Cross 1B14-372 Goodyear:
| Maximum Diameter @ 7 Bar (mm) | Dim. A (Blind Nut Centers) (mm) |
| 404 | 159 |
| Maximum Height (mm) | AIRMOUNT ISOLATOR |
| 51 | Design Height (mm) |
| Maximum Stroke (mm) | 140 |
| 117 | Load (at Design Height) at: 3 Bar (kN) |
| Minimum Usable Height (mm) | 18.5 |
| 168 | Load (at Design Height) at: 5 Bar (kN) |
| Force in kN @ 5 Bar at Stroke of 25 mm | 31.8 |
| 43.8 | Load (at Design Height) at: 7 Bar (kN) |
| Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 45.1 |
| 37.1 | Natural Frequency (@5 Bar)(fn(Hz) |
| Force in kN @ 5 Bar at Stroke of Maximum Stroke | 2.3 |
| 22.2 | % of Isolation at Forced Frequency 7 Hz |
| Style Cross-Ref High Strength Style Number | 86.9 |
| 128-1 | % of Isolation at Forced Frequency 13 Hz |
| Material | 97 |
| 2-Ply Standard Cord | % of Isolation at Forced Frequency 25 Hz |
| END CLOSURE DETAILS | 99.2 |
| Bead plate Type | |
| 2 |
Goodyear Original:1B14-372
Fortunately, we have the opportunity to become one of the world's three major brands of Goodyear China regional agents, for the world's three major brand product quality we are affirmed. They are also our example has been learning in China, we are also trying to do their own brand of air spring product quality. Because we are Goodyear agents, and therefore also give customers more choices.
The usual below kinds of Goodyear air spring we have:
| GUOMAT Number | Assembly Number | Max OD @100 PSIG (Inches) | Design Load Range (pounds) | Design Height Range (Inches) | Usable Stroke (Inches) | Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper Included | Approximate Isolation Percent | Air Fitting Size (Inches) | |||
| For a Distributing Frequency Of: | |||||||||||||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | ||||||||||
| 1B12 301 | 1B12-301 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 1/4 OS |
| 1B12 304 | 1B12-304 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12 305 | 1B12-305 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12 313 | 1B12-313 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 1/4 OS |
| 1B14 350 | 1B14-350 | 15.2 | 1,900 - 11,900 | 4.0 - 5.25 | 4.9 | 2.3 | 7.2 | NO | 86 | 96 | 98 | 99 | 1/4 OS |
| 1B14 351 | 1B14-351 | 15.2 | 1,900 - 11,900 | 4.0 - 5.25 | 3 | 4.2 | 7.2 | YES | 86 | 96 | 98 | 99 | 1/4 OS |
| 1B14 352 | 1B14-352 | 15.2 | 1,900 - 11,900 | 4.0 - 5.25 | 4.9 | 2.3 | 7.2 | NO | 86 | 96 | 98 | 99 | 3/4 OS |
| 1B14 353 | 1B14-353 | 15.2 | 1,900 - 11,900 | 4.0 - 5.25 | 3 | 4.2 | 7.2 | YES | 86 | 96 | 98 | 99 | 3/4 OS |
| 1B14 362 | 1B14-362 | 15.9 | 2,200 - 13,500 | 3.25 - 5.25 | 6 | 2.3 | 8.3 | NO | 87 | 97 | 98 | 99 | 3/4 OS |
| 1B14 64 | 1B14-364 | 15.9 | 2,200 - 13,500 | 3.25 - 5.25 | 6 | 2.3 | 8.3 | NO | 87 | 97 | 98 | 99 | 1/4 OS |
| 1B15 375 | 1B15-375 | 17.5 | 2,200 - 13,700 | 4.4 - 5.4 | 5.6 | 2.3 | 7.9 | NO | 91 | 97 | 98 | 99 | 1/4 OS |
| 1B15 376 | 1B15-376 | 17.5 | 2,200 - 13,700 | 4.4 - 5.4 | 3.7 | 4.2 | 7.9 | YES | 91 | 97 | 98 | 99 | 1/4 OS |
| 1B15 377 | 1B15-377 | 17.5 | 2,200 - 13,700 | 4.4 - 5.4 | 5.6 | 2.3 | 7.9 | NO | 91 | 97 | 98 | 99 | 3/4 OS |
| 1B15 378 | 1B15-378 | 17.5 | 2,200 - 13,700 | 4.4 - 5.4 | 3.7 | 4.2 | 7.9 | YES | 91 | 97 | 98 | 99 | 3/4 OS |
| 1B5 500 | 1B5-500 | 5.7 | 210 - 1,350 | 2.5 - 3.0 | 2 | 1.8 | 3.8 | NO | 72 | 94 | 96 | 98 | 1/4 C |
| 1B5 502 | 1B5-502 | 5.7 | 210 - 1,350 | 2.5 - 3.0 | 2 | 1.8 | 3.8 | NO | 72 | 94 | 96 | 98 | 3/4 C |
| 1B5 503 | 1B5-503 | 5.7 | 210 - 1,350 | 2.5 - 3.0 | 2 | 1.8 | 3.8 | NO | 72 | 94 | 96 | 98 | 1/4 TV |
| 1B5 510 | 1B5-510 | 6 | 190 - 1,500 | 2.5 - 4.0 | 3 | 1.8 | 4.8 | NO | 82 | 96 | 97 | 99 | 1/4 C |
| 1B5 512 | 1B5-512 | 6 | 190 - 1,500 | 2.5 - 4.0 | 3 | 1.8 | 4.8 | NO | 82 | 96 | 97 | 99 | 3/4 C |
| 1B5 520* | 1B5-520* | 6.5 | 190 - 1,500 | 3.5 - 5.0 | 3.0* | 1.8 | 5.8 | NO | 83 | 96 | 97 | 99 | 1/4 C |
| 1B5 521* | 1B5-521* | 6.5 | 190 - 1,500 | 3.5 - 5.0 | 3.0* | 1.8 | 5.8 | NO | 83 | 96 | 97 | 99 | 3/4 C |
| 1B6 530 | 1B6-530 | 6.5 | 280 - 1,900 | 3.0 - 4.0 | 2.8 | 2 | 4.8 | NO | 78 | 95 | 97 | 98 | 1/4 C |
| 1B6 531 | 1B6-531 | 6.5 | 280 - 1,900 | 3.0 - 4.0 | 2.8 | 2 | 4.8 | NO | 78 | 95 | 97 | 98 | 1/4 OS |
| 1B6 532 | 1B6-532 | 6.5 | 280 - 1,900 | 3.0 - 4.0 | 2.5 | 2.3 | 4.8 | YES | 78 | 95 | 97 | 98 | 1/4 OS |
| 1B6 535 | 1B6-535 | 7 | 250 - 2,200 | 4.0 - 6.0 | 3.4* | 2 | 7.1 | NO | 90 | 97 | 98 | 99 | 1/4 C |
| 1B6 536* | 1B6-536* | 7 | 250 - 2,200 | 4.0 - 6.0 | 3.4* | 2 | 7.1 | NO | 90 | 97 | 98 | 99 | 1/4 OS |
| 1B6 538* | 1B6-538* | 7 | 250 - 2,200 | 4.0 - 6.0 | 3.4* to 3.1* | 2.3 | 7.1 | YES | 90 | 97 | 98 | 99 | 1/4 OS |
| 1B7 540 | 1B7-540 | 7.7 | 140 - 2,200 | 3.5 - 4.5 | 3.2 | 2 | 5.2 | NO | 83 | 96 | 97 | 99 | 1/4 C |
| 1B7 541 | 1B7-541 | 7.7 | 140 - 2,200 | 3.5 - 4.5 | 3.2 | 2 | 5.2 | NO | 83 | 96 | 97 | 99 | 1/4 OS |
| 1B7 542 | 1B7-542 | 7.7 | 140 - 2,200 | 3.5 - 4.5 | 2.9 | 2.3 | 5.2 | YES | 83 | 96 | 97 | 99 | 1/4 OS |
| 1B8 550 | 1B8-550 | 8.7 | 320 - 2,900 | 3.75 - 4.75 | 3.3 | 2 | 5.3 | NO | 83 | 96 | 97 | 99 | 1/4 C |
| 1B8 552 | 1B8-552 | 8.7 | 320 - 2,900 | 3.75 - 4.75 | 3.3 | 2 | 5.3 | NO | 83 | 96 | 97 | 99 | 3/4 C |
| 1B8 553 | 1B8-553 | 8.7 | 320 - 2,900 | 3.75 - 4.75 | 3.3 | 2 | 5.3 | NO | 83 | 96 | 97 | 99 | 1/4 OS |
| 1B8 554 | 1B8-554 | 8.7 | 320 - 2,900 | 3.75 - 4.75 | 3 | 2.3 | 5.3 | YES | 83 | 96 | 97 | 99 | 1/4 OS |
| 1B8 560* | 1B8-560* | 9.4 | 180 - 3,300 | 4.0 - 6.5 | 3.2* | 2 | 6.7 | NO | 85 | 96 | 97 | 99 | 1/4 C |
| 1B8 562* | 1B8-562* | 9.4 | 180 - 3,300 | 4.0 - 6.5 | 3.2* | 2 | 6.7 | NO | 85 | 96 | 97 | 99 | 3/4 C |
| 1B8 563* | 1B8-563* | 9.4 | 180 - 3,300 | 4.0 - 6.5 | 3.2* | 2 | 6.7 | NO | 85 | 96 | 97 | 99 | 1/4 OS |
| 1B8 564* | 1B8-564* | 9.4 | 180 - 3,300 | 4.0 - 6.5 | 3.2* to 2.9* | 2.3 | 6.7 | YES | 85 | 96 | 97 | 99 | 1/4 OS |
| 1B9 201 | 1B9-201 | 11 | 640 - 3,900 | 4.5 - 5.0 | 2.7 | 3.2 | 5.9 | YES | 84 | 96 | 97 | 99 | 1/4 OS |
| 1B9 202 | 1B9-202 | 11 | 640 - 3,900 | 4.5 - 5.0 | 3.6 | 2.3 | 5.9 | NO | 84 | 96 | 97 | 99 | 1/4 OS |
| 1B9 204 | 1B9-204 | 11 | 640 - 3,900 | 4.5 - 5.0 | 3.6 | 2.3 | 5.9 | NO | 84 | 96 | 97 | 99 | 1/2 OS |
| 1B9 205 | 1B9-205 | 11 | 640 - 3,900 | 4.5 - 5.0 | 2.7 | 3.2 | 5.9 | YES | 84 | 96 | 97 | 99 | 1/2 OS |
| 1B9 207 | 1B9-207 | 11 | 640 - 3,900 | 4.5 - 5.0 | 3.6 | 2.3 | 5.9 | NO | 84 | 96 | 97 | 99 | 3/4 OS |
| 1B9 208 | 1B9-208 | 11 | 640 - 3,900 | 4.5 - 5.0 | 2.7 | 3.2 | 5.9 | YES | 84 | 96 | 97 | 99 | 3/4 OS |
