Place of Origin: | Guangdong,China |
Brand Name: | Goodyear |
Certification: | ISO/TS16949:2009 |
Model Number: | 3B12-300 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01-358-8008 |
---|---|---|---|
Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
Screw Center Distance: | 157.5 Mm | Cover Plate Diameter: | 228.6 Mm |
Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 120~457 Mm |
Net Weight: | 7.5 Kg | Package Size: | 33 X 33 X 22 Cm |
Goodyear: | 3B12-300 | Goodyear Bellows: | 578-93-3-100 |
High Light: | W01-358-8008 Firestone Air Springs,1/4NPTF Gas Hole Air Bag Helper Springs,Goodyear Air Ride Air Bags |
W01-358-8008 Firestone Air Springs Refer to Goodyear 3B12-300 Suspension Lifting Bags
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-300
3B12-300 Cross others OEM
Goodyear Trim: 3B12300
Flexible members: 578-93-3-100
Firestone: 8008
Firestone: 8025
Triangle spring: 4431
Triangle spring: 4469
By E-Z: 8030155
Neway: 57008008
Reedwell: 1003588008C
batco: 10-98008
UCF / Impex: AB-3B12-300
T.W. Distribution: AB8008
Ultraman: ABSP3B22R-8008
Watson & Chalin: AS0019
Dallas Spring: AS8008
Midland / Haldex: CS312300
Euclidean/Meritor Aftermarket: E-FS8008
Euclidean/Meritor Aftermarket: E-FS8025
Euclid / Meritor Aftermarket: FS8008
Euclid / Meritor Aftermarket: FS8025
Kangdi Technology: FT330-29431
Kangdi Technology: FT330-29469
BWP: M-3553
Leland: SC2130
Goodyear Trim: | 3B12-300;3B12 300;3B12300 |
Flexible members:
|
578-93-3-100;578 93 3 100;578933100 |
AUTOMANN | ABSP3B22R-8008 ABSP3B22R-8025 |
HENDRICKSON | B-11637;B 11637;B11637 |
CONTI CONTITECH |
64562 FT 330 29 431 FT33029431 64562, FT330-29CS1/4NPTB |
LOAD GUARD | SC2130 |
RIDEWELL | 1003588008C |
DAYTON | 354-8008;354 8008;3548008 |
TRIANGLE |
4431 4469 |
FIRESTONE |
W013588010 W013588008 W013588025
W013588008, W01-358-8008, WO13588008, WO1-358-8008
|
TRP |
AS80080
|
WATSON & CHALIN | AS-0019;AS 0019;AS0019 |
3B12-300 Goodyear technical parameters:
❶Nut/blind nut
Top plate screw (nut) tooth: 1 X 3 / 8-16UNC
Top plate screw (nut) tooth: 1 X stud-3/4-16
The screw center distance of the top cover plate: 140 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
The screw center distance of the bottom cover plate: 157.5 mm
❷Air hole/air inlet/air fitting
Air hole/air inlet: 1 / 4-18NPTF
The screw center distance between the air hole and the nut: 73 mm
❸cover
Top plate diameter: 228.6 mm
Diameter of bottom cover: 228.6 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 330 mm
Natural diameter of rubber bellows: 300 mm
Working stroke: minimum 120 mm to maximum 457 mm
Maximum height: 457 mm
Minimum height: 120 mm
Stroke height: 179mm
❺Bumper block/bumper block
No bumper
❻Belt loop/Belt loop
Attached belt: a belt
Compressed height
4.33"
Maximum deployment height
16.9"
The maximum diameter
12.8"
Maximum inflation pressure
120 psi
Maximum stroke
12.57"
Inlet type
empire
Air inlet
1/4"
series
C
lowest temperature
-76°F
Maximum temperature
158 degrees F
Bellows type
Triple convolution
weight
15 pounds.
Internal bumper
Yes

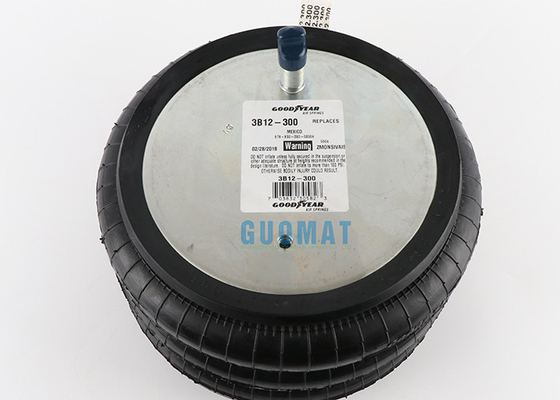

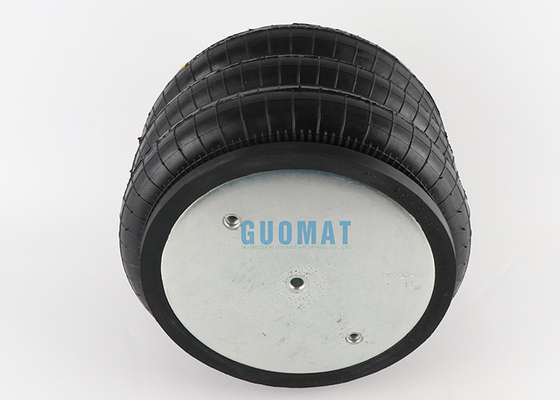

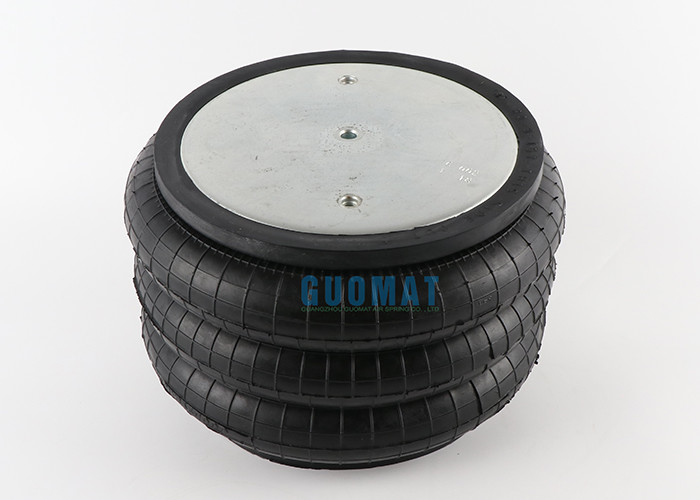

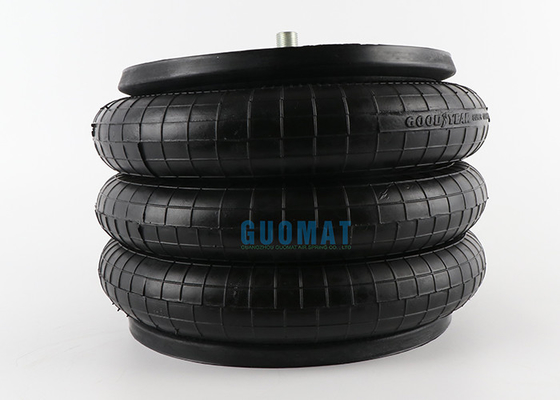

The detail photos of Goodyear 3B12-300:
Other kind of Goodyear Air Bellows:
3B12-300 | 57893230000000 | 20094938 | Y | 3B12-300 |
3B12-300 Bellows Air Spring | 3B12-300 | 20035817 | N | 3B12-300 Bellows Air Spring |
3B12-301 | 57893230100000 | 20094943 | Y | 3B12-301 |
3B12-301 Bellows Air Spring | 3B12-301 | 20094947 | N | 3B12-301 Bellows Air Spring |
3B12-303 | 57893230300000 | 20094948 | Y | 3B12-303 |
3B12-303 Bellows Air Spring | 3B12-303 | 20035819 | N | 3B12-303 Bellows Air Spring |
3B12-304 | 57893230400000 | 20054271 | Y | 3B12-304 |
3B12-304 Bellows Air Spring | 3B12-304 | 20035820 | N | 3B12-304 Bellows Air Spring |
ENIDINE YI-3B12-304 | 57893230400019 | 20094956 | Y | ENIDINE YI-3B12-304 |
3B12-305 | 57893230500000 | 20094959 | Y | 3B12-305 |
3B12-305 Bellows Air Spring | 3B12-305 | 20094960 | N | 3B12-305 Bellows Air Spring |
ENIDINE YI-3B12-305 | 57893230500019 | 20094961 | Y | ENIDINE YI-3B12-305 |
3B12-308 | 57893230800000 | 20094966 | Y | 3B12-308 |
3B12-308 | 3B12-308 | 20099073 | N | 3B12-308 |
ENIDINE YI-3B12-308 | 57893230800019 | 20094967 | Y | ENIDINE YI-3B12-308 |
