| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 1T8619 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | Firestone Rubber Bellows NO.: | 1T17-8.3 |
|---|---|---|---|
| Firestone: | W01-M58-8619 | GOODYEAR: | 1R11-701 |
| Other Name: | Air Shock Suspension | Taurus: | KR730-01 |
| BPW: | BPW 30 | WABCO: | 9518117620 |
| Phoenix: | 1DK21 | Dunlop: | FR D11B30 |
| High Light: | Goodyear 1R11-701 Suspension Air Spring,W01-M58-8619 Suspension Air Spring,Dunlop FR D11B30 Suspension Air Spring |
||

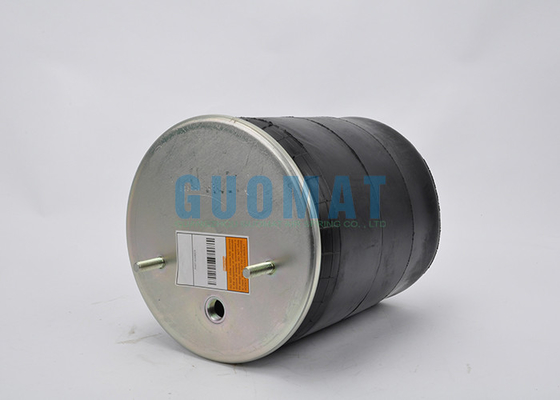

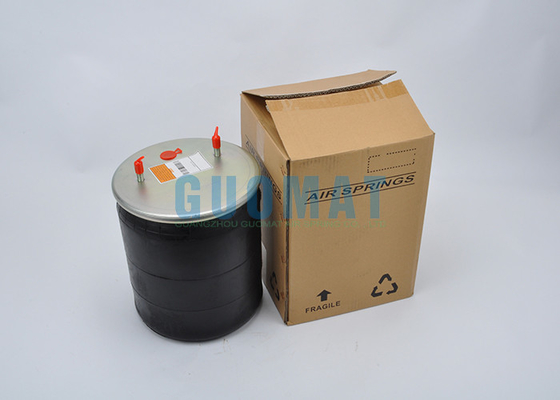

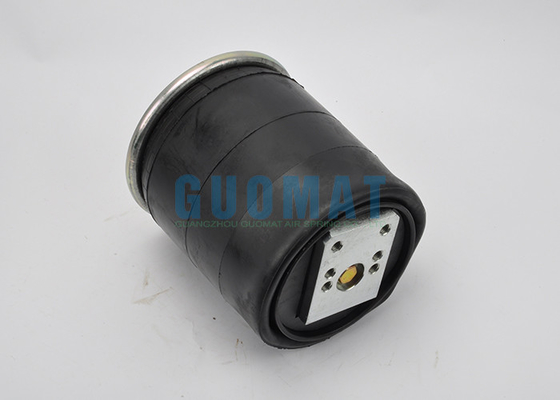

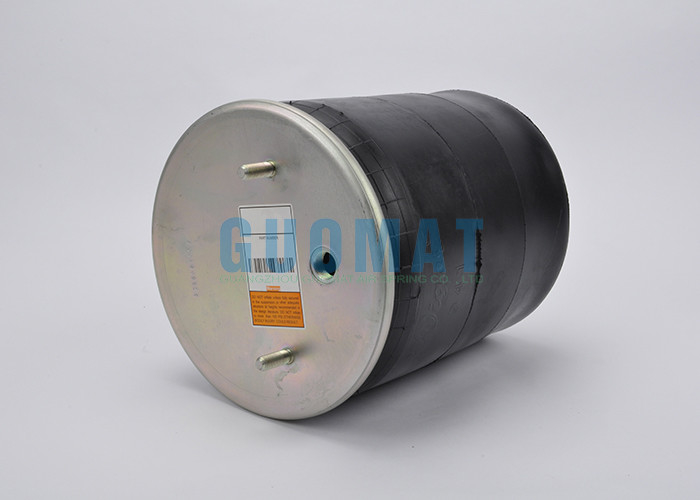

Goodyear 1R11-701 Suspension Air Spring Phoenix 1DK21 Dunlop FR D11B30 M12 Bolts
GUOMAT 1T8619 Spring System to BPW 30
| Cross References | Vehicles OEM References |
| GUOMAT 1T8619 | Granning : 15918 |
| FIRESTONE W01 M58 8619 W01M588619; W01-M58-8619; |
WABCO : 951 811 762 0 |
|
FIRESTONE Bellows 1T17-8.3; 1T 17-8.3 |
Pirelli : 1TC 300-36 1TC300-36 |
| Phoenix: 1 DK 21 | BPW Type : BPW 30 |
| Taurus : KR 730-01 KR730-01 |
BPW: 05.429.40.28.1 |
| Dunlop FR : D11B30 | CONTITECH 941 MB; 941MB |
| Goodyear : 1R11-701 1R11 701 1R11701 |
CONTINENTAL
941 MB/ BPW 30
DUNLOP FRANCE
D11 B30
FIRESTONE REF.
W01 M58 8619
STYLE NO.
1T17D-8.3
GOODYEAR
1R11-701
GRANNING
15918
PHOENIX
1 DK21
PIRELLI
1TC300-36
TAURUS
UR 730-01
UC
P1393
WABCO
951 811 762 0
AIRTECH
130222
AIRTECH PROD. NO.
3941K
AUTOMINT
6010
BLACKTECH
RML 7052 C
CF GOMMA
1 TC 300-36/ 205170
0542940361 0542943200 0542940101 0542940281
BPW 05.429.40.30.1 05.429.43.20.0 05.429.41.24.1 05.429.40.09.1 05.429.40.34.0 05.801.09.73.0 05.429.42.18.0 05.429.40.28.1 05.429.42.18.1
Weight 9.78kg
Space required 325mm
Loading cap.at 5.0bar 2.3kn
Loading cap.At7.0bar 28.5kn
GUOMAT 1T8619 Technical parameters
❶ screw bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12
Distance Between Stud and Central axis : 25 mm
❷ Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : M22x1.5.
Distance Between Gas Hole and Stud :48 mm
Distance Between Stud and Central axis : 73 mm
❸ Cover Plate
Top Cover Plate Diameter: Ø259 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 300 mm
Rubber Bellows MAX Height : 610mm
Rubber Bellows MIN Height : 285mm
Design height 360mm
Working stroke 325mm
❺ Bumper block / Buffer block
Bumper Block height :41mm
❻ Bottom Piston
Bottom Piston Diameter : Ø205mm
Bottom Piston Height :193 mm
❼ Piston Bolt
Piston Bolt Tooth : M16 X2.0
6 pieces of Bolt
Middle inside between center Bolt : 70 mm
Inside the most close Bolt :20 mm
Inside and the beside Bolt: 60 mm
GUOMAT 1T8619 Air Suspension Spring with other kind numbers
| Contitech | Firestone | Goodyear | Phoenix | Dunlop FR | CF Gomma | Taurus |
| 941 MB | W01-M58-8619 | 1R11-701 | 1DK 21 | D 11B 30 | 1TC 300-36 | 1TC 300-36 |
| 941 MB | W01-M58-8620 | 1R11-700 | 1DK 21 | D 11U 30 | 1TC 300-36 | UR 7300-1T |
Truck Air springs can fit for the below trucks
DAF Truck
Mercedes Truck
French car Truck
Scania Truck
VOL-VO Truck
ERF Truck
Foden Truck
IVE-CO Truck
MAN Truck
and so on
