| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 1T8644 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |

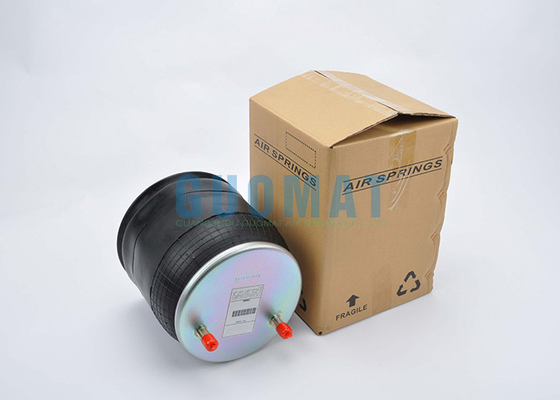

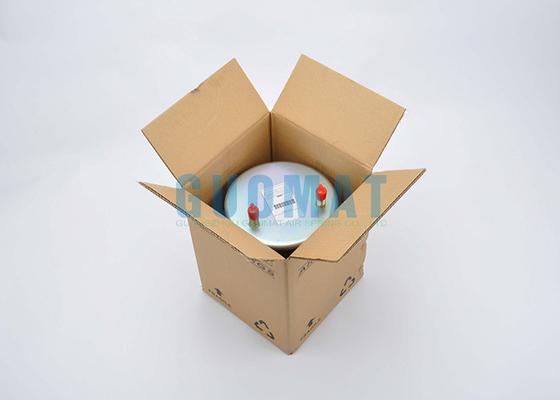

| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | Firestone Rubber Bellows NO.: | 1TTW-6 |
|---|---|---|---|
| Firestone: | 1T15MB | GOODYEAR: | / |
| Other Name: | Air Shock Suspension | Hendrickson: | S-23721 |
| Intraax Series: | AA 250L | Bellow NO.: | 1V15M-8 |
| GUOMAT: | 1T8644 | ||
| High Light: | Firestone W01-455-8644 Suspension Air Spring,1TTW-6 Suspension Air Spring,Hendrickson S-23721 Suspension Air Spring |
||
Firestone W01-455-8644 Suspension Air Spring 1TTW-6 Hendrickson S-23721
GUOMAT 1T8644 Suspension Air Spring :
| Cross References | Vehicles OEM References |
| GUOMAT 1T8644 | Hendrickson S-23721 |
| FIRESTONE W01-455-8644 | |
|
FIRESTONE Bellows 1TTW-6 |
Hendrickson S 23721 |
GUOMAT 1T8644 Technical parameters
❶ screw bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12
Distance Between Stud and Central axis : 25 mm
❷ Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : M22x1.5.
Distance Between Gas Hole and Stud :48 mm
Distance Between Stud and Central axis : 73 mm

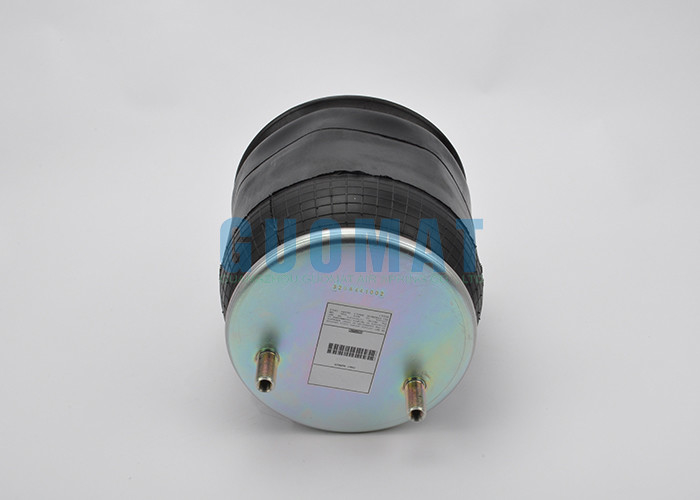

❸ Cover Plate
Top Cover Plate Diameter: Ø259 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 300 mm
Rubber Bellows MAX Height : 610mm
Rubber Bellows MIN Height : 285mm
Design height 360mm
Working stroke 325mm
❺ Bumper block / Buffer block
Bumper Block height :41mm

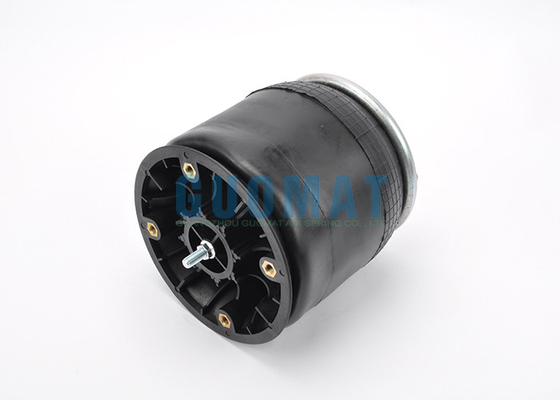

❻ Bottom Piston
Bottom Piston Diameter : Ø205mm
Bottom Piston Height :193 mm
❼ Piston Bolt
Piston Bolt Tooth : M16 X2.0
6 pieces of Bolt
Middle inside between center Bolt : 70 mm
Inside the most close Bolt :20 mm
Inside and the beside Bolt: 60 mm
| Fitment Type: | Direct Replacement | Size: | Single Dimension(CM) 42.00(Length)*30.00(Width)*30.00(Height) |
| Single Weight(KG): | 13.400 | Upper Mounting Isolator Included: | No Isolator Required |
| Lower Mounting Isolator Included: | No Isolator Required | Upper Mount Type: | Stud |
| Lower Mount Type: | Stud | Included Hardware: | None |
| Drive Layout: | Universal | Platform: | Universal |
| Custom Bundle: | Yes | Material: | Iron,Aluminium Alloy,Rubber |
| Quantity: | Pair | Manufacturer Warranty: | 1 Year |
| OE Spec or Performance/Custom: | OE Spec | Adjustable: | Yes |
| Features: | Sealed | Brand: | Guomat or Netural |
| UPC: | Does not apply | Manufacturer Part Number: | 1T8644 |
