| Place of Origin: | GUANGZHOU CHINA(MAIN LAND) |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T8829 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | ＄59 |
| Packaging Details: | CARTON/CARTONS |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C,PayPal |
| Supply Ability: | 1000 |
| TYPE: | ROLLING LOBE AIR SPRING | GUOMAT NUMBER: | 1T8829 |
|---|---|---|---|
| MATERIAL: | NATRAL RUBBER | PACKAGE: | STRONG CARTONS |
| MODEL: | TRUCK | WARRANTY: | 12 MONTHS |
| CONDITION: | NEW | FIRESTONE: | W01-358-8829 |
| Bellows Number: | 1T15M-6 | ||
| High Light: | W01-358-8829 Suspension Air Spring,1R12-405 Suspension Air Spring,Triangle Suspension Air Spring |
||

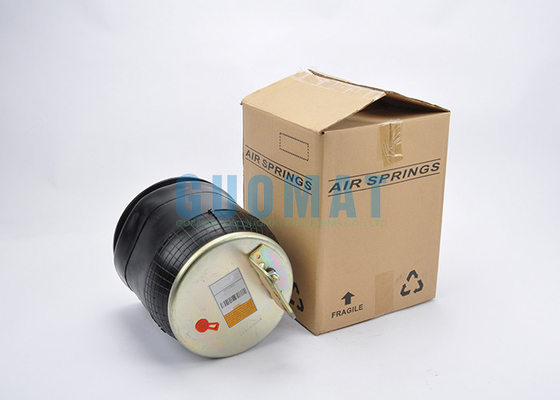

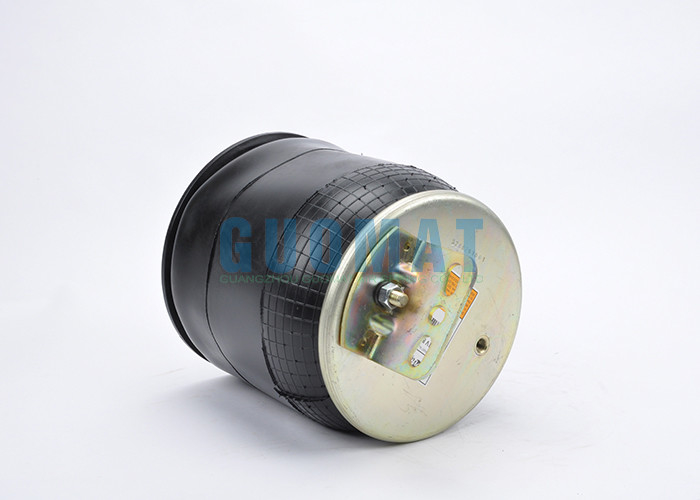

FIRESTONE W01-358-8829 Suspension Air Spring GOODYEAR 1R12-405 TRIANGLE 8449
OEM REFERENCES
FIRESTONE Bellows Number :1T15M-6 /
FIRESTONE Bellows Number :1T15M 6 /
FIRESTONE Bellows Number :1T15M6
FIRESTONE Part Number :W01-358-8829 /
FIRESTONE Part Number :W01 358 8829 /
FIRESTONE Part Number :W013588829
CONTITECH 9 10-16 P 449 / 910-16P449 / 91016P449
GOODYEAR 1R12-405 / 1R12 405 / 1R12405
GOODYEAR Bellows Number 566-24-3-097 / 566 24 3 097 / 566243097
GOODYEAR 1S12-002 / 1S12 002 / 1S12002
GOODYEAR Bellows Number 566-24-1-008 / 566 24 1 008 / 566241008
GOODYEAR 1S12-035 / 1S12 035 / 1S12035
GOODYEAR 1R12615
AIRTECH 38829KPP
TRIANGLE 8449 6363
TRIANGLE PART NUMBER: 8449
TRIANGLE BELLOWS NUMBER: 6363
| Firestone | Airtech |
| W01-358-8829 | : 28829KPP |
| : 1T15M-6 | : 137212 |
| Goodyear | LoadGuard |
| : 1R 12-405 | SC 2757 |
| : 566243097 | Note : Bracket # 6027 |
| : 1R12-615 | Triangle |
| 1S 12-002 | : 8449/6363 |
| Contitech | VOL-VO |
| :910-16P449 | :_ 3934699 |
| 8079902 |
VEHICLE OEM REFERENCES
VOL-VO 3934699
VOL-VO 8079902
VOL-VO 20413888
VOL-VO 8097092
VOL-VO 8084296
VOL-VO 20505399
VOL-VO 20396293
Product Information
| Type: | Rolling Lobe Air Spring | Guomat No.: | 1T8829 |
| Material: | Natural Rubber | Package: | Strong Cartons |
| Model: | Truck | Warranty: | 12 Months |
| Position: | The Floating Bridge | Place Of Origin: | Guangzhou China(Main Land) |
| Condition:: | New | Situation | With Piston |
Technical Parameters
Extension height: 20.00
Compressed height: 6.10
Top plate width: 9.00
Piston width: 10.00
Bolt or stud 1/2-13
Threaded hole in bead plate 3/8-16 blind nut 1/2-13 in piston
Air inlet 1/4 N.P.T.
The external thread of the combined stud/intake stud is 3/4-16 stud
The internal thread (air inlet) is 1/4 N.P.T.
Flint 8829
Piston number 4008
Top plate number 3254
The warranty period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provide high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
