| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 1T8966 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber ,Steel ,Aluminum | Bellows: | 1T66F-10.8 |
|---|---|---|---|
| FIRESTONE: | W01-M58-8966 | GOODYEAR: | 1R14-781 |
| CF GOMMA: | 1 TC 360-45 | TAURUS KR: | 836-05 |
| Granning: | 15903 | CONTITECH: | 881 MB |
| High Light: | Firestone 1T66F-10.8 Suspension Air Spring,W01-M58-8966 Suspension Air Spring,1R14-781 Suspension Air Spring |
||
W01-M58-8966 FIRESTONE 1T66F-10.8 Suspension Air Spring 1R14-781 Granning 15903
GUOMAT 1T8966 details OEM References
| Cross References | Vehicles OEM References |
| CONTITECH 881 MB**CPL | BPW BPW 36 |
| FIRESTONE 1T66F-10.8 W01 M58 8966**CPL | BPW 05.429.43.51.0 |
| GOODYEAR 1 R 14-748 | BPW 05.429.40.61.1 |
| DUNLOP FR D14 B 41**CPL | BPW 05.429.41.36.1 |
| CF GOMMA 1 TC 360-45**CPL | BPW 05.429.40.08.1 |
| TAURUS KR 836-05**CPL | Meritor : MLF7065 |
| Airtech : 130522/3881-01k | |
| Granning: 15917 | |
| Pirelli: 1TC 360-45 | |
| WABCO : 951 814 712 0 |
881MB W01-M58-8966 / W01M588966 / WO1 M58 8966
GUOMAT 1T8966 Technical parameters
❶ screw bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12
Screw Center Distance of Top Cover Plate : 210 mm
❷ Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : M22x1,5.
Distance Between Gas Hole and Stud :25 mm
Distance Between Gas Hole and Central axis :95 mm
❸ Cover Plate
Top Cover Plate Diameter: Ø311.5 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 355 mm
❺ Bumper block / Buffer block
Bumper Block height :30 mm
❻ Bottom Piston
Bottom Piston Diameter : Ø256mm
Bottom Piston Height :188.5 mm
❼ Piston Bolt
Piston Bolt Tooth : M16
12 pieces of Bolt
Middle inside between center Bolt : 70 mm
Middle faster between center Bolt : 120 mm
Inside the most close Bolt :45 mm
Inside and the beside Bolt:80 mm
| Cross No | Cross No | ||
| VIBRACOUSTIC | V1DK32 X9 | GART | C292 |
| BLACKTECH | RML7992C | GART | 292.2.530 |
| AIRTECH | 3881-01 C | SPRINGRIDE | 1R14-712 |
| AIRTECH | 130522 | SPRINGRIDE | 566-28-3-501 |
| FIRESTONE | W01-M58-8966 | PRIMERIDE | 5881 A P03 |
| FIRESTONE STYLE | 1T66F-10.8 | PRIMERIDE | 1R14-712 |
| GOODYEAR | 1R14-712 | PRIMERIDE | 566-28-3-501 |
| GOODYEAR | 566-28-3-501 | DUNLOP | D14B36 |
| CF GOMMA | 1TC360-45 | ||
| CF GOMMA | 205800 | ||

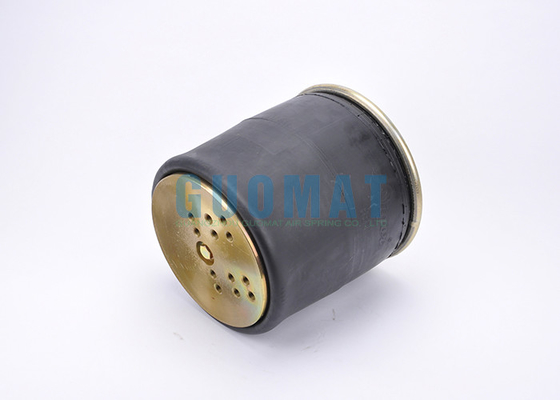

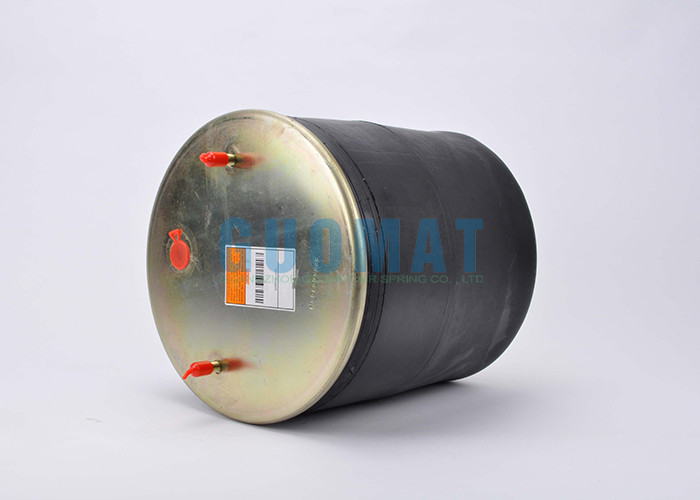

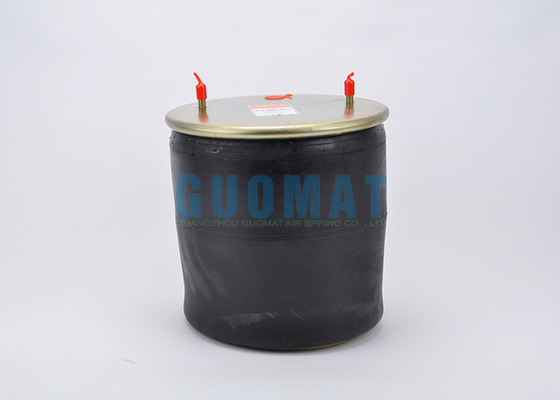

881 MB detail pictures
