1T15M-4 FIRESTONE W01-358-9010 Suspension Air Spring 566-24-3-076 Goodyear 1R12-352
GUOMAT 1T9010 details OEM References
| Air Spring Supplier: ContiTech |
Suspension Supplier: Hendrickson Trailer |
| Competitor/supplier ID: 91014P345 |
Suspension number: T4392 |
| Air spring supplier: Goodyear |
Suspension supplier: MASA |
| Reference: 566243076 |
Competitor/supplier number: T27129063 |
| Competitor/supplier number: 1R12352 |
Suspension supplier: Tuthill Technology |
| Air spring supplier: Goodyear |
FSIP OEM: W017559010 |
| Competitor/supplier number: 1R12421 |
Suspension supplier: Ridewell |
| Air Spring Supplier: Triangle |
Competitor/supplier ID: 1003589010C |
| Reference: 6362 |
Suspension supplier: Tuthill Technology |
| Competitor/supplier ID: 8345 |
Competitor/supplier ID: 12928801 |
| Air Spring Supplier: Airtech |
Suspension supplier: Watson & Chalin |
| Competitor/supplier number: 3415402KPP |
Competitor/supplier ID: AS0044 |
| Air Spring Supplier: Dayton Parts |
Firestone trim: w013589010 |
| Competitor/supplier ID: 3529010 |
Suspension supply |
| Suspension supplier: Hendrickson |
Supplier: Hendrickson Trailer Competitor/Supplier Number: S11566 |
| Competitor/supplier ID: B2827 |
Suspension supply |
| Firestone air spring style: 1T15M4 |
Supplier: Hendrickson Trailer Competitor/Supplier Number: S2827 |
GUOMAT 1T8966 Technical parameters
❶ screw bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12
Screw Center Distance of Top Cover Plate : 210 mm

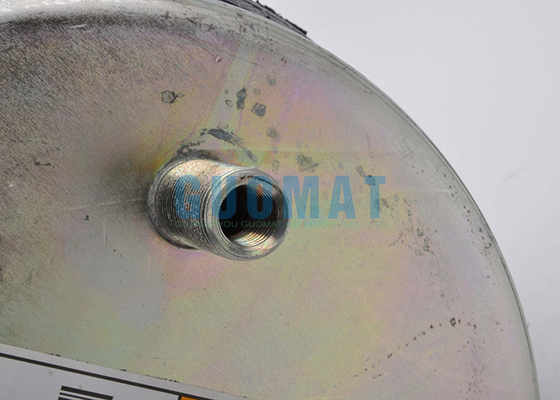

❷ Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : M22x1,5.
Distance Between Gas Hole and Stud :25 mm
Distance Between Gas Hole and Central axis :95 mm
❸ Cover Plate
Top Cover Plate Diameter: Ø311.5 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 355 mm
❺ Bumper block / Buffer block
Bumper Block height :30 mm
❻ Bottom Piston
Bottom Piston Diameter : Ø256mm
Bottom Piston Height :188.5 mm
❼ Piston Bolt
Piston Bolt Tooth : M16
12 pieces of Bolt
Middle inside between center Bolt : 70 mm
Middle faster between center Bolt : 120 mm
Inside the most close Bolt :45 mm
Inside and the beside Bolt:80 mm
Continental ContiTech number 9 10-14 P 345,
ContiTech order number 64258,
Hendrickson number S-2827,
Hendrickson number S-11566,
Reyco number 12928-01,
Ridewell number 1003589010C,
Watson & Chalin number AS-0019203I-0044,
Automann-Firestone,
Watson & Chalin number AS- 00192031 -9010,
Firestone style number 1T15M-4,
FleetPride number AS9010,
Goodyear number 1R12-421,
Goodyear number 1R12-352,
Goodyear Flex No. 566243076,
Taurus number 6362,
Triangle number AS-8345,
TRP number AS90100
