Contitech 4159NP09 Firestone W01-M58-9131 Suspension Air Spring 1T15M-9 SAMRO 25324

Product Details:

Place of Origin:	Guangdong , China
Brand Name:	GUOMAT
Certification:	ISO/TS16949
Model Number:	1T9131

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$59-159/pc
Packaging Details:	strong carton box or as customer's need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,paypal or others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber Bellows ,Steel Piston	CONTITECH:	4159NP09
Other Name:	VIBERTI Suspension Air Spring	Cover Plate OD:	227 MM
Air Inlet / Air Fitting:	M20	FIRESTONE:	W01-379-9131
GOODYEAR:	1 R12-721	FIRESTONE 2:	1T15M-9
Highlight:	W01-M58-9131 Suspension Air Spring , Contitech 4159NP09 Suspension Air Spring , 1T15M-9 Suspension Air Spring

CONTITECH 4159NP09 FIRESTONE W01-M58-9131 Suspension Air Spring 1T15M-9 SAMRO 25324

OEM Cross Number:

GUOMAT NO.:1T1T9131

Firestone	Taurus
: W01-M58-9131	: KR 509-9131
: W01-M58-0736	Acerbi
: 1T15M-9	: 128147123
Contitech	Cardi
: 4159 NP 09	58051210
Goodyear	Fruehauf
: 1R12-721	UJB 0358
Phoenix	UJY 0099
:1DK21B8	SMB
CF Gomma	MOO 1774
: 1T323-40	Dunlop
	: D12B04
	Viberti
	: 128147123

CONTITECH 4159 N P09 / 4159NP09 / 4159N P09
FIRESTONE 1T15M-9 / 1T15M 9 / 1T15M9
FIRESTONE W01 379 9131 / W01-379-9131 / W013799131
GOODYEAR 1 R12-721 / 1 R12 721 / 1 R12721
PHOENIX 1 DK 21 B8 / 1DK21B8 / 1DK21 B8
DUNLOP FR D12B04
CF GOMMA 1 T323-40 200751
TAURUS KR 509-9131
Contitech Number: 4159 N P09
Dunlop FR Number: D12B04
Firestone Number: W01 M5 89131
Firestone Number: 1T15M-9
Gart Number: 278.1.510
Goodyear Number: 1R12-721
Goodyear Number: 566-24-3-501
Neotec Number: ABM 242 32 A 05
Phoenix Number: 1 DK 23 L 9131
Primeride Number: 54159 A P09
Taurus Number: KR-509-9131
Vibracoustic Number: V1DK23L-9131
Airtech Number: 34159-02 C PP
Blacktech Number: RML75260CP9
Cf Gomma Number: 200751
Cf Gomma Number: 1T 323-40

OEM Suspension Supplier Number:

ACERBI 128147123
CARDI 58051210
FRUEHAUF M 001774
FRUEHAUF UJB 0358-001
SAMRO 25324
SMB M 001774
SMB UJB 0358
VIBERTI 128147123

Cardi Number: 58051210
Fruehauf Number: UJB 0358-001
Fruehauf Number: USA 09030
SAMRO Number: H2500324
Smb Number: 1525199
Smb Number: M001774

GUOMAT NO.:1T1T9131 data:

Nominal working pressure
5.0bar
maximum working pressure
7.5bar
Minimum working pressure
0.4bar
space envelope diameter
340mm
Assembly height
400mm
Piston
Metal
Load capacity (5.0 bar)
2450kg

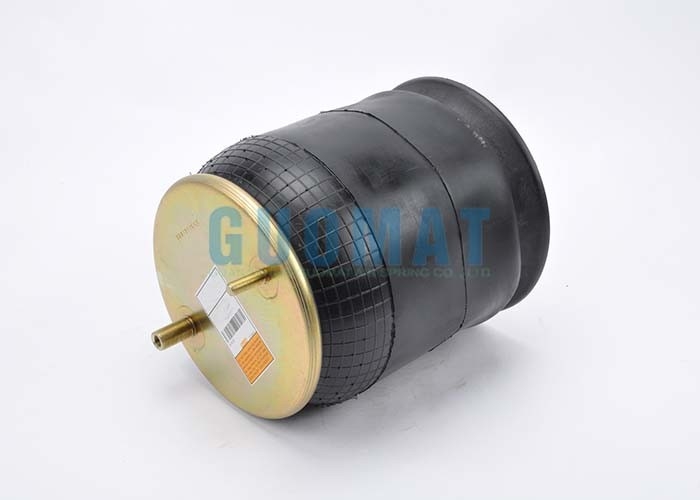

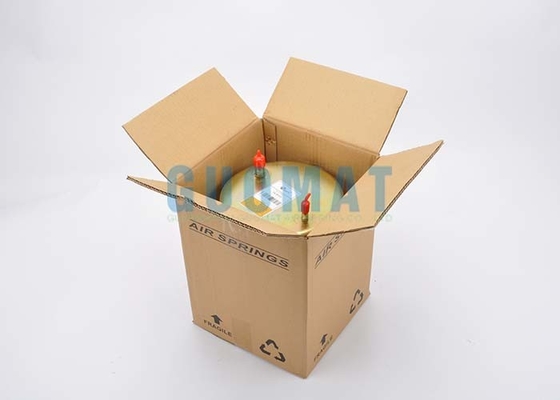

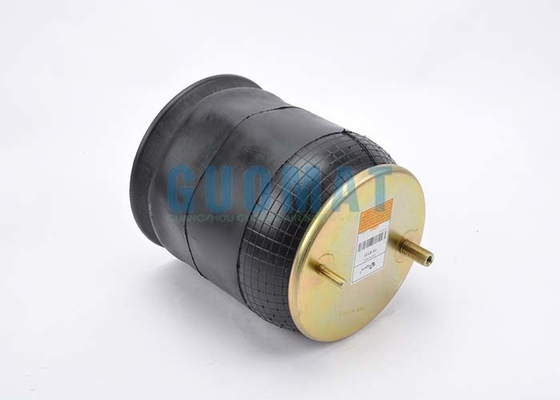

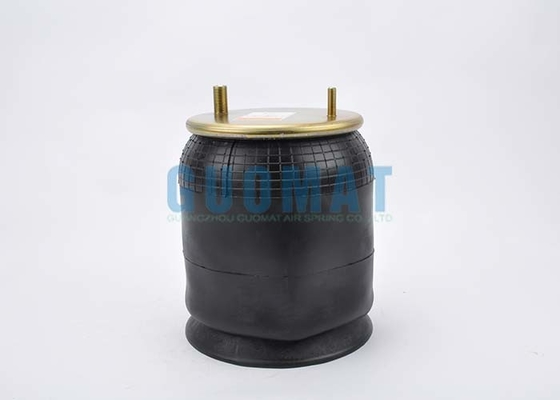

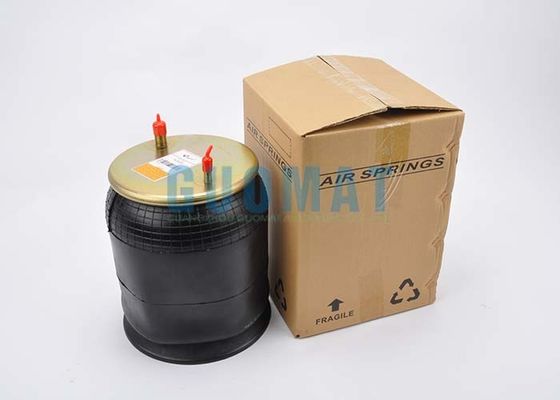

detail photos:
