| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 1T9367 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |

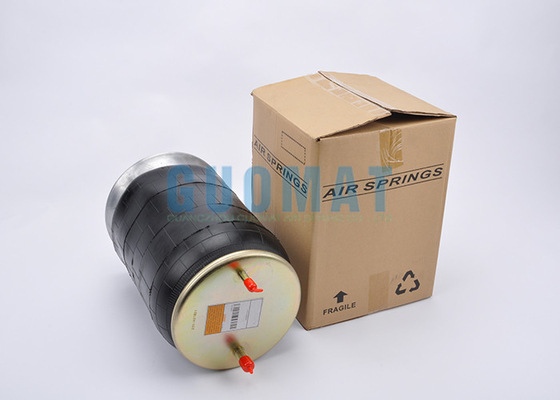

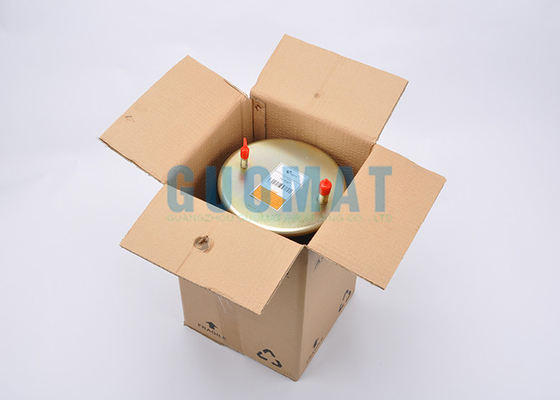

| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | Firestone: | 1T15M-11 |
|---|---|---|---|
| Other Name: | Suspension Air Spring | Cover Plate OD: | 228.6 MM |
| Air Inlet / Air Fitting: | 1/4 NPTF | Contitech: | 4159NP05 |
| Hendrickson: | 003319 | ||
| High Light: | Firestone W01-358-9367 Suspension Air Spring,4159NP05 Suspension Air Spring,Hendrickson 003319 Suspension Air Spring |
||

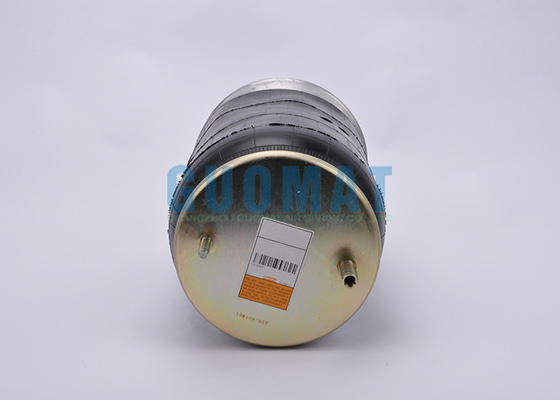

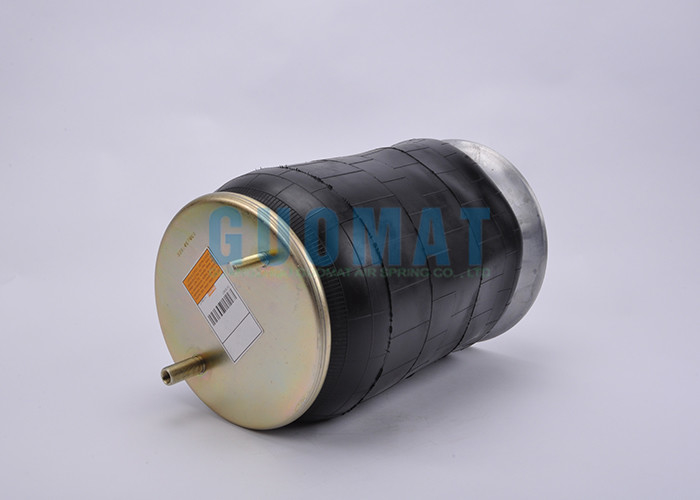

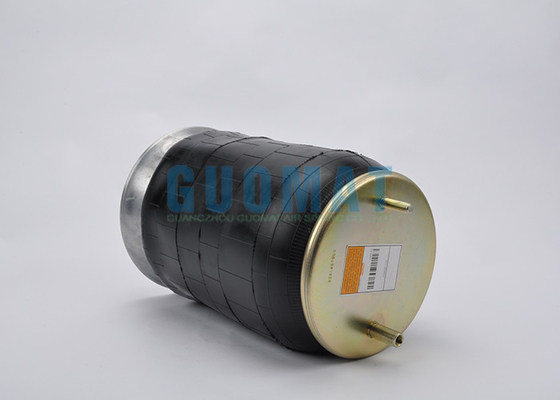

Firestone W01-358-9367 Bellows Number 1T15M-11 Contitech 4159NP05 Hendrickson 003319
OEM Cross Number:
| Firestone | Airtech |
| W01-358-9367 | 39367K |
| 1T15M-11 | Triangle |
| Contitech | : 8505/6367 |
| : 4159 NP 05 | ROR/Meritor |
| Goodyear | Watson&Chalin : AS-0104/0137 |
| 1R12-283/256 | Hendrickson |
| : 003319 |
Goodyear 1R12-281
Goodyear Flexmember 566-24-3-066
Goodyear Piston 566-20-7-080 COMPOSITE
AUTOMANN FIRESTONE AB1DK23L-9130 CONT. AB1DK23L-9350 W013589130 AB1DK23L-9394 W013589394 AB1DK23L-P946
CONTI
UCE-9393-1 UCE-9393-3 UCE-9393-4
9 10-19 A 358 64327
25.2 9.0
DAYTON
TRIANGLE
352-9130
8321
FIRESTONE
TRP
9030 9394
AS91300
Goodyear Number: 1R12-281
Bellows type: rolling leaf
Ultraman bellows Number: 1DK23L
Firestone bellows Number: 1T15M-9
Goodyear Bellows Number: 566-24-3-066
Contitech bellows Number: 9 10-19
Triangle bellows Number: 6364/87
Base plate/neutron type: composite material
Number of top plate holes/studs: 2
Top plate diameter: 9
Top plate C to C diameter: 6.2
Base plate hole bolt Qyt: 5
Diameter of bottom plate: 10.1
Diameter of base plate C to C: 7.87
Base plate part number: 566-20-7-080
Bottom plate alignment: parallel
Bumper: Yes
Bracket: Not applicable
Minimum height: 9
Maximum height: 25.2
| 56624226000004 | 20132916 | Y | 1R12-260 | 1R12-260 |
| 56624226100000 | 20093010 | Y | 1R12-261 | 1R12-261 |
| 1R12-261 | 20093011 | N | 1R12-261 Rolling Lobe Air Spring | 1R12-261 Rolling Lobe Air Spring |
| 56624226400000 | 20093014 | Y | 1R12-264 | 1R12-264 |
| 56624226500000 | 20093019 | Y | 1R12-265, USE 1R12-167 | 1R12-265, USE 1R12-167 |
| 1R12-265 | 20093020 | N | 1R12-265 Rolling Lobe Air Spring | 1R12-265 Rolling Lobe Air Spring |
| 56624226600000 | 20093022 | Y | 1R12-266 HNDRCK C20223SEE 1R12-329 | 1R12-266 HNDRCK C20223SEE 1R12-329 |
| 56624226900000 | 20093025 | Y | FRTLNR 1R12-269 | FRTLNR 1R12-269 |
| 56624227100000 | 20093026 | Y | 1R12-271 HNDRCK C20217 REP 1R12-330 | 1R12-271 HNDRCK C20217 REP 1R12-330 |
| 56624227200000 | 20093029 | Y | 1R12-272 | 1R12-272 |
| 56624227200004 | 20110384 | Y | 1R12-272 | 1R12-272 |
| 56624227200019 | 20093028 | Y | ENIDINE YI-1R12-272 | ENIDINE YI-1R12-272 |
| 56624227400000 | 20093031 | Y | 1R12-274 | 1R12-274 |
| 1R12-274 | 20116880 | N | 1R12-274 Rolling Lobe Air Spring | 1R12-274 Rolling Lobe Air Spring |
| 56624227400019 | 20093032 | Y | ENIDINE YI-1R12-274 | ENIDINE YI-1R12-274 |
| 1R12-275 | 20093035 | N | 1R12-275 | 1R12-275 |
| 1R12-279 | 20093043 | N | 1R12-279 REP BY 1R12-281(20035891) | 1R12-279 REP BY 1R12-281(20035891) |
| 56624228100000 | 20093050 | Y | 1R12-281 | 1R12-281 |
| 56624228100001 | 20054307 | Y | GENTDE 1R12-281 | GENTDE 1R12-281 |
| 1R12-281 | 20035891 | N | 1R12-281 Rolling Lobe Rep 1R12-279 | 1R12-281 Rolling Lobe Rep 1R12-279 |
| 56624228300000 | 20093056 | Y | 1R12-283 HENDRICKSON B-4375 | 1R12-283 HENDRICKSON B-4375 |
| 56624228400000 | 20093058 | Y | 1R12-284 | 1R12-284 |
| 1R12-284 | 20116881 | N | 1R12-284 Rolling Lobe Air Spring | 1R12-284 Rolling Lobe Air Spring |
| 56624228500000 | 20093060 | Y | 1R12-285 | 1R12-285 |
| 1R12-285 | 20116882 | N | 1R12-285 Rolling Lobe Air Spring | 1R12-285 Rolling Lobe Air Spring |
| 56624228600000 | 20093061 | Y | 1R12-286 | 1R12-286 |
| 56624228800000 | 20093063 | Y | MCI 12C-1-126 1R12-288 | MCI 12C-1-126 1R12-288 |
| 1R12-288 | 20116883 | N | 1R12-288 Rolling Lobe Air Spring | 1R12-288 Rolling Lobe Air Spring |
| 56624228900000 | 20093064 | Y | 1R12-289 | 1R12-289 |
| 56624228900004 | 20116884 | Y | 1R12-289 | 1R12-289 |
| 56624229000000 | 20054308 | Y | SPR 1R12-290 | SPR 1R12-290 |
| 56624229400004 | 20116885 | Y | 1R12-294 | 1R12-294 |
| 56624229500000 | 20093067 | Y | 1R12-295 | 1R12-295 |
| 56624229500004 | 20116886 | Y | 1R12-295 | 1R12-295 |
| 56624229600000 | 20093068 | Y | 1R12-296 | 1R12-296 |
| 56624229600004 | 20116887 | Y | 1R12-296 | 1R12-296 |
| 56624230300000 | 20093076 | Y | 1R12-303 | 1R12-303 |
