Place of Origin: | China |
Brand Name: | Goodyear |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B8-550 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel And Rubber | Goodyear: | 579-923-530 |
---|---|---|---|
Warranty: | 12 Months | Weight: | 3.0kg |
Other Name: | Mac-k Truck Air Springs | Pressure Ability: | 0.2-0.8 M Pa |
Goodyear Bellows No.: | 2B8 579-923-530 | ||
High Light: | Goodyear 2B8-550 Suspension Air Spring,2B8 579-923-530 Suspension Air Spring,Mac-k truck Air Springs |

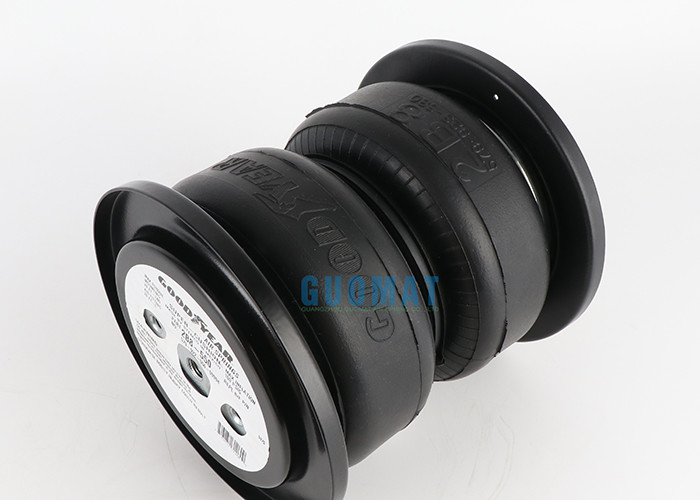

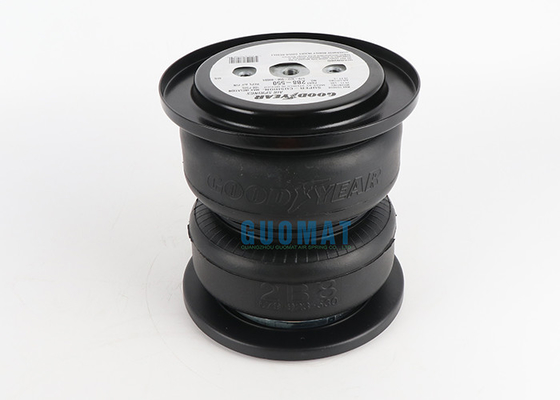

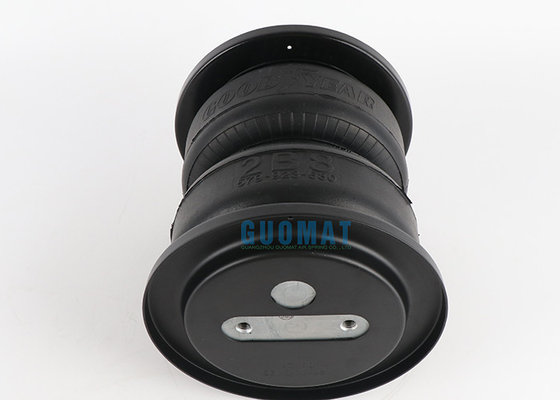

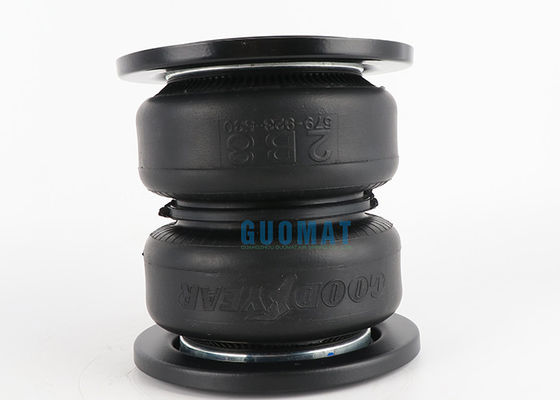

Genuine Goodyear 2B8-550 Suspension Air Spring Bellows 2B8 579-923-530 For Small Truck
2B8-550 Goodyear OEM Original Equipment Manufacturer:
Goodyear part number: 2B8-550 /
Goodyear part number:2B8550 /
Goodyear part number:2B8 550
Goodyear part number: 2B8-553 /
Goodyear part number:2B8553 /
Goodyear part number:2B8 553
Goodyear Bellows No .: 579-92-3-550;
Goodyear Bellows No .:579 92 2 550;
Goodyear Bellows No .:579922550
Goodyear Bellows No .: 579-92-3-530;
Goodyear Bellows No .:579 92 2 530;
Goodyear Bellows No .:579922530
Goodyear Bellows No .:2B8 579-923-530
Goodyear Top Bead Plate No .:ASA-92-8-114
Goodyear Top Bead Plate No .:ASA 92 8 114
Goodyear Top Bead Plate No .:ASA928114
Goodyear Bottom Plate Piston No .:ASB-92-6-049
Goodyear Bottom Plate Piston No .:ASB 92 6 049
Goodyear Bottom Plate Piston No .:ASB926049
Flexible members: 579-92-3-550 | American Airlines Number: 8003-006 |
Goodyear Trim: 2B8550 | Hendrickson Trailer ID: S-14395 |
Crossover | Mark Number: 227QS-32 |
Triangle spring: 4509 | Triangle part number: 4509 |
Firestone: 7325 | Triangle bellows number: 6392 |
Kangdi Technology: 64601 | Watson & Charin ID: AS-0030 |
US carrier: 8003006 | Sauer Code: P10-754 |
Neway: 57007325 | Euclid / Meritor Aftermarket: E-FS7325 |
batco: 10-97325 | ContiTech: FD120-17509 |
Mike: 227QS-32 | Euclid / Meritor Aftermarket: FS7325 |
Mike: 57QK113 | BWP: M-3557 |
American Airlines: 8003-006 | Midland / Haldex: CS208550 |
UCF / Impex: AB-2B8-550 |
Specification of 2B8-550 Goodyear
❶Nuts/Blind Nuts
Top plate screw (nut) teeth: 2 X M8X1.25
Screw center distance of top cover plate: 52 mm
Bottom cover screw (nut) teeth: 2 X M8X1.25
Screw center distance of bottom cover: 52 mm
❷Blowhole/Air inlet/Air accessories
Blowhole/air inlet: M12X1.5
❸Cover
Top cover plate diameter (width): 135 mm / 5.31 inches
Bottom cover diameter (width): 135 mm / 5.31 inches
Top plate number: 3450
Bottom cover plate number: 3436
Bell rubber bellows
Natural diameter of rubber bellows: 189 mm
Natural height of rubber bellows: 177 mm
Compression height: 79 mm/3.12 inches
Design height: 178mm-203mm/7-8 inches
Maximum diameter: 218 mm / 8.6 inches
Bellows number: 26
❺Bumper block/buffer block
Without bumper block
❻Belt ring/belt ring
Has a belt hoop: a belt hoop
Roof hole/stud: 3 pcs
Floor hole/stud: 2 pcs
Top plate diameter: 5.03 inch
Base plate diameter: 5.03 inch
Folding height: 2.9 inch
2B8-550 Goodyear Cross OEM
BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
AIRKRAFT 114050 | AIRKRAFT 113067 | AIRKRAFT 113068 |
CONTITECH 603 N | CONTITECH FD 120-20 509 | FIRESTONE W01-358-7327 |
FIRESTONE FLEX 26 | FIRESTONE W01-358-7325 | GOODYEAR 2B8-552 |
FIRESTONE W01 358 0142 | GOODYEAR 2B8-550 | |
PIRELLI 26 | |
2B8-550 Goodyear Description
2B8-550 Goodyear air spring. Super-Cushion® air springs bring new high productivity and long life to your trucks, trailers and buses. Bellows air springs provide a constant level of traction and provide trouble-free service.
Goodyear airbags can protect cargo and provide horizontal transportation and long-term service. Bellows air springs provide quiet, cushioned driving and have a longer life than steel springs due to less vibration. The driver feels more comfortable while riding, reduces fatigue, and stays alert. In addition, the cargo has better shock and vibration resistance.
The drawing of 2B8-550 Goodyear air spring:
57992254800000 | 20200918 | Y | 2B7-548 | 2B7-548 |
2B7-548 | 20305191 | N | 2B7-548 Bellows Air Spring | 2B7-548 Bellows Air Spring |
57992254800038 | 20287310 | Y | 2B7-548 HENDRICKSON 005079 | 2B7-548 HENDRICKSON 005079 |
57992254800050 | 20305190 | Y | 2B7-548 | 2B7-548 |
992-2549 | 20840490 | N | AIR SPRING SLEEVES P 2B7-548 | AIR SPRING SLEEVES P 2B7-548 |
57992255000000 | 20035816 | Y | 2B8-550 | 2B8-550 |
2B8-550 | 20095586 | N | 2B8-550 Bellows Air Spring | 2B8-550 Bellows Air Spring |
57992255000019 | 20054210 | Y | ENIDINE YI-2B8-550 | ENIDINE YI-2B8-550 |
57992255000042 | 20561425 | Y | 2B8-550 INTERNATIONAL 3882214C1 | 2B8-550 INTERNATIONAL 3882214C1 |
2B8-552 | 20095591 | N | 2B8-552 | 2B8-552 |
57992255200019 | 20095592 | Y | ENIDINE YI-2B8-552 | ENIDINE YI-2B8-552 |
2B8-553 | 20095593 | N | 2B8-553 | 2B8-553 |
57992255300004 | 20409616 | Y | 2B8-553 TRUCK AIR SPRING | 2B8-553 TRUCK AIR SPRING |
57992255300019 | 20095594 | Y | ENIDINE YI-2B8-553 | ENIDINE YI-2B8-553 |
57992255300021 | 20119143 | Y | 58205 2B8-553 | 58205 2B8-553 |
57992255400000 | 20095595 | Y | 2B8-554 | 2B8-554 |
57992255400019 | 20095596 | Y | ENIDINE YI-2B8-554 | ENIDINE YI-2B8-554 |
57992256200094 | 20811617 | Y | C 2B8-550 | C 2B8-550 |
57992274000000 | 20095599 | Y | 2B7-740 | 2B7-740 |
57992283000019 | 20106784 | Y | ENIDINE YI-2B6-830 | ENIDINE YI-2B6-830 |
2B6-833 | 20095600 | N | 2B6-833 | 2B6-833 |
57992283300019 | 20095601 | Y | ENIDINE YI-2B6-833 METRIC | ENIDINE YI-2B6-833 METRIC |
57992283500019 | 20257581 | Y | ENIDINE YI-2B6-835 | ENIDINE YI-2B6-835 |
57992283900000 | 20054211 | Y | 2B6-839 M | 2B6-839 M |
2B7-840 | 20316800 | N | 2B7-840 | 2B7-840 |
57992284000019 | 20117075 | Y | ENIDINE YI-2B7-840 | ENIDINE YI-2B7-840 |
57992284100090 | 20811618 | Y | C 2B6-839 M | C 2B6-839 M |
57992284200000 | 20069561 | Y | KUHN 2B7-842 M | KUHN 2B7-842 M |
2B7-843 | 20588389 | N | 2B7-843 M | 2B7-843 M |
2B8-850 | 20095602 | N | 2B8-850 METRIC | 2B8-850 METRIC |
