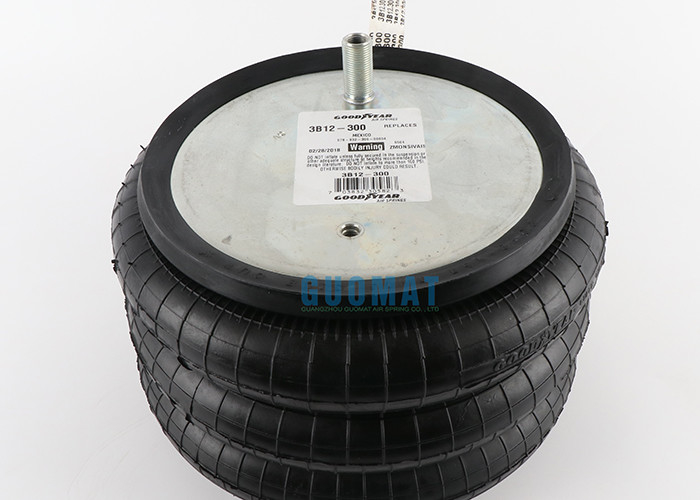

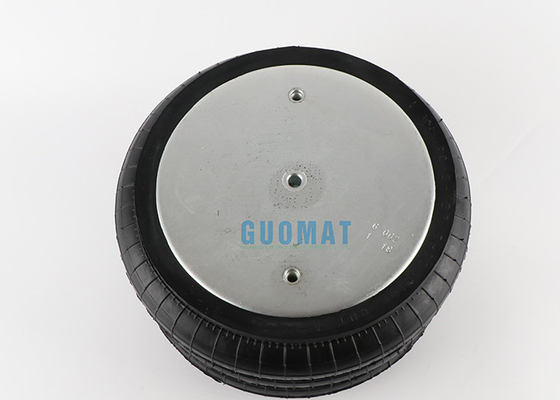

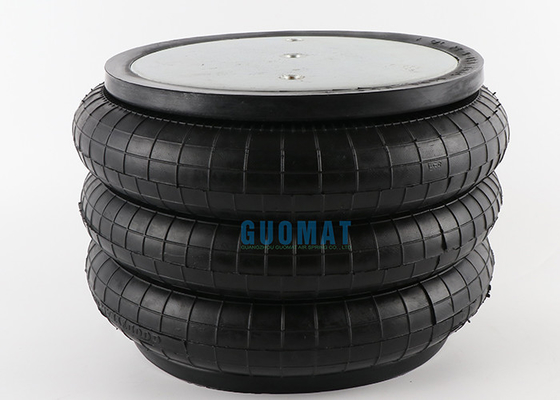

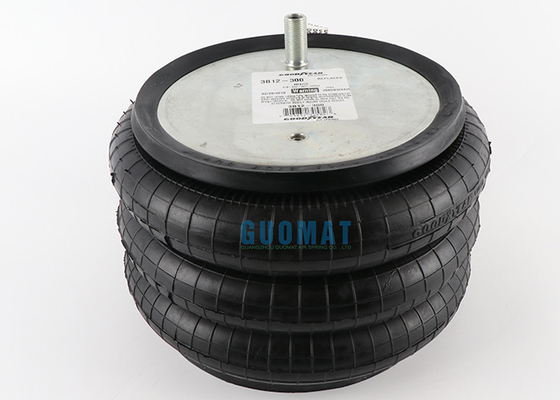

Goodyear 3B12-300 Suspension Air Spring Bellows Triple Convoluted Air Bag LOAD GUARD SC2130

Goodyear 3B12-300 Suspension Air Springs Bellows Triple Convoluted Air Bag LOAD GUARD SC2130​

3B12-300 Goodyear Air Springs Cross others OEM

Goodyear Complete NO.:3B12-300

Goodyear Complete NO.:3B12300

Goodyear Complete NO.:3B12 300

Goodyear Bellows NO.:578-93-3-100

Goodyear Bellows NO.:578 93 3 100

Goodyear Bellows NO.:578933100

Goodyear Flexible Members:578-93-3-100

Goodyear Flexible Members:578 93 3 100

Goodyear Flexible Members:578933100

Flexible members: 578-93-3-100
Goodyear Trim: 3B12300

Triangle spring: 4431
Triangle spring: 4469
Firestone: 8008
Firestone: 8025
By E-Z: 8030155
Neway: 57008008
Reedwell: 1003588008C
batco: 10-98008
UCF / Impex: AB-3B12-300
T.W. Distribution: AB8008
Ultraman: ABSP3B22R-8008
Watson & Chalin: AS0019
Dallas Spring: AS8008
Midland / Haldex: CS312300
Euclidean/Meritor Aftermarket: E-FS8008
Euclidean/Meritor Aftermarket: E-FS8025
Euclid / Meritor Aftermarket: FS8008

Euclid / Meritor Aftermarket: FS8025
Kangdi Technology: FT330-29431
Kangdi Technology: FT330-29469
BWP: M-3553
Leland: SC2130

3B12-300 Goodyear technical parameters:

❶Nut/blind nut

Top plate screw (nut) tooth: 1 X 3 / 8-16UNC
Top plate screw (nut) tooth: 1 X stud-3/4-16
The screw center distance of the top cover plate: 140 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
The screw center distance of the bottom cover plate: 157.5 mm

❷Air hole/air inlet/air fitting
Air hole/air inlet: 1 / 4-18NPTF
The screw center distance between the air hole and the nut: 73 mm

❸cover
Top plate diameter: 228.6 mm
Diameter of bottom cover: 228.6 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 330 mm
Natural diameter of rubber bellows: 300 mm
Working stroke: minimum 120 mm to maximum 457 mm
Maximum height: 457 mm
Minimum height: 120 mm
Stroke height: 179mm

❺Bumper block/bumper block
No bumper

❻Belt loop/Belt loop
Attached belt: a belt

Top hole/stud: 2
Bottom hole/stud: 2
Top plate diameter: 9
Base plate diameter: 9
Folding height: 5.1

Characteristics of air springs:

1. Long service life, self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.

2. The maintenance is very simple, there is no friction sliding part, so there is no need to add lubricating oil.

3. The installation height can be reduced. Compared with other springs, the installation height can be reduced and the stroke can be effectively increased.

4. The elastic and soft spring parameters can be obtained, the load is large and the elasticity is soft, and the anti-vibration performance is excellent.

5. The output of bearing capacity is variable, and the bearing capacity can be changed in a wide range by changing the internal pressure.

6. The height can be controlled, if used together with the height adjustment valve, it can maintain a constant height for different loads.

7. It has a damping effect. If it is used together with an auxiliary air chamber and a throttle valve, an excellent damping effect can be obtained, thereby reducing the resonance amplitude.

8. Easy to install, simple structure, easy to install and dismantle.

Other kind of Goodyear Air Bellows:
