| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B12-325 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 3B12-325 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
| Screw Center Distance: | 157.5 Mm | Cover Plate Diameter: | 228.6 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 120~457 Mm |
| Net Weight: | 7.5 Kg | Package Size: | 33 X 33 X 22 Cm |
| Goodyear Bellows: | 578-93-3-103 | ||
| High Light: | Firestone W01-358-8048 Industrial Air Spring,Goodyear 3B12-325 Industrial Air Spring,Triple Convolutions Industrial Air Spring |
||
Firestone W01-358-8048 Industrial Air Spring Cross Goodyear 3B12-325 Plate Diameter 9 inch Triple Convolutions
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-325
3B12-325 Goodyear Cross others OEM
Goodyear Part Number:3B12-325
Goodyear Part Number:3B12 325
Goodyear Part Number:3B12325
Goodyear Bellows Number:578-93-3-103
Goodyear Bellows Number:578 93 3 103
Goodyear Bellows Number:578933103
Goodyear Flexible Members:578-93-3-103
Goodyear Flexible Members:578 93 3 103
Goodyear Flexible Members:578933103
Firestone Part Number:8048
Firestone Part Number:W01-358-8048
Firestone Part Number:W01 358 8048
Firestone Part Number:W013588048
Contitech Part Number:FT 430-32 CI 1/4 NPT OS ;
Contitech Part Number:FT430-32 CI 1/4 NPT OS
Contitech Part Number:FT430-32 CI 1/4 NPT
Contitech Part Number:FT430-32
Goodyear 3B12-304,
Goodyear 3B12-306,
Goodyear 3B12-308
3B12-325 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 73 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Number of top plate holes / studs: 2
Top plate diameter: 9
Top plate C to C diameter: 6.2 inch
Base plate hole bolt Qyt: 2
Base plate diameter: 9 inch
Diameter of base plates C to C: 6.2 inch
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 4.8 inch
Maximum height: 18 inch
The drawing of 3B12-325 Goodyear:

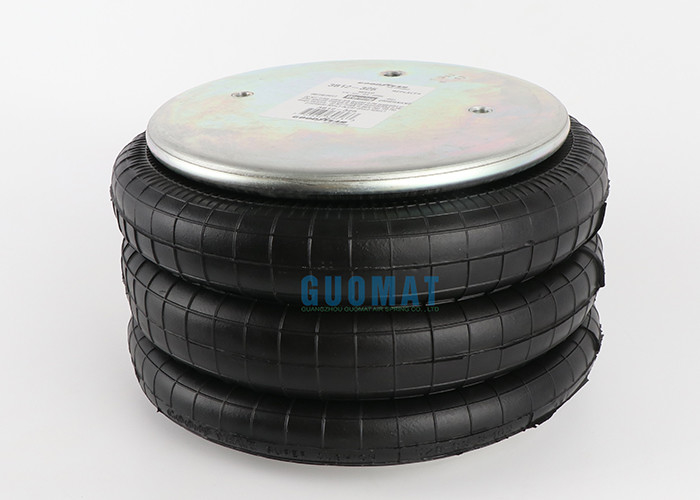

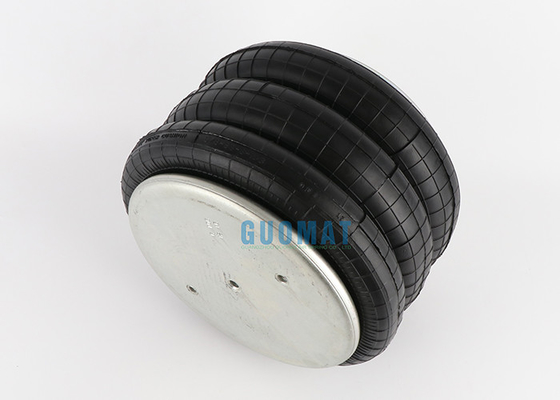

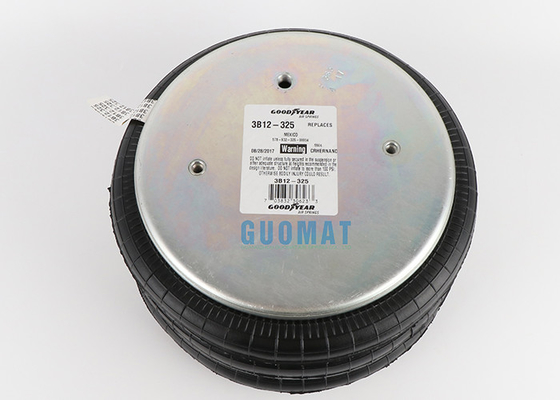

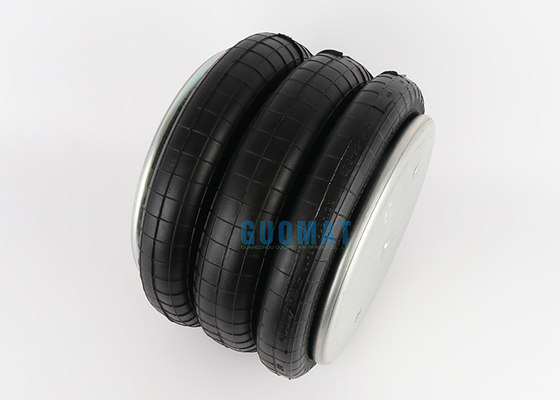

The real photos of 3B12-325 Goodyear air springs:
Goodyear® Goodyear air spring features
Goodyear® Goodyear air springs utilize the compressive elasticity of air, and are essentially different from metal springs such as leaf springs. It has excellent characteristics as a suspension spring. For example, the combined use with a control device keeps the height of the vehicle always constant or arbitrarily changed. It can also improve the vehicle's inclination by individually controlling the left and right air springs.
| Part Number |
Top Plate Qty |
Bottom Piston Qty |
Top Plate Dia |
Bottom Plate Dia. |
Collapsed Height |
Flexmember |
| 3B12-310 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-319 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-328 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-329 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-335 | 2 | 2 | 228.6 | 228.6 | 114.3 | 578-93-3-100 |
| 3B12-300 | 2 | 2 | 228.6 | 228.6 | 129.54 | 578-93-3-100 |
| 3B12-303 | 2 | 2 | 228.6 | 228.6 | 129.54 | 578-93-3-100 |
| 3B14-451 | 2 | 4 | 287.02 | 287.02 | 124.46 | 556-33-8-335 |
| 3B14-367 | 2 | 4 | 287.02 | 287.02 | 152.4 | 578-93-3-350 |
| 3B12-304 | 3 | 2 | 228.6 | 228.6 | 119.38 | 578-93-3-100 |
| 3B12-301 | 3 | 2 | 228.6 | 228.6 | 129.54 | 578-93-3-100 |
| 3B12-325 | 3 | 2 | 261.62 | 261.62 | 114.3 | 578-93-3-103 |
| 3B12-326 | 3 | 2 | 261.62 | 261.62 | 114.3 | 578-93-3-103 |
| 3B14-354 | 5 | 4 | 287.02 | 287.02 | 119.38 | 578-93-3-350 |
| 3B14-360 | 5 | 4 | 287.02 | 287.02 | 119.38 | 578-93-3-350 |
| 3B14-361 | 5 | 4 | 287.02 | 287.02 | 119.38 | 578-93-3-350 |
| 3B14-356 | 5 | 4 | 287.02 | 287.02 | 124.46 | 578-93-3-350 |
| 3B14-359 | 5 | 4 | 287.02 | 287.02 | 124.46 | 578-93-3-350 |
| 3B14-351 | 5 | 4 | 287.02 | 287.02 | 185.42 | 578-93-3-350 |
