| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-6902 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Double Convoluted Air Suspension Spring | Spring Material: | Rubber + Steel |
|---|---|---|---|
| Warranty: | 1 Year | Type: | Gas-filled |
| Max Dia.: | 251mm | Plate Dia.: | 160mm |
| Packing Size: | 24*24*24cm | Gas Hole Type: | 1/4NPTF |
| High Light: | Double Convoluted Air Spring Bag,W01-358-6902 Air Spring Bag,2B9-201 Air Spring Bag |
||

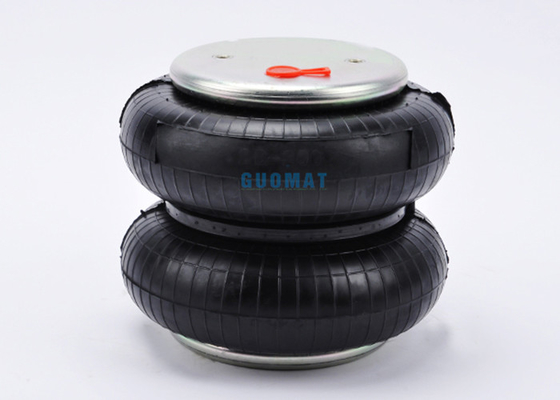

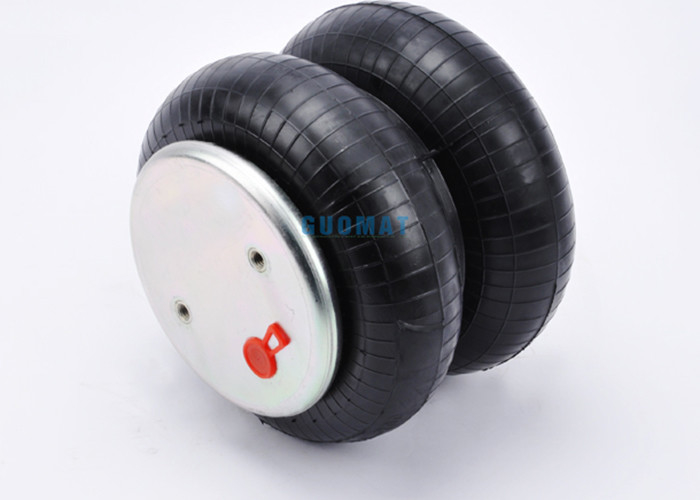

Double Convoluted Air Spring Bag W01-358-6902 Firestone 2B9-201 Goodyear Replacement
Product Specification
| Item | Value |
| OEM.NO. | W01-358-6902 |
| Type | Air Spring |
| Warranty | 12 Months |
| Truck Model | Heavy Duty Truck |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| Packing | Neutral Packing |
| MOQ | 1 Pcs |
| Quality | High-Quality |
| Position | Auto/Truck parts |
| Application | Auto Suspension Systems |

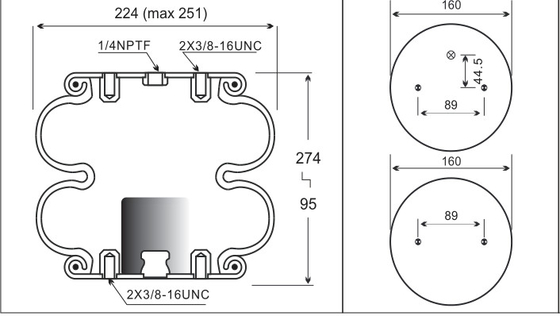

Firestone Double Convoluted Air Spring Data
Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Gas Hole / Air inlet:1/4NPTF
Rubber Bellows Natural Diameter:224mm
Rubber Bellows MAX Diameter:251mm
The Working Stroke:MAX 274 mm to MIN 95 mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Screw Center Distance of Top Cover Plate:89mm
Screw Center Distance of Bottom Cover Plate:89mm
Screw And Gas Hole Distance of Top Cover Plate:44.5mm
OEM NO.
Firestone: W01-358-6902,W013586902,6902
Contitech: FD 200-19 310
Goodyear :2B9-201
Taurus:KF218-6902
Manufacturer No.
Granning:4848
Hendrickson : S2630
R&S Truck: 1027505
Ridewell :1003586902C
Suspensions: 2000-42
Watson&Chalin: AS-0002
American Carrier
