| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-6908 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Rubber | Warranty: | 1 Year |
|---|---|---|---|
| Product Feature: | In-situ Installation | Type: | Gas-filled |
| Max Dia.: | 251mm | Plate Dia.: | 160mm |
| Position: | Universal | Gas Hole Type: | 1/4NPTF |
| High Light: | 2B9-210 Goodyear Air Spring,W01-358-6908 Goodyear Air Spring |
||

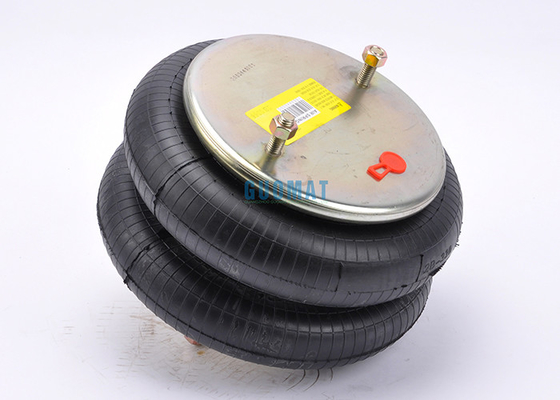

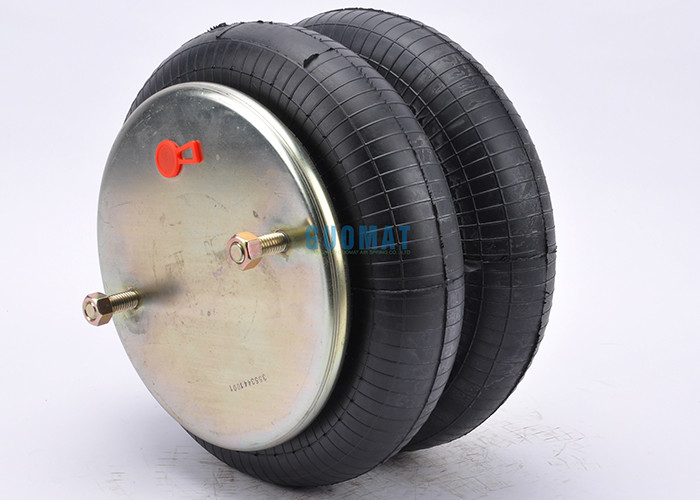

2B9-210 Goodyear Air Spring Truck W01-358-6908 Firestone Suspension Convoluted Bag For Modify Cars
Product Description
| Part Number | 2B 6908 |
| OEM Number | FD 200-19 362 |
| Working temperature | -40°C bis +70°C |
| Failure testing | ≥3 millions |

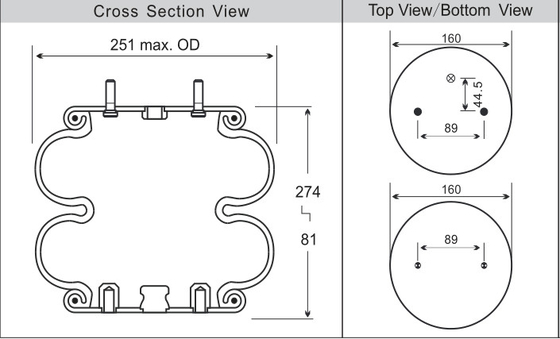

| Top Cover Plate Diameter | 160mm |
| Bottom Cover Plate Diameter | 160mm |
| Gas Hole / Air inlet | 1/4NPTF |
| Rubber Bellows MAX Diameter | 251mm |
| The Working Stroke | MAX 274 mm to MIN 81 mm |
| Screw Center Distance of Top Cover Plate | 89mm |
| Screw Center Distance of Bottom Cover Plate | 89mm |
| Screw and Air inlet Distance of Top Cover Plate | 44.5mm |
Refer No.
| Firestone | W01-358-6908 |
| Contitech | FD 200-19 362/161294 |
| Goodyear | 2B9-210/578923206 |
| Triangle | 6325/4362 |
| Watson&Chalin | AS-0035 |
| Ridewell | 1003586908C |
Airide springs can reduce your costs and increase your profits. Last at least twice, and as much as four times longer than steel springs Require little or no maintenance Increase life of tires and brake linings Substantially reduce breakage and maintenance of other vehicle components, including electrical, air conditioning, cab mounts, exhaust, chassis, seals, wiring and drive train Let you haul anything; eliminate expensive deadheading runs Reduce driver discomfort and dangerous fatigue; improve driver safety, productivity and loyalty Allow perfect load equalization between axles; let you run at the maximum legal limit Provide smoother ride for payload, reducing costly insurance claims and the expense of overpackaging Pay you back at trade-in time; trucks and trailers with air suspensions are worth more 100% of all air spring assemblies are pressure tested before they leave Firestones factory. Firestone is the original designer of composite pistons. Firestone rubber compounds have superior 'flex' range through temperatures of -65 F to 135 F. Air Spring Components Inside the World's No. 1 Air Spring: Airide springs are available in single, double and triple convolution types plus reversible sleeve models for virtually every conceivable heavy-duty vehicle suspension application.
1) Stud - Manufactured as a permanent part of the bead plate assembly for maximum strength and durability. Used to attach the spring to the vehicle's suspension.
2) Combo Stud - Serves the dual purpose of mounting the spring to the suspension and providing an entrance for air.
3) Blind Nut - Also a permanent part of the bead plate assembly. Provides an alternative mounting system to the stud.
4) Air Fitting - Usually 1/4 N.P.T. Provides an air entrance to the bellows.
5) Bead Plate - Crimped onto the bellows at the factory for a more durable design.
Why Choose Us
High-Quality
More than 12 years of technical research & development, we are specialized in truck air spring and accessories products wholesale manufacturer.
Our Service
Set up a specialized team of modern logistics in order to serve for global customers, we are optimized to try to provide high-efficient and the shortest delivery time to our customers.
Product Image
