| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-6910 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Rubber | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Suspension Spring | Fitting Position: | Front Or Rear |
| Max Dia.: | 251mm | Plate Dia.: | 160mm |
| Position: | Universal | Gas Hole Type: | 1/4NPTF |
| High Light: | W013586910 Suspension Air Spring,Hendrickson Suspension Air Spring |
||
Air Spring W013586910,Air Suspension Spring For Hendrickson,Firestone Double Convoluted Airbag
Air Spring 2B6910
| Item | Air Spring |
| Model No. | 2B6910 |
| Brand | GUOMAT |
| Suitable Car | Hendrickson/SAF Holland/Watson&Chalin/Navistar |
| Bellow Material | Natural Rubber |
| MOQ | 1 pcs if we have stock |
| Package | Brown Carton |
| OEM Number | Firestone W01-358-6910,Contitech FD 200-19 320,Goodyear2B9-200/202/216,Goodyear 578423202,Triangle6325/4320,Taurus KF218-6910 |
Brake & Wheel : M3501
Dina : A812719/AZ812719
Dayton : 3546910
Leland : Sc2011
Navistar : 554783C1
Hendrickson : S8768/458433
Ridewell : 1003586910C
SAF Holland : 57006910
Trailers De : 133128
Tuthill : 1371
Watson&Chalin : AS-0001/AS-0156G

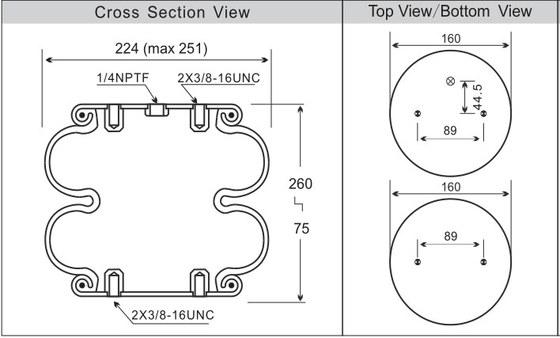

Air Spring 2B6910 Technical data
| Top Cover Plate Diameter:160mm |
| Bottom Cover Plate Diameter:160mm |
| Gas Hole / Air inlet:1/4NPTF |
| Rubber Bellows MAX Diameter:251.5mm |
| Rubber Bellows Natural Diameter:224mm |
| The Working Stroke:MAX 260 mm to MIN 75 mm |
| Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
| Screw Center Distance of Top Cover Plate:89mm |
| Screw Center Distance of Bottom Cover Plate:89mm |
| Screw And Gas Hole Distance of Top Cover Plate:44.5mm |
Benefits for your vehicles by using our rubber air suspension spring
1. Reduces cab, truck body, and trailer damage
2. Reduces need for electrical and other repairs and maintenance
3. Reduces wear and tear on tires, axles, and transmissions
4. Reduces vehicle and fleet downtime
5. Extends life of truck and trailer
6. Protects hinges, lights, rivets, and trailer hardware
7. Provides greater comfort and safe for the driver

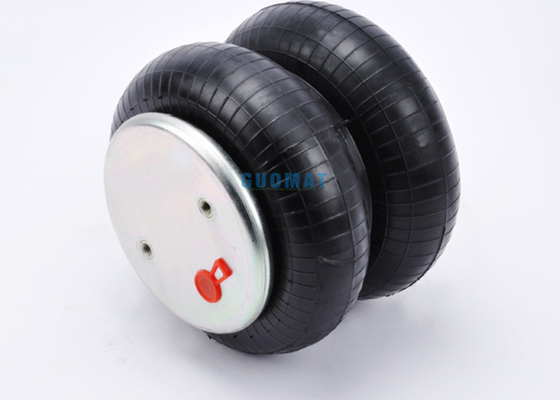

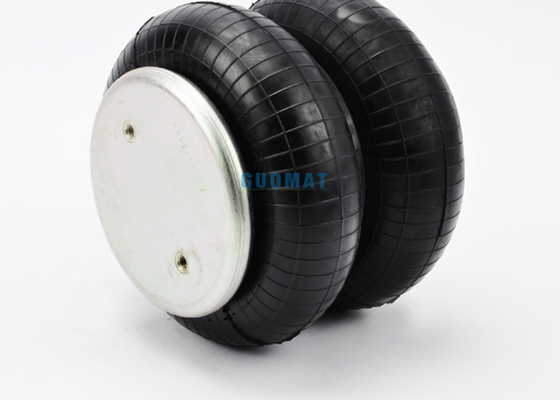

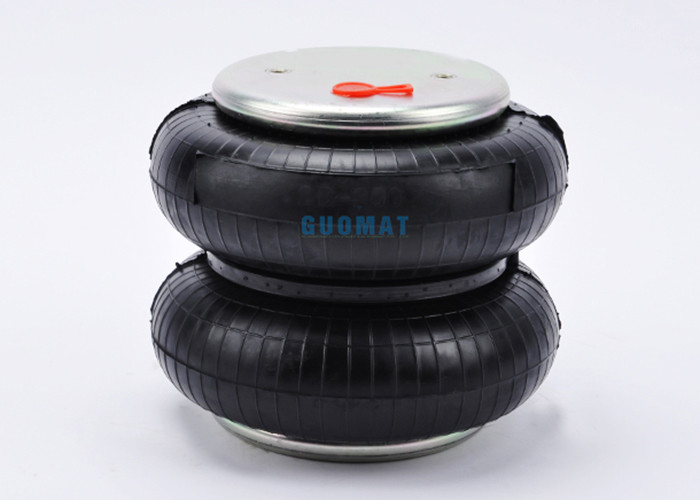

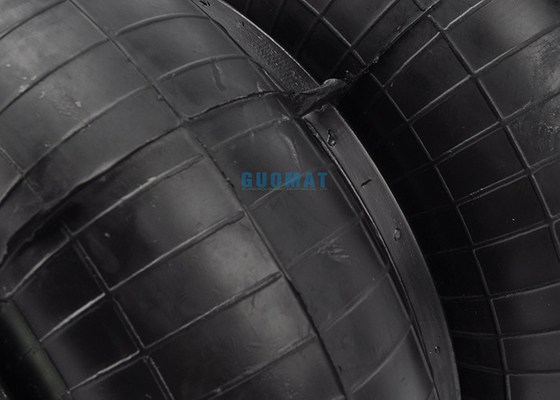

Product Image Display
