| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2S2300F |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Size: | OEM Standard Size |
| Color: | Black Golden White Iron Color | Car Model: | Universal |
| Item Name: | Car Air Shock Absorber | Price Condition: | EXW Guangzhou,FOB Guangzhou |
| High Light: | Suspension Air Spring 2S2300F,Suspension Air Spring Double Convoluted,Double Convoluted Sleeve Type Air Spring |
||

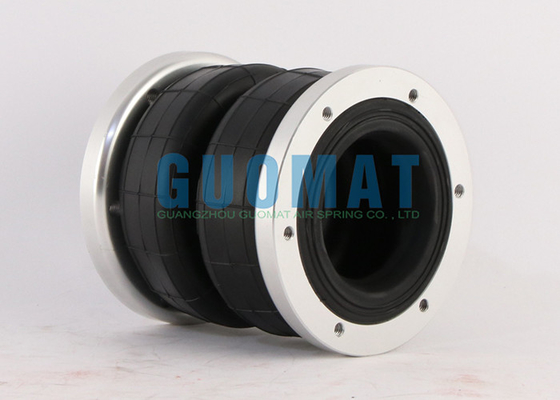

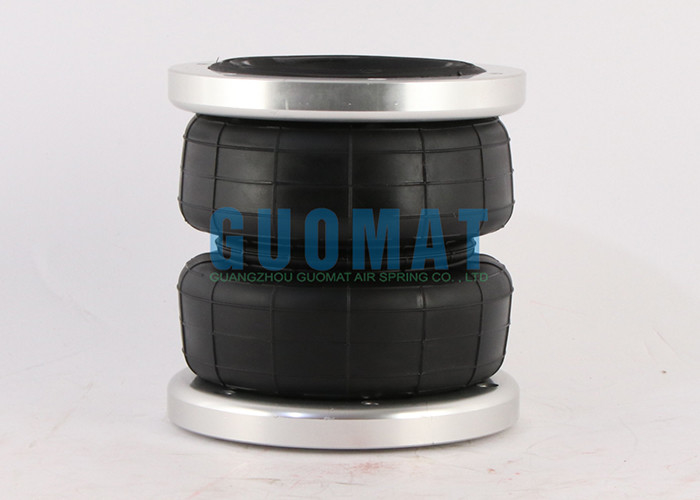

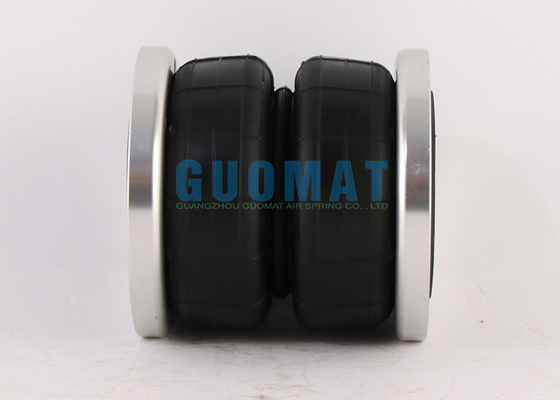

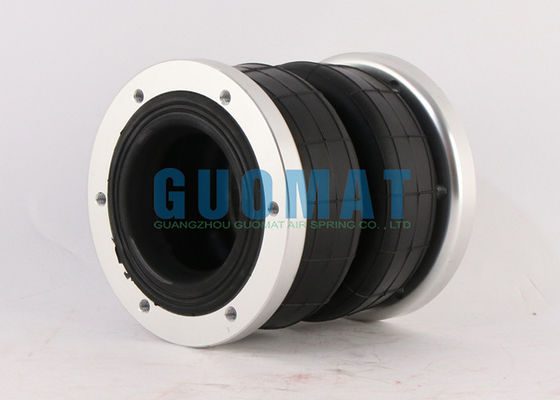

Suspension Sleeve Type Air Spring 2S2300F Double Convoluted Rubber Air Bag For Automobile Shock Absorber
Product Description
Air Suspension is a type of automotive suspension that uses air springs instead of
conventional steel springs.Computer operated vents on the air springs, suspension
sensors, and an onboard air compressor allow the system to maintain ride height
and vary the suspension's ride characteristics.
2S2300F Suspension Air Springs Technical Data
Flange: With Open Flange
Top Cover Plate Diameter: Ø134mm / 5.28in
Threaded Hole on Top Cover Plate: 6PCS X1/4''
Distance Between Threaded Holes: Ø114.5mm / 4.5in
Bottom Cover Plate Diameter: Ø134mm / 5.28in
Threaded Hole on Bottom Cover Plate: 6PCS X1/4''
Rubber Bellows Diameter: Ø 125mm / 4.9in
Natural Height: 134mm / 5.28in
Flange Thickness: 15mm / 0.6in
The Role of Air Spring
Air spring is a kind of high elastic body made of rubber. Air spring is an important part of automobile air suspension system. Air spring has excellent elastic characteristics, and has many advantages compared with ordinary steel springs, so its application range is very wide. Using air springs in automobile suspension systems can greatly improve the ride comfort and comfort of automobiles. This product has good vibration reduction effect, small resonance area, long service life, low cost, good cold resistance, excellent air tightness, water resistance, and electrical insulation. It is the best choice for vibration reduction.
Other Related Products
|
Single Convoluted Air Spring |
|
|
GUOMAT Number |
Cross Reference Number |
|
1B4060 |
FS40-6 1/8 M8,SP1B04,WBE100-E1 |
|
1B7070 |
FS70-7,SP1B05, |
|
1B5010 |
W01-358-7731 |
|
1B1209 |
W01-M58-6165,FS120-9,8"x1 ,S08101,PM/31081 |
|
1B8X4 |
W01-358-7564,1B8-550,FS120-10 |
|
1B8580 |
W01-358-7598,1B8-580 |
|
1B6910 |
W01-M58-6374,FS200-10,SP1B12,PM/31091 |
|
1B5330 |
W01-358-7008,FS330-11474,1B12-300,1B12-313 |
|
Double Convoluted Air Spring |
|
|
GUOMAT Number |
Cross Reference Number |
|
2B4060 |
FD40-10 |
|
2B7070 |
FD40-10,W01-095-0111 |
|
2B8X2 |
W01-358-7325,FD 120-17 509,2B8-150/153/550 |
|
2B5020 |
FD 120-17,113053,2B-181 |
|
2B6910 |
W01-358-6910,FD200-19 320,2B9-200,2B9-202,2B9-216 |
|
2B6330 |
W01-358-7180/22,FD 330-22 363,2B12-425/2B12-311 |
|
Triple Convoluted Air Spring |
|
|
GUOMAT Number |
Cross Reference Number |
|
3B7996 |
W01-358-7996,FT330-29 520,3B12-335 |
|
3B7994 |
W01-358-7994,FT330-29 546,3B12-328 |
|
3B8008 |
W01-358-8008,FT330-29 431,3B12-300,556-33-8-334 |
|
3B8010 |
W01-358-8010,FT330-29 432,3B12-301,556-33-8-334 |
|
3B8027 |
W01-358-8027/38,W01-358-8029,FT330-29 466,3B12-310 |
