| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B2300 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Triple Convoluted Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | Color: | Black |
| Application: | Modified Vehicle Suspension | Number Of Convolution: | 3 |
| Natural Height: | 187mm | Other Name: | Air Spring Airbag |
| High Light: | riple Bellow Suspension Air Spring,3B2300 Suspension Air Spring,Trailer Axle Suspension Air Spring |
||
3B2300/3E2300 Triple Bellow Suspension Air Spring 187mm Height Universal Air Bag For Trailer Axle
Product Description
GUOMAT 3B2300 triple convoluted air suspension spring, made of high-quality rubber and iron parts, has excellent shock absorption effect. It can be used on the suspension of trucks or trailers to reduce the vibration generated by the vehicle. It can also be used for lifting.
3B2300 Suspension Air Spring Technical Data
Number of Convolution: 3
Air Fitting: 1/2-14NPT
Threaded Hole: 3/8-16UNC
Center Distance Between Threaded Holes: 44.5mm
Distance Between Threaded Hole and Air Fitting: 22mm
Design Height: 187mm
Maximum Height: 240mm
Minimum Height: 95mm
Working Stroke :135mm
Loading cap. at 3.0bar :11.85kn.
Loading cap. at 7.0bar :31.52kn.
Product Specification
|
Item Name |
Air Spring |
|
Brand |
GUOMAT |
|
Material |
Rubber+Steel |
|
Warranty |
12 Months |
|
Application |
For Modified Car Suspension |
|
Other Name |
Triple Rubber Air Spring |
| MOQ | 10 PCS |
| Payment | L/C,T/T,Western Union,PayPal |
| Function | Reduce vibration and lift |
| Our Products | Air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field. |
What is a Modified Car Air Spring
A modified car air spring is a type of air suspension system that replaces conventional coil springs with air bag suspension . It is designed to provide a smooth and comfortable ride while also allowing for adjustable spring rates and improved handling. These air springs are often installed on modified cars that have been customized for performance and aesthetics. There are various types of modified car air springs available with different designs suited for specific purposes.
About Packaging and Shipping
Packaging: Due to international transportation, we pack them in brown cartons and wrap them with film to prevent package damage and water ingress. If it is shipped by sea, we will use pallets to pack.
Transportation: Generally, the transportation method is determined according to the size of the order. If it is a small order, it will be shipped by express, such as FedEx, DHL, EMS and so on. If the volume of goods is large and the time limit is fast, air transportation will be used. If the volume of goods is large and the speed is slow, sea transportation will be used.When the goods are shipped, we will send the waybill number to you for inquiry. If you have any questions, please feel free to contact us.

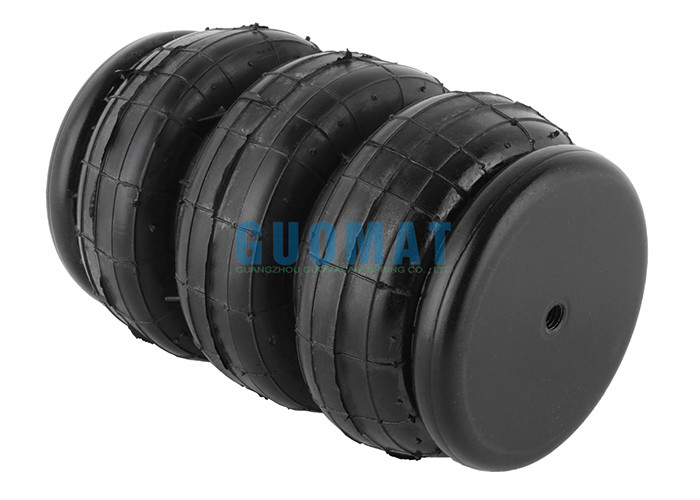

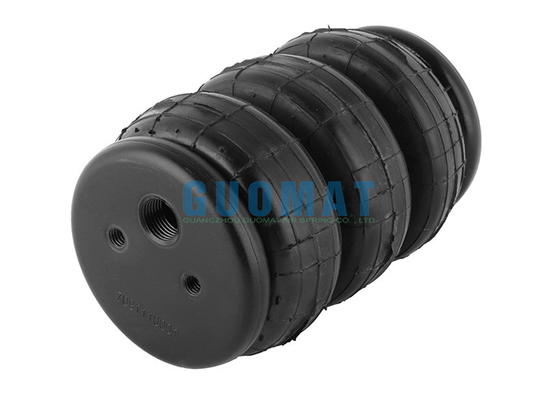

The Real Picture of 3B2300/3E2300 Air Suspension Spring
