Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B 5813 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $59.9-69.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Stock: | Yes | Name: | Suspension Air Spring |
---|---|---|---|
Material: | Rubber Bellow And Steel | Warranty: | 1 Year Warranty |
Position: | Front/Rear | Shock Absorber Type: | Gas-Filled |
Condition: | Brand New | Package: | Standard Packing Or Customized |
High Light: | W01-358-5813 Double Suspension Air Spring,2B5813 Double Suspension Air Spring |

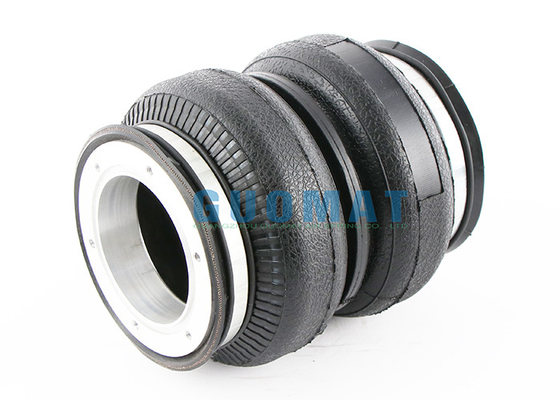

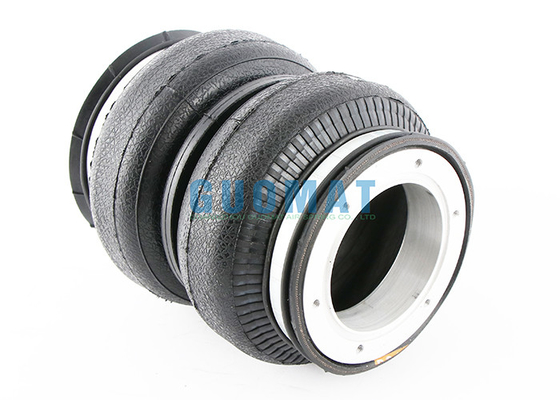

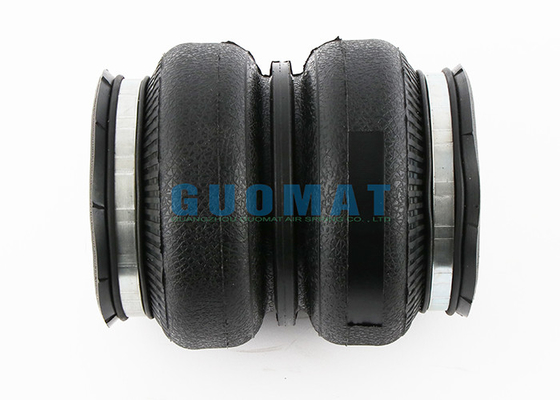

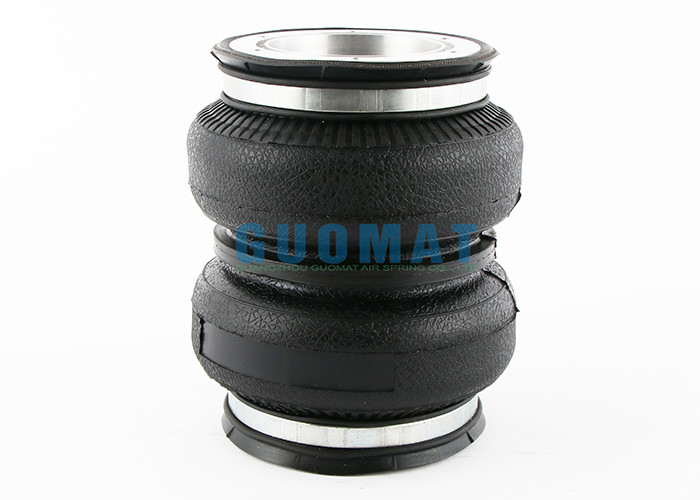

W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
Product Description
Item: Air Suspension Spring
Brand: GUOMAT
Model Number: 2B5813
MOQ: 3 Pieces
Warranty: 12 Months
Material: Natural Rubber
Car Model: Modified Cars and Trucks
Operation: Gas-filled
Packing: Strong Carton Box Or As Customers Need
Top cover diameter |
105.5mm |
Threaded hole |
3/8-16UNC |
Air Fitting |
PT1/4 |
Center distance between threaded holes |
69.5mm |
Distance between threaded hole and air hole |
35mm |
Bottom cover diameter |
105.5mm |
Center distance between threaded holes |
69.5mm |
Natural height |
188mm |
The rubber bellow natural outer diameter |
141mm |
Function of Suspension Air Spring
Air Lift Single Convoluted Air Spring
Bellows |
P/N |
Replace Kit P/N |
Max.Ext. Height |
Comp. Height |
Max. Dia. |
Design Height |
Air Fitting |
Top Fastener |
Bottom Fastener |
1B-5 |
58103 |
502007 |
5.8 |
1.8 |
6.5 |
3.5-5.0 |
1/4'' |
3/8''-16 |
/8''-16 |
1B-6 |
58407 |
50352 |
7.1 |
1.9 |
7.0 |
4.0-6.0 |
1/8'' |
3/8''-24 |
3/8''-24 |
1B-6** |
58736 |
50284 |
7.1 |
2.7 |
7.0 |
4.0-6.0 |
1/8'' |
3/8''-24 |
3/8''-24 |
1B-6 Ultimate |
58740 |
|
7.0 |
2.7 |
7.0 |
4.0-6.0 |
1/8'' |
3/8''-24 |
3/8''-24 |
1B-8 |
58124 |
50211 |
7.3 |
1.8 |
9.4 |
4.0-6.5 |
1/4'' |
3/8''-16 |
3/8''-16 |
