Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 3B7808 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $69.9-79.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Name: | Suspension Air Spring Assembly | Material: | Rubber Bellow And Aluminum Cover |
---|---|---|---|
Warranty: | 1 Year Warranty | Sample: | Available |
Convolutions: | 3 | Goodyear: | 3B14-354 |
Natural Height: | 282mm | Hendrickson: | S13157 |
High Light: | W01-358-7808/313 Suspension Air Spring,Firestone Plate Suspension Air Spring |

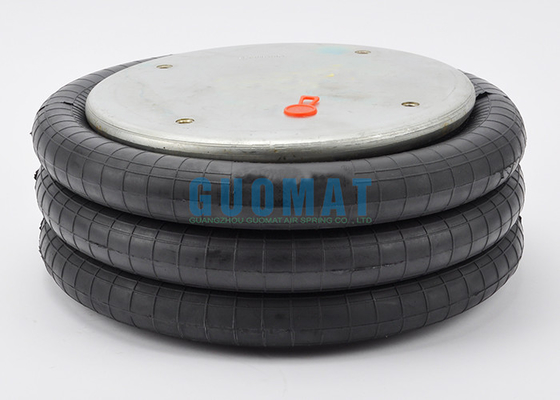

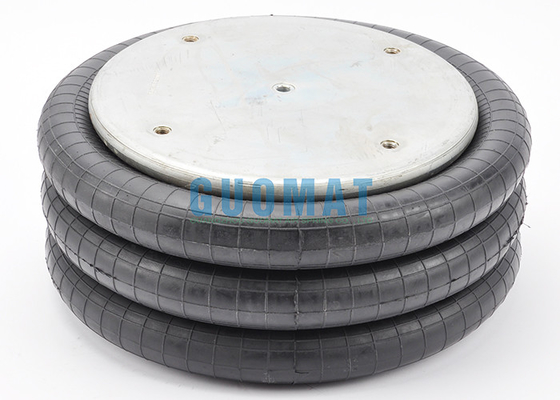

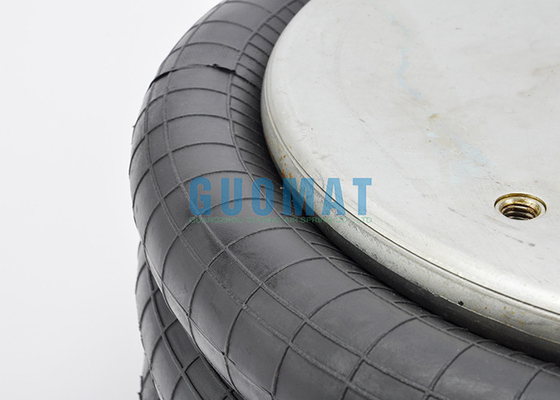

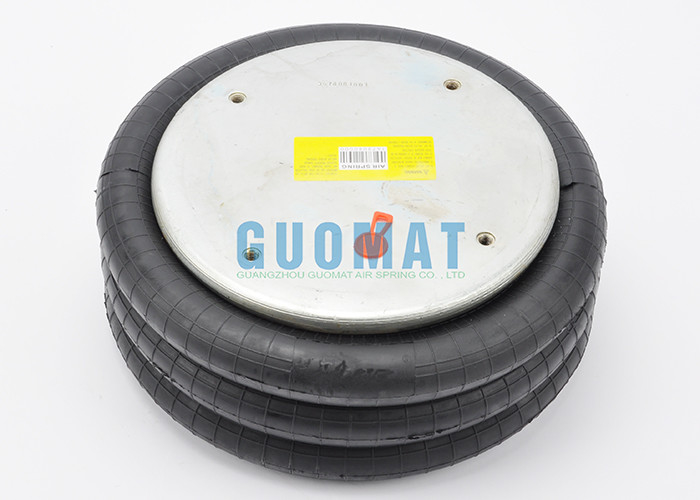

Firestone Plate Industrial Rubber Bellows W01-358-7808/313 Suspension Air Spring
Product Description
Original Equipment Manufacturing Number
AUTOMANN Number: ABSP3B32R-7808
E-Z RIDE Number: 8030170
INT'L/NAVISTAR Number: 554801C1
LOAD GUARD Number: SC2031
PEERLESS Number: 050-00030
RIDEWELL Number: 1003587808C
RIDEWELL Number: S-4830-C
TRIANGLE Number: 4336
TRP Number: AS78080
TRUCKSTELL Number: 63640
Continental ContiTech: FT 530-32 336
Continental ContiTech Order No.: 64506
Continental ContiTech: FT530-32 336
Continental ContiTech Order No.: 64506
Firestone No.: W01-358-7808 / W01 358 7808 / W013587808
Firestone No.: WO1-358-7808 / WO1 358 7808 / WO13587808
Firestone Style: 313
Goodyear No.: 3B14-354 / 3B 14-354 / 3B14354
Goodyear Flex No.: 578-93-3-350 / 578 93 3 350 / 578933350
3B7808 Suspension Air Spring Technical Data
The diameter of the top cover is 289mm, the size of the air holes is 1/4NPT, the number and size of the threaded holes are 4X3/8-16UNC. The center distance between the threaded holes is 158.8mm.
The diameter of the bottom cover is 289mm, and the number and specifications of the threaded holes are 4X3/8-16UNC. The center distance between the threaded holes is 158.8mm.
The natural outer diameter of the air spring is 356mm, the natural height is 282mm, and it is 3 convolutions.
Triple Convoluted Suspension Air Spring
GUOMAT No. |
GOODYEAR No. |
FIRESTONE No. |
CONTITECH No. |
3B8008 |
3B12-300 |
W01-358-8008 |
FT 330-29 431 |
3B8010 |
3B12-301 |
W01-358-8010 |
FT 330-29 432 |
3B8018 |
3B12-303 |
W01-358-8018 |
FT 330-29 434 |
3B8006 |
3B12-304 |
W01-358-8006 |
FT 330-29 503 |
3B8027 |
3B12-310 |
W01-358-8027 |
FT 330-29 525 |
3B8032 |
3B12-319 |
W01-358-8032 |
FT 330-29 413 |
3B7994 |
3B12-328 |
W01-358-7994 |
FT 330-29 546 |
3B7990 |
3B12-329 |
W01-358-7990 |
FT 330-29 546 |
3B7996 |
3B12-335 |
W01-358-7996 |
FT 330-29 520 |
