| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B5240 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Brand: | GUOMAT/Customized | Sample: | Available |
| Application: | Modified Vehicle Suspension | Color: | Black |
| Convolutions: | 2 | Function: | Lifting Suspension |
| High Light: | 160mm Rubber Air Spring,2B5240 Rubber Air Spring,Vehicle Suspension Air Spring |
||
High Quality 2B5240 Vehicle Air Suspension 160mm Rubber Air Spring Balloon
Product Description
Item Name: Air Spring,Air Shock Absorber
Item No.: 2B5240
Material: Rubber and Steel
Warranty: 1 Year
Spring Type: Gas Filled
Function: Reduce Shock
Package: Carton
Payment Terms: FOB,EXW,CNF,CIF
Shipment: By sea,By air, By express
Detailed Technical Data and Parameters:GUOMAT 2B5240
| Top cover diameter: 111mm |
| Air hole specification: 3/8NPT |
| Top cover screw thread specification: 2X3/8-16UNC |
| Center distance between screw teeth: 44.5mm |
| Center distance between screw thread and air hole: 22mm |
| Bottom cover diameter: 111mm |
| Bottom cover screw thread: 1X3/8-16UNC |
| Natural height: 160mm |
| Natural outer diameter: 121mm |
| Cover thickness;16.5mm ± 0.5mm |
The Role of Vehicle Suspension Air Springs
Vehicle suspension air springs play a crucial role in enhancing the performance and functionality of a vehicle's suspension system. Here are the key points about the role of vehicle suspension air springs:
Load Capacity Enhancement: Air springs, also known as "air helper springs," are utilized to increase the load capacity of vehicles, particularly for those towing or hauling heavy loads with their pick-up trucks, SUVs, vans, or cars. By placing air springs on existing suspension components, the load capacity of the vehicle can be increased, providing support for heavy loads .
Adjustable Load Support: One of the advantages of using air suspension as a load support enhancement is the ability to deflate the air springs when not towing or hauling, thereby maintaining the factory ride quality. This adjustable load support feature allows for flexibility in managing the vehicle's load capacity based on the specific requirements at any given time .
Smooth and Constant Driving Quality: Air suspension systems are primarily used to achieve a smooth and constant driving quality. They provide a comfortable and consistent ride experience, especially in heavier vehicle applications, by replacing conventional steel spring suspensions with airbags composed of polyurethane and rubber.
Height Adjustment: The air spring system can easily adjust the height of the suspension while the vehicle is in motion, resulting in improved stability, handling, and consistent ride height. This feature allows for adaptive height adjustments to accommodate changes in weight and height of the vehicle, contributing to enhanced overall performance .
Electronic Control: Some air suspension systems, such as the Electronic Controlled Air Suspension (ECAS), are equipped with electronic controls that enable precise management of the air springs. These electronic controls allow for fine-tuning the suspension system to adapt to different driving situations and load conditions .
In summary, vehicle suspension air springs play a vital role in enhancing load capacity, providing adjustable load support, ensuring smooth driving quality, enabling height adjustments, and offering electronic control for optimized performance and functionality of the vehicle's suspension system.

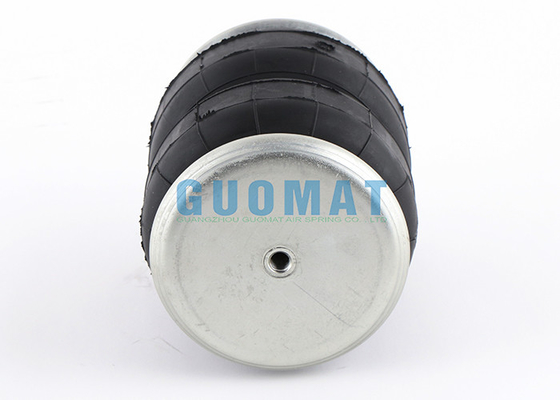

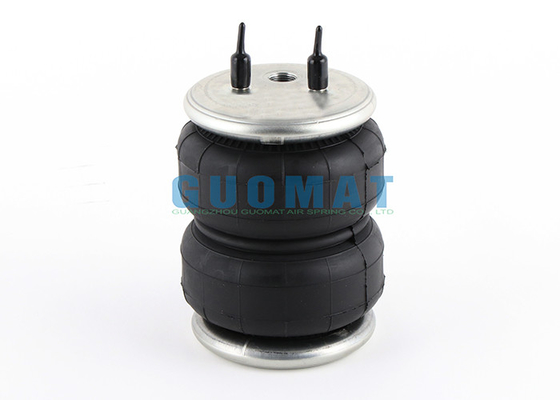

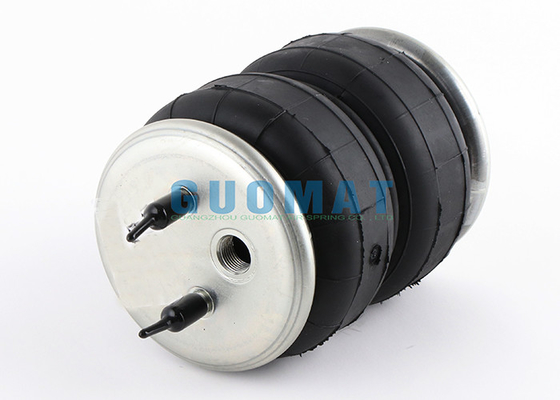

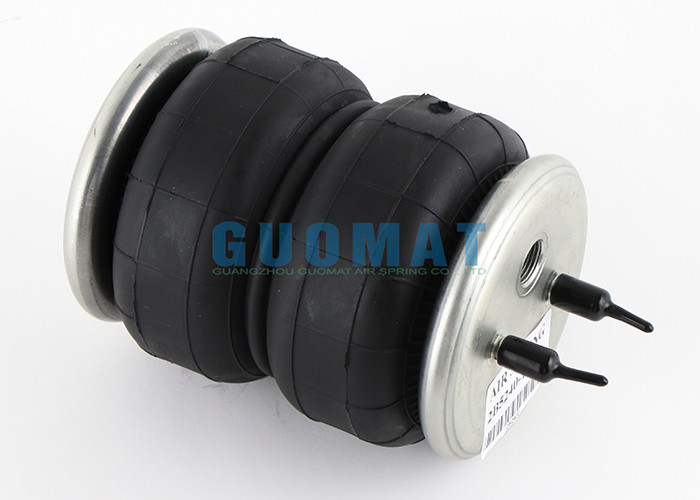

2B5240 Rubber Suspension Air Spring Real Picture
