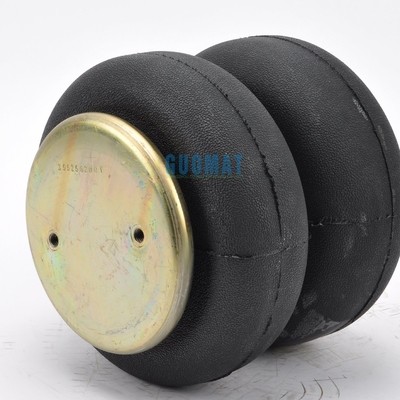

W01-358-6926 Universal Double Convoluted Air Spring FD 200-19 504 Contitech Air Suspension

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6926

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Neutral packaging or customer's requirements
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Bellows NO.:	2B 200	Sample:	Available
Quality:	100% Tested	Trademark:	GUOMAT
Warranty:	1 Year	Firestone Number:	W01-358-6926
Contitech Number:	FD 200-19 504	Gas Hole:	1/4NPT
Highlight:	Universal Double Convoluted Air Spring , W01-358-6926 Double Convoluted Air Spring

W01-358-6926 Universal Double Convoluted Air Spring FD 200-19 504 Contitech Air Suspension

Type	Convoluted Air Spring
Item NO.	2B 200
Rubber Type	Natural Rubber
Material	Rubber And Metal
Plate Dia.	160mm
Max Dia.	251mm
Fire stone	W01-358-6926
Contitech	FD 200-19 504 161299
Triangle	6325/4504
Load share
RR Load	Ls20
MOQ	1 PCS
Warranty	12 Months
Package	Carton
Payment	L/C T/T Western Union
Port of shipment	Huangpu,Guangzhou
Shipment	By Sea,By Air,By Express

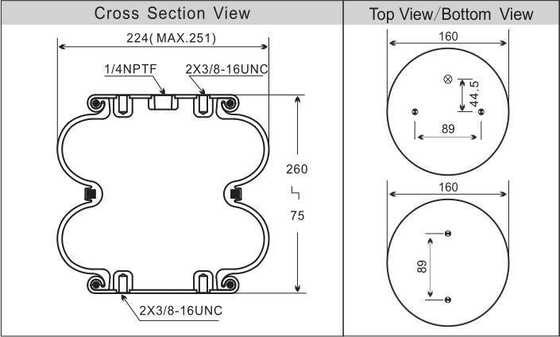

To be sure you choose the correct replacement air bag,We provide the following product data.

Top Cover Plate Dia.:160mm

Bottom Cover Plate Dia:160mm

Screw Center Distance:89mm

Distance Gas Hole Between Nuts:44.5mm

Gas Hole Type:1/4NPTF

Screw(Nut)Tooth:2 X 3/8-16UNC

Rubber Bellows Dia.:224mm(MAX.215mm)

The Stroke:75~260mm

AIR SPRING

OEM Supplying Experience
Fast And Steady Products Delivery
All Range Of Vehicles Model Covered
Constant And Stable Quality Endurance

It is use in a wide variety of actuation and vibration isolation.

With time-tested designs incorporating fabric-reinforced or natural rubber flex-member construction and corrosion-protected and retainers, Air Springs provide superior quality and performance.

As an actuator, Air Springs can provide either linear or angular motion.

These air springs offer a favorable stroke-to-compressed-height ratio when compared to air cylinders,and can accept a wide variety of actuation media such as air,water,nitrogen or anti-freeze.

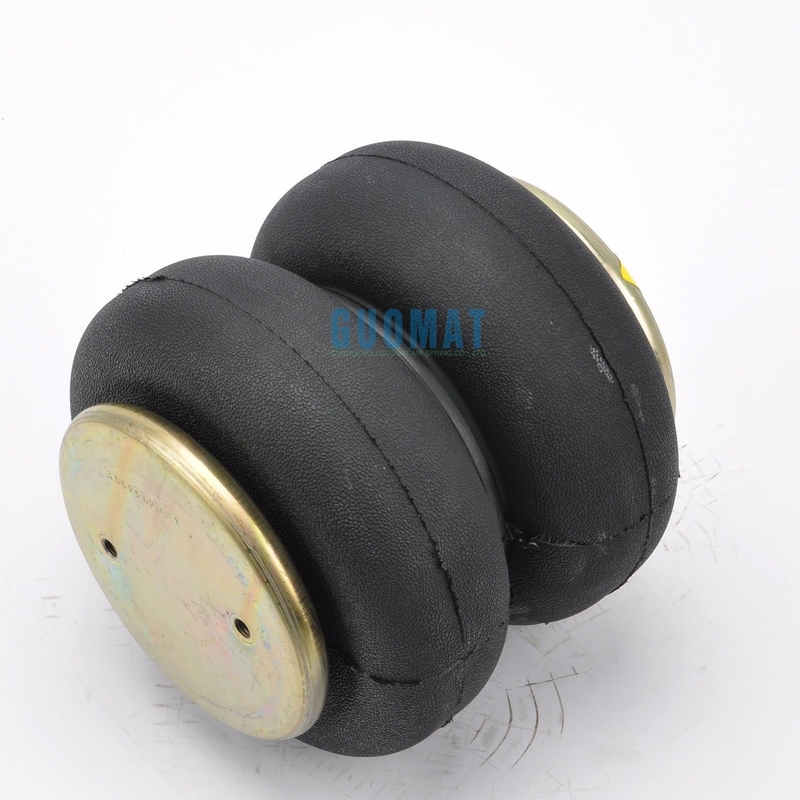

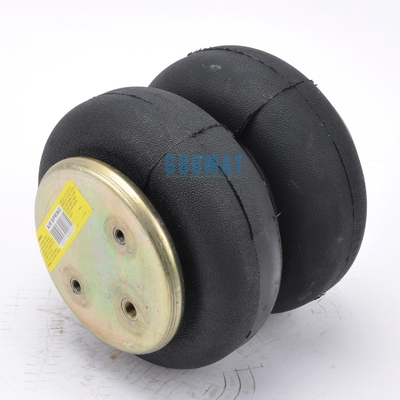

W01-358-6926 Universal Double Convoluted Air Spring FD 200-19 504 Contitech Air Suspension 0
