Firestone W01-358-7731 Industrial Air Spring Bellow Style 131 Two Ply Bellows

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B7731

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B7731	Refer No.:	W01-358-7731
Quality:	100% Testing	Trademark:	GUOMAT
After-sales Service:	12 Months	Type:	Gas-Filled
Spring Type:	Air Spring	Customization:	Available \| Customized Request
Highlight:	W01-358-7731 Industrial Air Spring , Industrial Air Spring Gas Filled

Firestone W01-358-7731 Industrial Air Spring Bellow Style 131 Two Ply Bellows

Product Information

Air Inlet	1/4 NPT
Minimum Height	2 inches
Maximum Height	4.5 inches
Stroke Height	2.5 inches
Nuts Type	3/8-16 blind nuts(5/8 deep)
Nuts Center Distance	1.75 inches
Distance Gas Hole Betweeen Nuts	0.875 inches
Top/Bottom Cover Plate	4.5 inches
Bellows Max. Diameter	6.5 inches

Cross References

Blind nuts, 1/4 NPT	W01-358-7731, W01 358 7731, W013587731 WO1-358-7731, WO1 358 7731, WO13587731
Blind nuts, 3/4 NPT	W01-358-7742, W01 358 7742, W013587742 WO1-358-7742, WO1 358 7742, WO13587742,
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)	W01-358-0127, W01 358 0127, W013580127 WO1-358-0127, WO1 358 0127, WO13580127
3/4 NPT (only) upper plate, blind nuts lower plate	W01-358-7729, W01 358 7729, W013587729 WO1-358-7729, WO1 358 7729, WO13587729
Rubber bellows onl	W01-358-0131, W01 358 0131, W013580131 WO1-358-0131, WO1 358 0131, WO13580131

The Advantage of The Product

This air spring is for damping. Its a rubber and fabric bladder that houlds air pressure to support a load and isolate passsagers and cargo from the shovk of motion caused by road irregularities. As the air prressure increases, the air spring can support more load while the spring rate increased. The larger the air spring, the greater the maximum load it can support. Compared to traditional springs, it is more competitive. And its advantages are as follow:
1.The low cost,wide range of specifications.
2.The long service life, no maintenance and lubriction, without the need for internal control rod or piston.
3. No friction effect, soft medium.
4. It hasexcellent bending capacity, laterial losd capacity and compact original height.

FAQ

Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.

Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.

Q5: How about your delivery time?
It is 3-8 working days as per our experience.

The Drawing of The Product

Refer to Fire-Stone W01-358-7731 Style Single Convoluted Industrial Air Springs

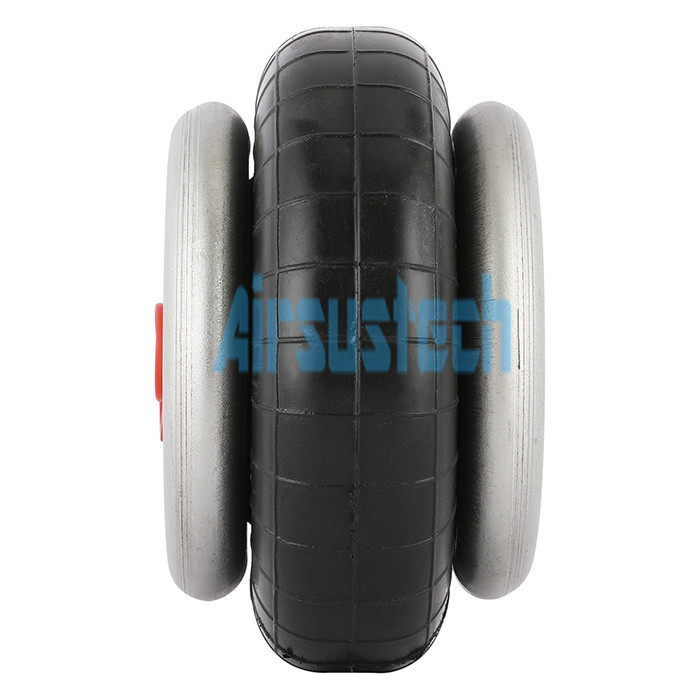

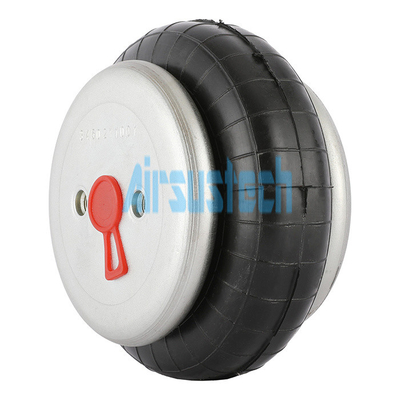

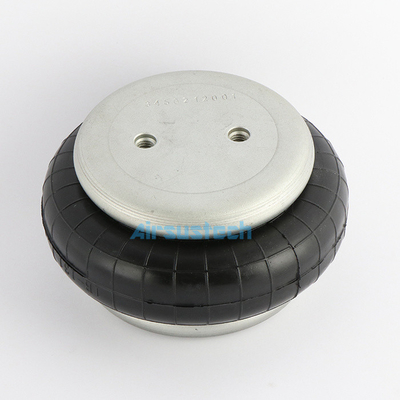

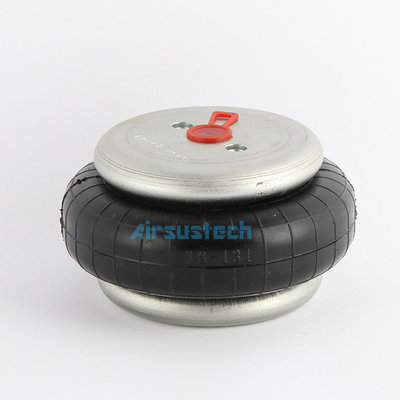

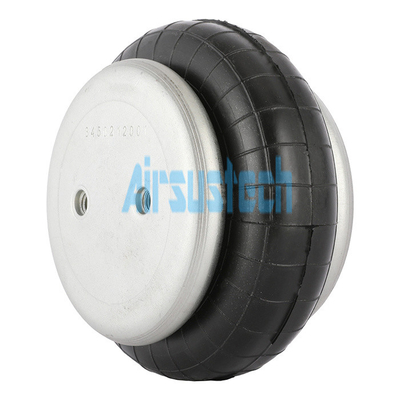

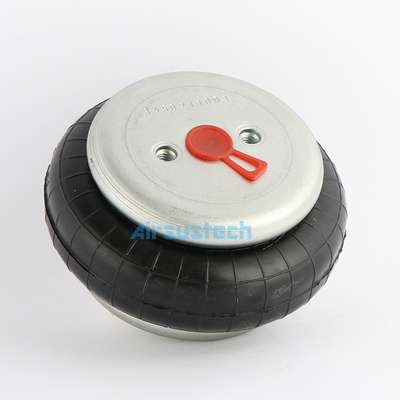

The Picture of The Product

Refer to Fire-Stone W01-358-7731 Style Single Convoluted Industrial Air Springs
