W01-M58-5216 Firestone Air Spring Suspension Double Rubber Convoluted Air Actuator

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B5216

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B5216	Fire Stone:	W01-M58-5216
Type:	Gas-Filled	Customization:	Available \| Customized Request
Brand Name:	Guomat	Cover Plate:	132 MM
Minimum Height:	75 MM	Maximum Height:	80 MM
Highlight:	W01-M58-5216 Firestone Air Spring , Double Rubber Convoluted Firestone Air Spring

W01-M58-5216 Firestone Air Spring Suspension Double Rubber Convoluted Air Actuator

OEM NO.

Fire stone	W01-M58-5216
Fire stone	WO1M585216
Fire stone	WO1-M58-5216
Fire stone	W01M585216
FIRE STONE	W01-M58-5216
FIRE STONE	WO1M585216
FIRE STONE	WO1-M58-5216
FIRE STONE	W01M585216

Specifications and Detailed Technical Parameters: Guoamt 2B5216

Nut/blind nut

Top plate screw (nut) teeth:2XM10×1.5

The screw center distance of the top cover plate: 70mm

Screw (nut) teeth of the bottom cover plate:2XM10×1.5

The screw center distance of the bottom cover plate: 70 mm

Air hole/air inlet/air fittings

Air hole/air inlet: G1/2

The screw center distance between the air hole and the nut: 35mm

Cover plate

Top plate diameter: 132 mm

Diameter of the bottom cover: 132mm

Bell rubber bellows

Rubber bellows diameter: 203mm

The Maximum Height: 230mm

The Minimum Height: 75 mm

Bumper block/bumper block

No bumper block

Belt loop/Belt loop

With belt loop: One belt loop

About Us
We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know.
We are looking forward to establishing business with you.

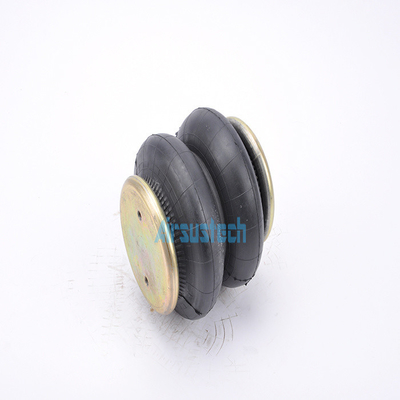

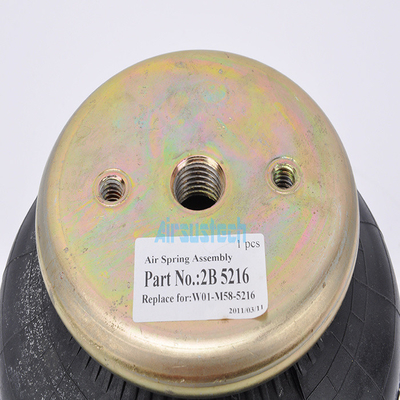

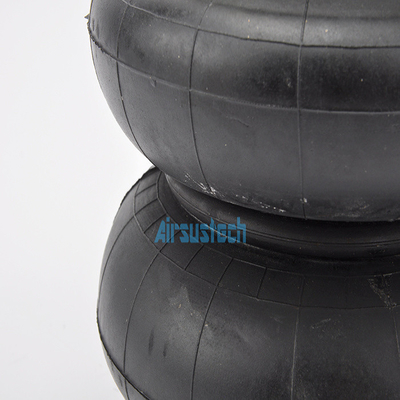

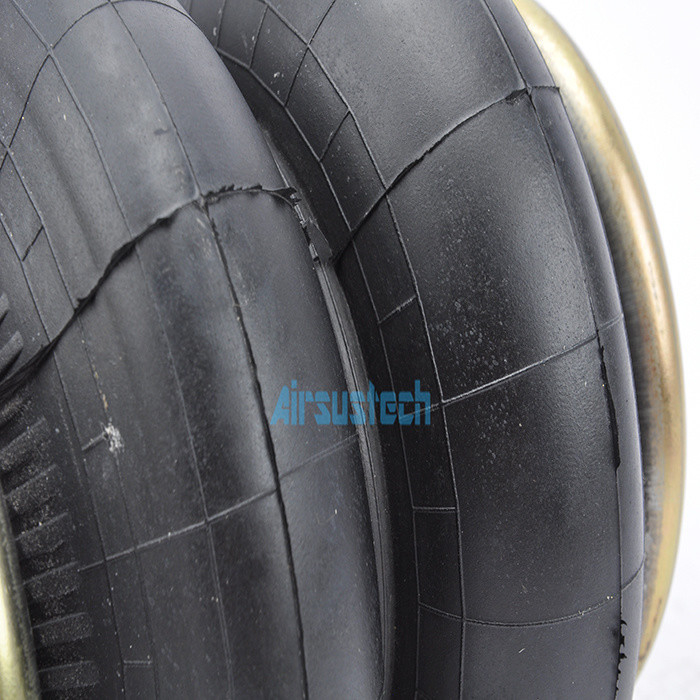

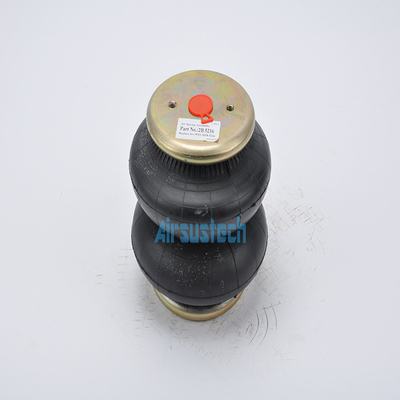

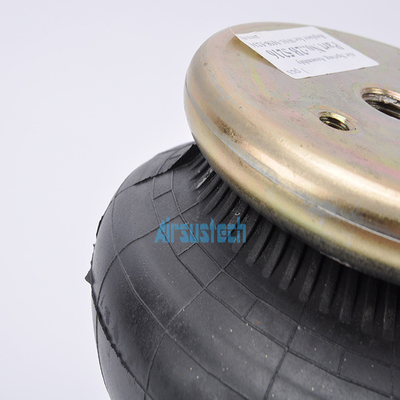

The related picture

Double Rubber Convoluted Air Spring 5216 Replace for W01-M58-5216 Air Bags

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
