280126H-1 Air Shock Absorber Maximum Diameter 300mm Bags Air Spring Assembly

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	280126h-1

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Material:	Rubber	Quality:	100 % Tested
Fuction:	Reduce Shock	Key:	280126h-1
Manufacturer:	GUOMAT	After-sales Service:	12 Months
Operation:	Gas-Filled	Structure:	Single Convolution
Highlight:	300mm Diameter Air Spring Assembly , 280126H-1 Air Spring Assembly

280126h-1 Air Shock Absorber Maximum Diameter 300mm Bags Air Spring Assembly

Specifications and Detailed Technical Parameters: 280126H-1

Model

Nominal

diameter

The largest

diameter

(0.7MPA)

Bearing capacity at design height

Stroke

Weight

Natural frequency

(0.7MPA)

0.2MPA

0.5MPA

0.7MPA

Minimum compression height

Height of safe elongation

280126H-1

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 10×M10
Bottom Cover Plate Screw (Nut) Tooth :10×M10

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

Cover Plate

Top Cover Plate Diameter:220mm
Bottom Cover Plate Diameter: 220mm

Rubber Bellows

Rubber Bellows Natural Diameter : 285 mm
Rubber Bellows Natural Diameter :132 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

Without Girdle Hoop

Other types:

Model Size	Nominal diameter	The largest diameter(0.7MPA)	Bearing capacity at design height			Natural frequency(0.7MPA)	Stroke		Weight
Model Size	Nominal diameter	The largest diameter(0.7MPA)	0.2MPA	0.5MPA	0.7MPA	Natural frequency(0.7MPA)	Minimum compression height	Height of safe elongation	Weight
086060H-1	50	110	44	123	175	5.18	42	90	1
120060H-1	80	130	122	313	444	3.79	42	65	1.6
150076H-1	104	160	164	435	621	3.5	46	85	1.4
188102H-1A	120	210	208	587	862	3.05	52	115	2.25
215120H-1	125	233	294	768	1109	2.83	42	140	2.9
235118H-1	180	260	474	1185	1684	2.52	60	136	2.6
235150H-1	180	260	441	1205	1740	2.29	65	172	3.1
260135H-1	170	290	425	1150	1670	2.4	55	155	2.95
280126H-1	195	300	643	1662	2370	2.46	50	144	3.75
320124H-1	230	340	798	2071	2965	2.28	52	142	3.9
130142H-2	80	150	80	219	314	3.12	72	162	4.4
156130H-2	118	170					70	146	3.15
160166H-2	100	175	149	413	593	2.3	82	190	2.35
168132H-2	120	185	229	589	832	2.53	72	151	2.2
200142H-2	150	220	326	843	1195	2.02	78	162	3.05
220200H-2	148	250	354	920	1310	1.89	90	229	3.22
230214H-2	150	255	388	1023	1457	1.93	88	246	4.05
235152H-2	180	250	461	1180	1667	1.91	80	174	3.25
235210H-2	180	250					80	245
250180H-2	185	270	520	1345	1904	1.74	84	206	3.95
252163H-2	192	275	422	1142	1644	1.73	82	238	4.2
260230H-2	170	290	374	1036	1506	1.78	90	263	4.85
280214H-2	200	305	668	1741	2480	1.68	88	246	5.57
290265H-2	205	320	440	1250	1800	1.19	90	303	6.55
300170H-2	240	320	849	2156	3045	1.74	85	195	5.35
310214H-2	230	330	813	2078	2992	1.89	88	245	7
330214H-2	250	355	1064	2749	3897	1.65	88	246	7.75
330254H-2	230	355	861	2222	3166	1.75	88	290	7.24
350255H-2	250	380	1095	2851	4098	1.45	90	295	8.2
360214H-2	280	380	1250	3220	4570	1.36	88	246	7.9
380221H-2	300	405	1432	3765	5352	1.34	90	255	8.5
400217H-2	320	430	1753	4450	6300	1.66	90	249	11.1
400255H-2	300	430	1465	3752	5256	1.55	90	295	10.4
430255H-2	330	460	1760	4526	6427	1.43	90	295	10.2
480217H-2	400	510	2723	6850	9700	1.27	88	249	13.8
520217H-2	440	550	3070	7850	11094	1.41	90	249	14.5
580214H-2	500	600	3978	10137	14293	1.65	88	246	13.3
630262H-2	530	660	4371	10585	15801	1.48	90	300	19.9
680262H-2	580	710	5278	13596	19313	1.35	90	302	18.6
200206H-3	150	220	229	634	888	1.68	116	236	3.75
250260H-3	185	270	507	1344	1924	1.7	116	299	5.5
255230H-3	200	280	566	1460	2070	1.3	116	264	5.55
255322H-3	200	290					116	400	5.85
310306H-3	230	330	861	2239	3170	1.3	120	354	7.3
330306H-3	250	355	1035	2730	3892	1.4	120	354	8.69
360306H-3	280	380	1250	3220	4570	1.3	122	360	8.25
380316H-3	300	405	1401	3672	5235	1.32	122	370	10.95
400312H-3	320	430	1724	4436	6308	1.19	122	360	11.8
430370H-3	330	460	1716	4435	6333	1.20	122	430	13.8
480312H-3	400	510	2650	6883	9768	1.17	122	360	16.5
520312H-3	400	550	3046	7932	11262	1.32	122	360	20.1
580306H-3	500	600	3950	10181	14409	1.22	118	354	19.16
630376H-3	530	660	4243	11045	45612	0.94	122	436	24.1
680376H-3	580	710	5259	13620	19339	1.27	122	436	27.6

Warning

Please pay attention to the following two points when using this product
1. Be sure to comply with the pressure regulations. Applying pressure in excess of the regulations may damage the product or cause serious injury to the human body.
2. Please confirm whether the product is damaged at any time. The occurrence of damage will reduce the durability of the product and lead to rupture.

FAQ

Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

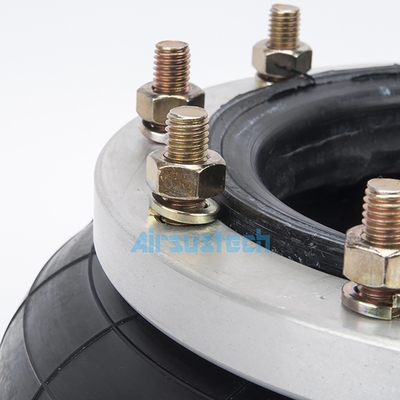

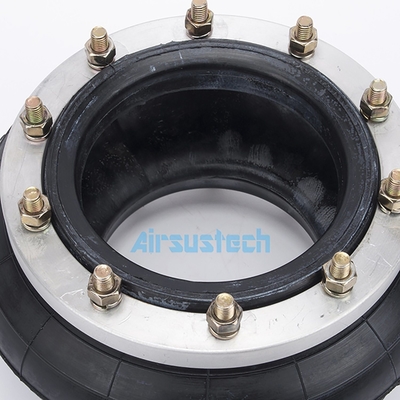

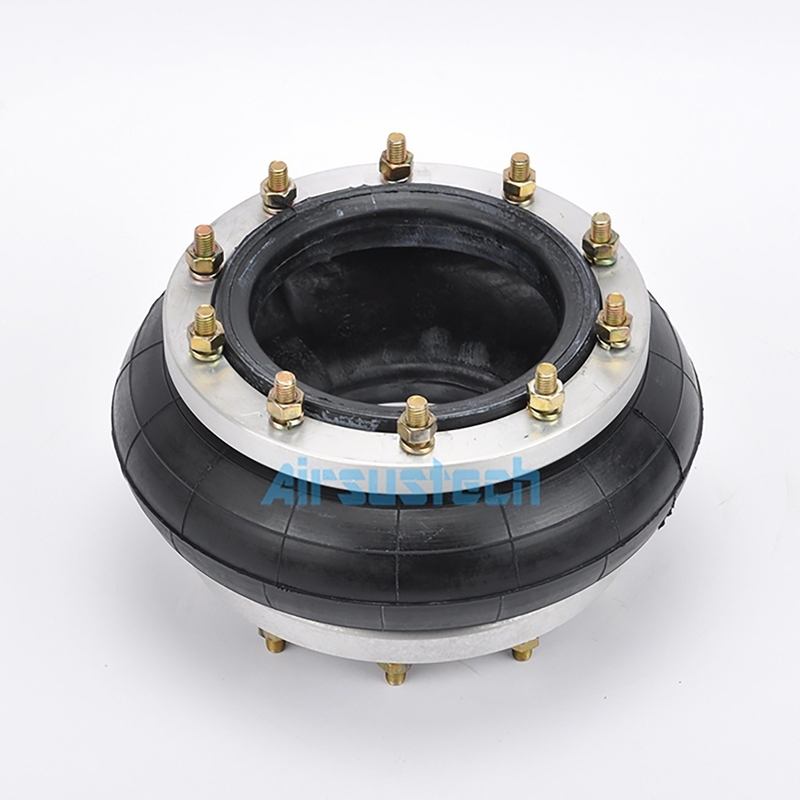

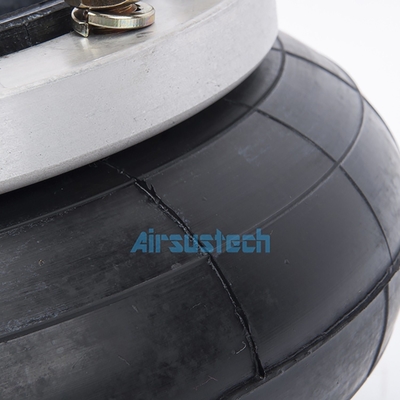

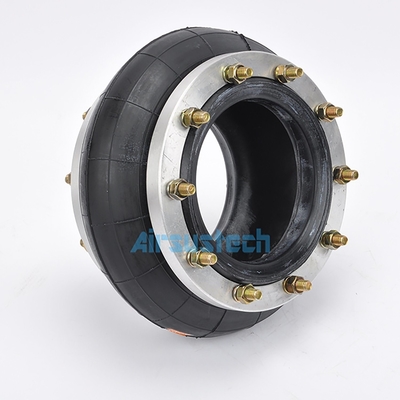

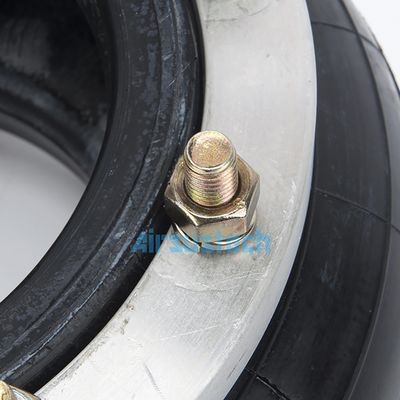

The related picture of 280126H-1
280126h-1 Industrial Air Springs Single Convoluted Max Diameter 300mm Bags

Factory workshop
280126h-1 Industrial Air Springs Single Convoluted Max Diameter 300mm Bags
