Phoenix Sp 1 B 07 Suspension Air Spring Single Convoluted Air Bag G1/4 Gas Hole

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B5022

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Prodcut NO.:	1B5022	Fuction:	Reduce Shock
Key:	Phoenix Sp 1 B 07	Trademark:	GUOMAT
Materail:	Rubber And Stainless	Structure:	Single Convoluted
Operation:	Gas-filled	Air Hole:	G 1/4
Highlight:	Phoenix Sp 1 B 07 Suspension Air Spring , Single Convoluted Suspension Air Spring

Phoenix Sp 1 B 07 Suspension Air Spring Single Convoluted Air Bag G1/4 Gas Hole

Specifications and Detailed Technical Parameters: 1B5022

Top plate screw (nut) teeth	2×M8×1.25
The screw center distance of the top cover plate	53mm
Screw (nut) teeth of the bottom cover plate	2×M8×1.25
The screw center distance of the bottom cover plate	53mm
Air hole/air inlet	G1/4
Top plate diameter:	135 mm
Diameter of the bottom cover	135 mm
MAX. Rubber Bellow Diameter	215mm

Cross References

Phoenix SP 1 B 07
Phoenix SP1 B 07
Phoenix SP1B 07
Phoenix SP1B07
Phoenix SP 1B 07
Phoenix SP 1B07

Applications

Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as

Flexibility (no angle or alignment problem)
Compactness
Power / price ratio
No maintenance or lubrication required
Durability
Reliability
Resistance to aggressive or hot conditions

Other Types we can offer

SP 1 B 04	SP 2 B 05 R-a	2B 07 R	2B07R
SP 1 B 05	SP 2 B 07 R	2B 12 R	2B12R
SP 1 B 07	SP 2 B 12 R	2B 12 R-3	2B12R-3
SP 1 B 12	SP 2 B 12 R-1	2B 15 R	2B15R
SP 1 B 22	SP 2 B 12 R-2	2B 20 R	2B20R
SP 1 B 34	SP 2 B 12 R-3	2B 20 R-9	2B20R-9
SP1B04	SP 2 B 22 R	2B 21 R	2B21R
SP1B05	SP 2 B 34 R	2B 21 R-9	2B21R-9
SP1B07	SP 2 B 34 R-b	2B 22 R	2B22R
SP1B12	SP2B05R-a	2B 22 R a-9	2B22Ra-9
SP1B22	SP2B07R	2B 34 R	2B34R
SP1B34	SP2B12 R	2B 34 R-b	2B34R-b
	SP2B12R-1	2B 49 R-a	2B49R-a
	SP2B12R-2	2B 49 R-b	2B49R-b
	SP2B12R-3	2B 85 R	2B85R
	SP2B22R	2B 85 R-a	2B85R-a
	SP2B34R
	SP2B34R-b

The Reason Why Choose Us?

1. Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.
2. Respond promptly. We generally reply within one day.
3. Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.

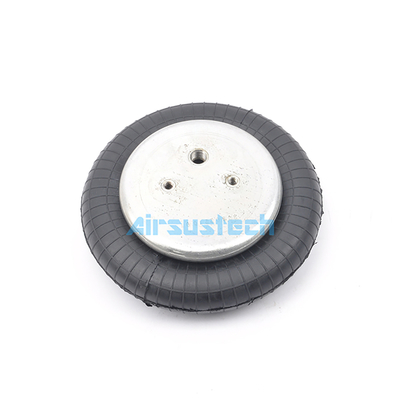

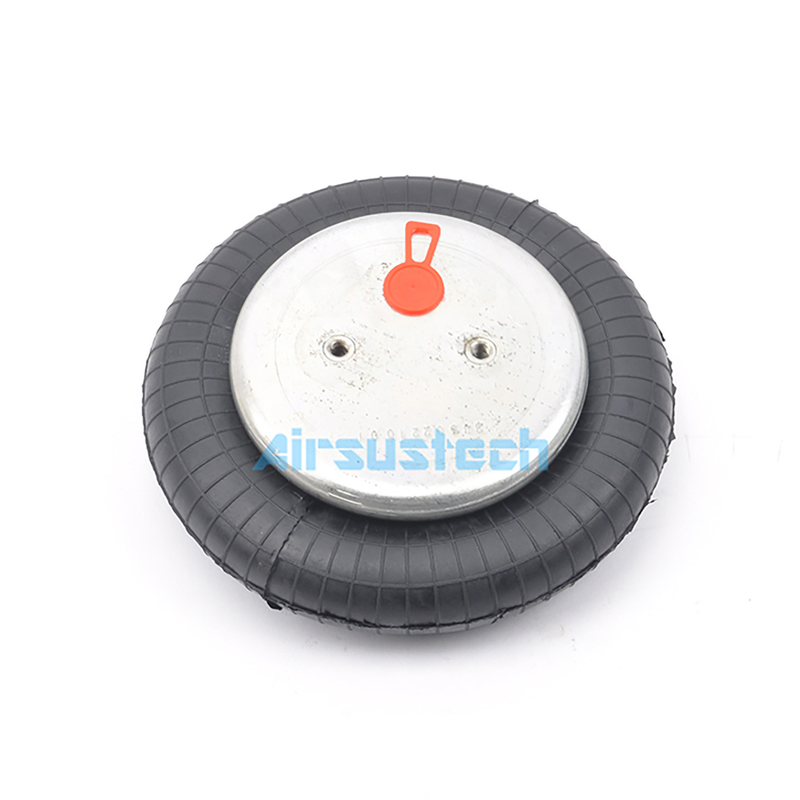

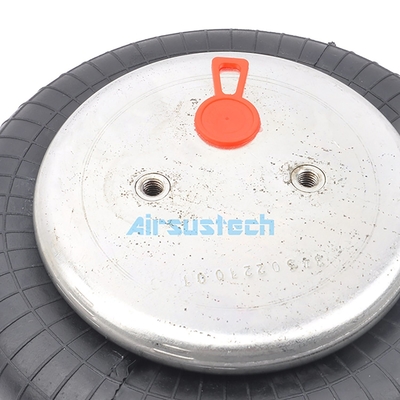

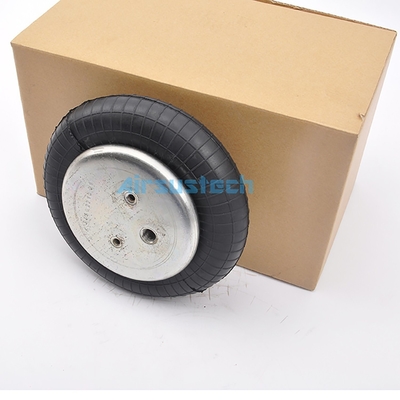

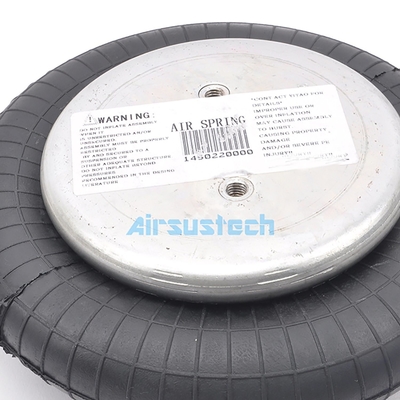

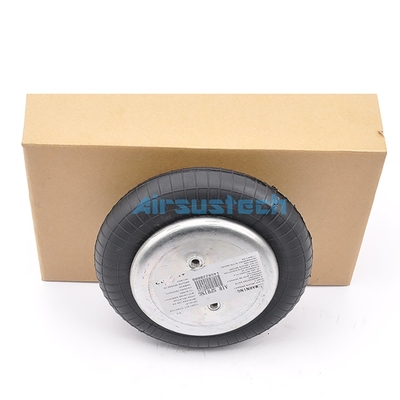

The related picture of 1B5022

Phoenix Sp 1 B 07 Suspension Air Spring Single Convoluted Air Bag G1/4 Gas Hole 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Phoenix Sp 1 B 07 Suspension Air Spring Single Convoluted Air Bag G1/4 Gas Hole 1

Factory workshop
