Industrial Air Bags 1B53014 G1/2 Air Inlet Rubber Bellows Air Shock Absorption

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B53014

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B53014	Structure:	Single Convolution
Brand Name:	Guomat	Damping Force Direction:	Bidirectional
Origin:	Guangzhou, China	Warranty:	12 Months
Operation:	Gas-Filled	Customization:	Available \| Customized Request
Highlight:	1B53014 Industrial Air Bags , Rubber Bellows Industrial Air Bags

Industrial Air Bags 1B53014 G1/2 Air Inlet Rubber Bellows Air Shock Absorption

Specifications and Detailed Technical Parameters: 1B53014

Nut/blind nut

Top plate screw (nut) teeth: 4X3/8-16UNC

Bottom cover plate screw (nut) teeth: 4X3/8-16UNC
The screw center distance of the cover plate: 158.8 mm

Air hole/air inlet/air fittings

Rubber Bellows

Rubber bellows stroke: minimum 81 mm to maximum 160 mm

Plate diameter

Top plate diameter (width): 289 mm

Bottom cover plate diameter: 289 mm

Bumper block/bumper block

Without

Belt loop/Belt loop/Girdle hoop

Without

Min. pressure: 0 bar

Return force to min.height: ≤300N

Overall weight with clamped plates: 6.1kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 150mm, minimum 120mm

Pressure p[bar]	3	4	5	6	7	8	Vol. V[l]
Force(Load) [KN]	18.6	24.9	31.5	37.9	44.4	50.8	11.0
Spring rate [N/cm]	3650	4410	5340	6140	7220	7920
Natural frequency [Hz]	2.2	2.1	2.1	2.0	2.0	2.0

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	160	17.1	23.0	29.0	35.0	41.2	47.3	11.8
	140	20.0	26.8	33.7	40.6	47.7	54.5	10.7
	120	22.3	29.8	37.3	44.9	52.7	60.2	9.5
	100	24.1	31.9	40.0	48.1	56.3	64.3	8.2
	80	25.3	33.4	41.9	50.3	58.8	67.1	6.6
	60	26.0	34.5	43.4	52.0	60.8	69.1	4.6

Application

paper sizing presses
gluing machines
pressure rollers for calenders
missile assembly jigs
gate valve operators
web assembly machines
forming presses
cable tensioning machines
abrasive separators
knife spring adjusters
rolling Flat machine
roller friction brake
straightening machine
bronzing machin
belt lift tensioner
special paper press roll
leather machiner
hopper
box sealing machine
industrial washing machine

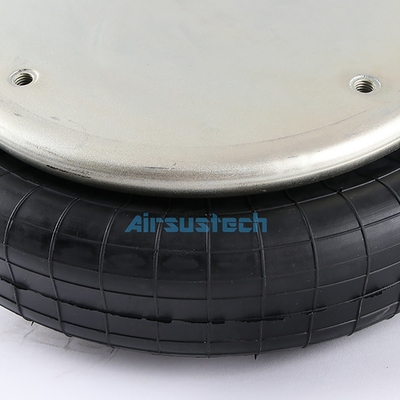

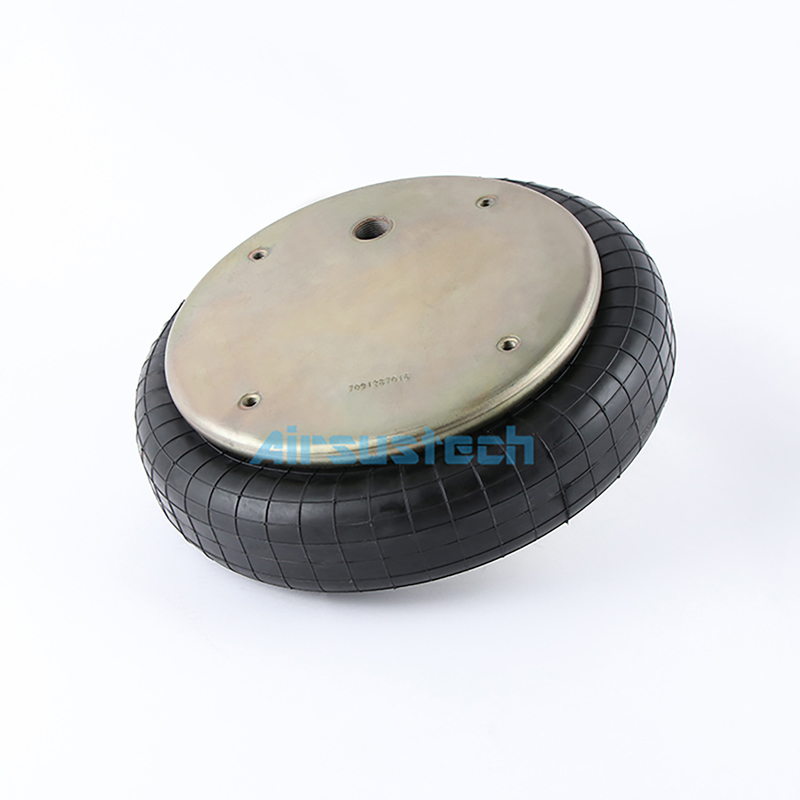

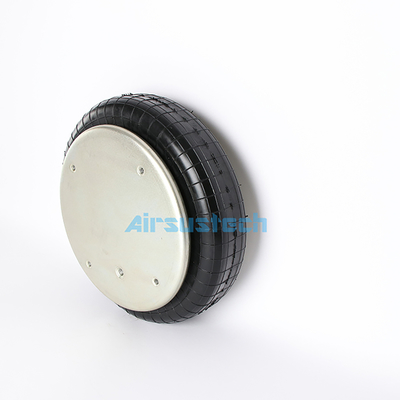

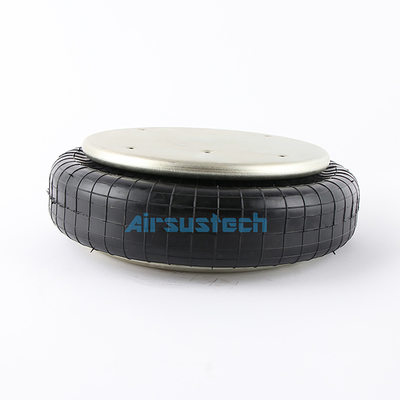

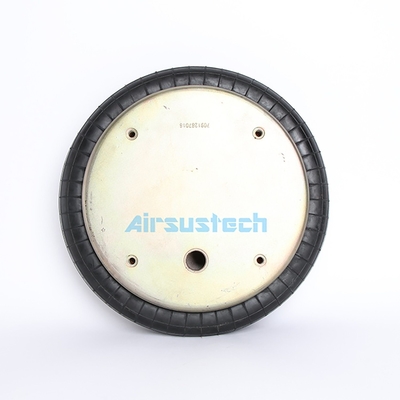

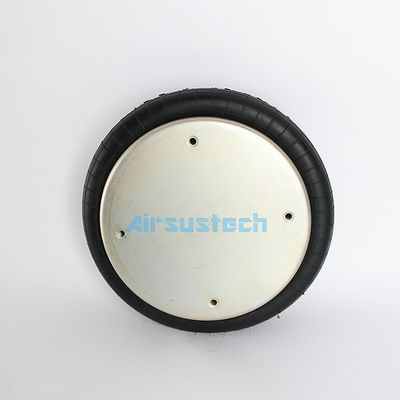

The related picture of 1B53014
