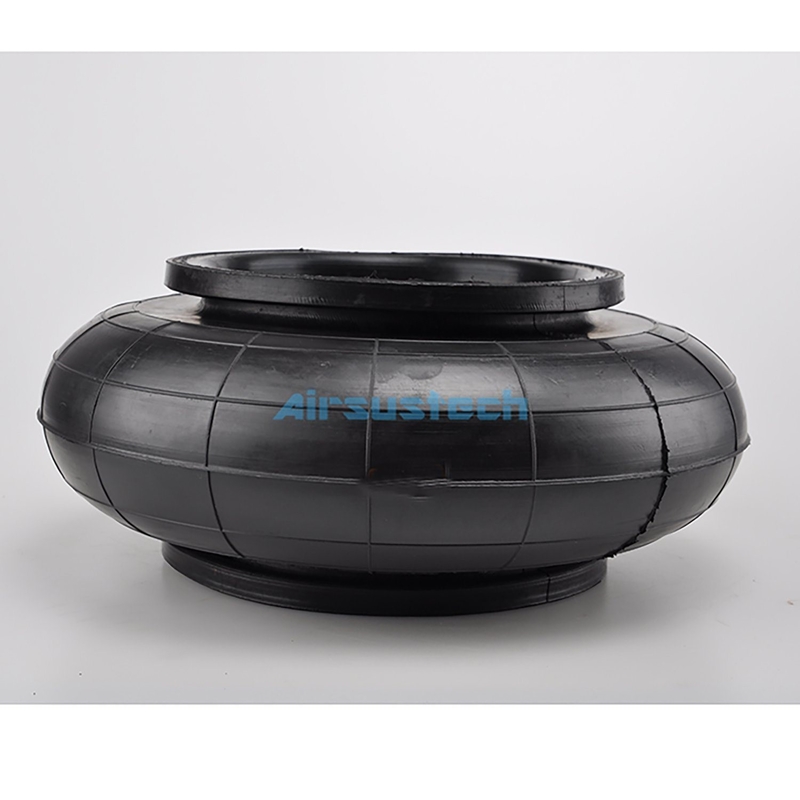

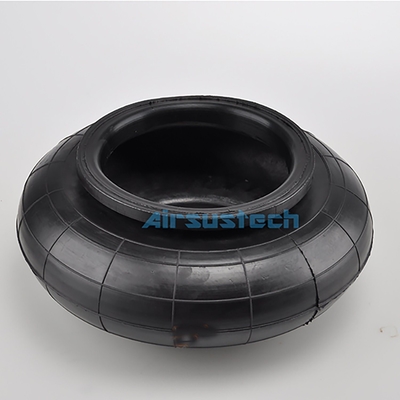

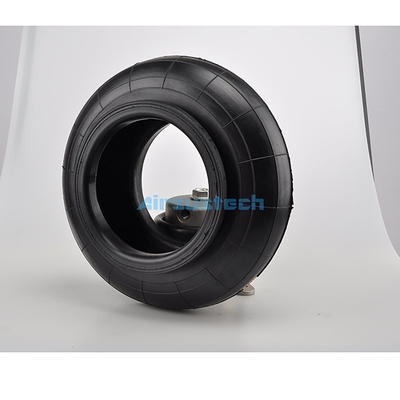

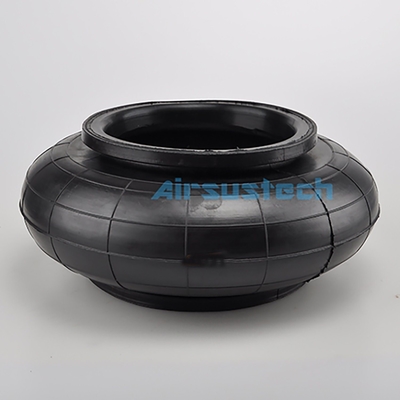

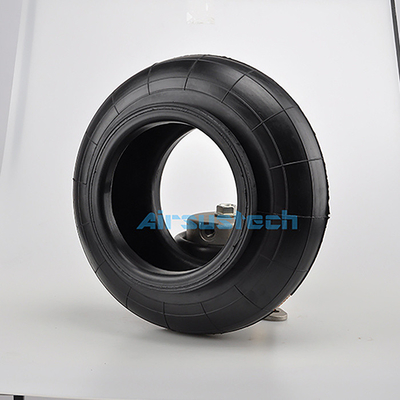

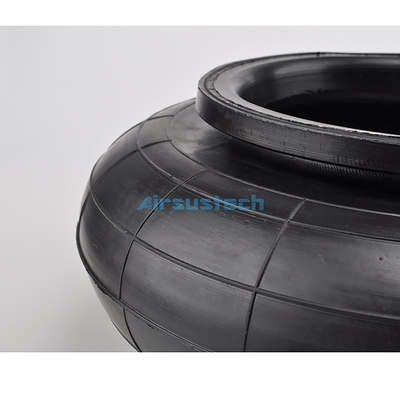

One Convoluted Air Ride Spring Firestone W013580134 Rubber Pneumatic Bellows

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1F5330

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Gas-Filled	Quality:	100 % Tested
Fuction:	Reduce Shock	OEM No.:	Firestone W01 358 0134
Transport Package:	Neutral Packing	After-sales Service:	12 Months
Feature:	Rubber Bellow Only	Firestone Style:	Style 19
Highlight:	Firestone W013580134 Air Ride Spring , One Convoluted Air Ride Spring , Firestone Air Ride Spring

One Convoluted Air Ride Spring Firestone W013580134 Rubber Pneumatic Bellows

Refer No.

AIRSUSTECH: 1F5330	AIRSUSTECH: Style 1
94014	Pirelli Style 1
Pirelli Connection F	TORPRESS MODEL 1
Firestone Rubber bellows only:W013580134	Firestone Style 1
Firestone Part Number:W01-358-7023	Firestone Rubber bellows only:W01-358-0134
Firestone Part Number:W013587023	Firestone Rubber bellows only:W01 358 0134

	Description	Firestone Assembly Order No.
Style 19	Blind nuts, 1/4 BSP	W01-M58-6008
	Blind nuts, 1/4 BSP,bumper	W01-M58-6373
	Blind nuts, 3/4 BSP	W01-M58-6011
Two Ply Bellows	Blind nuts, 3/4 BSP,bumper	W01-M58-6372
	Countersunk steel bead rings, 40 mm bolts, nuts, washers	W01-M58-6975
	Rubber bellows only	W01-358-0134
Assembly weight (bead plate version,no bumper 4.45KG
Force to collapse to minimum height(@0 BAR) 40N.

Specifications and Detailed Technical Parameters: 1F5330

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : M8
Bottom Cover Plate Screw (Nut) Tooth : M8
Screw Center Distance : 228.5
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/2NPTF
Cover Plate
Top Diameter: 247 mm
Bottom Cover Plate Diameter: 247 mm
Rubber Bellows
Rubber Bellows Natural Diameter : 300 mm
Rubber Bellows Max. Diameter: 325mm
Working Stroke: Max 160mm to Min 55mm
Compressed Height: 105mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
Without Girdle Hoop

Product advantage
Guangzhou Guomat Air Spring Co., Ltd. was established in 2008, so far has more than 10 years of experience in air spring. We have been committed to do professional damping equipment, thanks to the following product advantages, our air spring has been popular at home and abroad.
Imported rubber: combined with advanced sol technology, durable, heat resistance, aging resistance and other characteristics.
Integrated casting process: the use of integrated casting process, durable, strong air tightness, anti-leakage and anti-blowout
Easy installation: the shape and size are the same as the original, directly replace the original air spring, convenient installation
Made of fine steel: made of fine steel, anti-fracture, long service life

Transportation and packaging

Transportation:
1. Normally, we will deliver parts within 2-8 working days after receiving payment.
2. We always ship air springs by DHL, UPS, FEDEX and TNT. They can deliver packages to you very quickly. If the parcel is big and heavy, we can send it by sea.

Packing:
Air freight: packed in strong cartons;
By sea: packed in waterproof materials, pallets and wooden cases if necessary.
Air springs are used in industrial applications
Air spring provides a solution for vibration guided installation of a variety of machines. From complete technical design to coordination of single system components. Air spring is suitable for a variety of equipment, can effectively reduce the impact of vibration on equipment. At present, more and more industrial equipment use air springs. The GUOMAT air spring allows very low natural frequencies, 0.5-3.5 Hz, depending on the type. Air isolators, with loads ranging from 0.5 KN to over 440 KN, provide an effective installation for sensitive measuring instruments and heavy duty bases.
