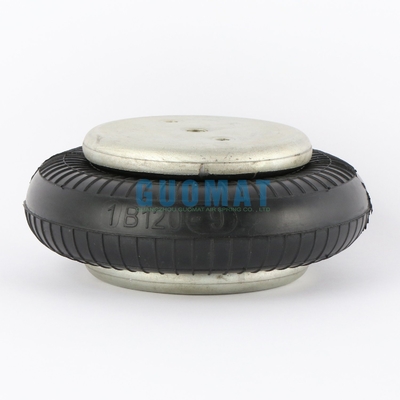

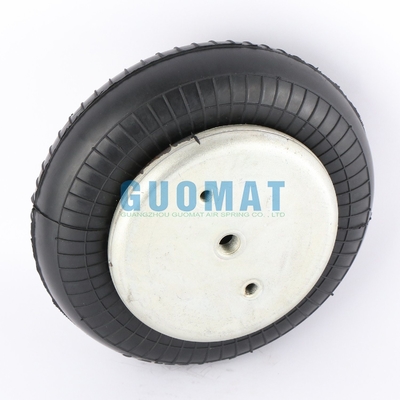

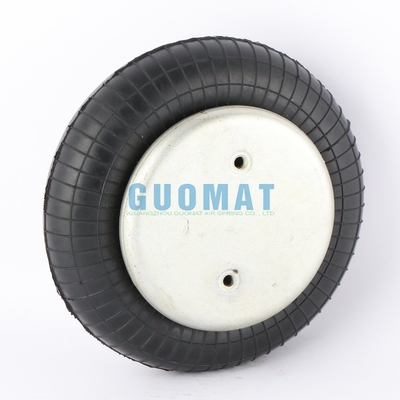

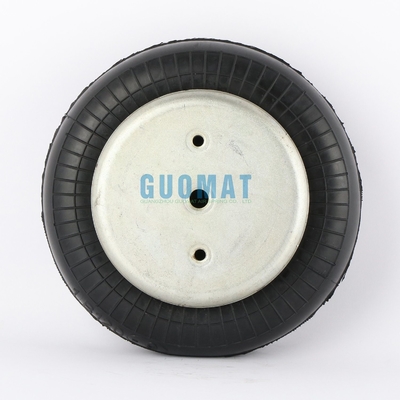

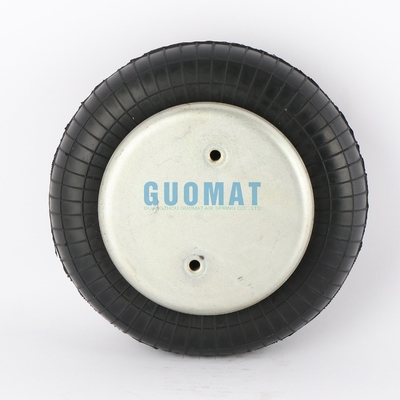

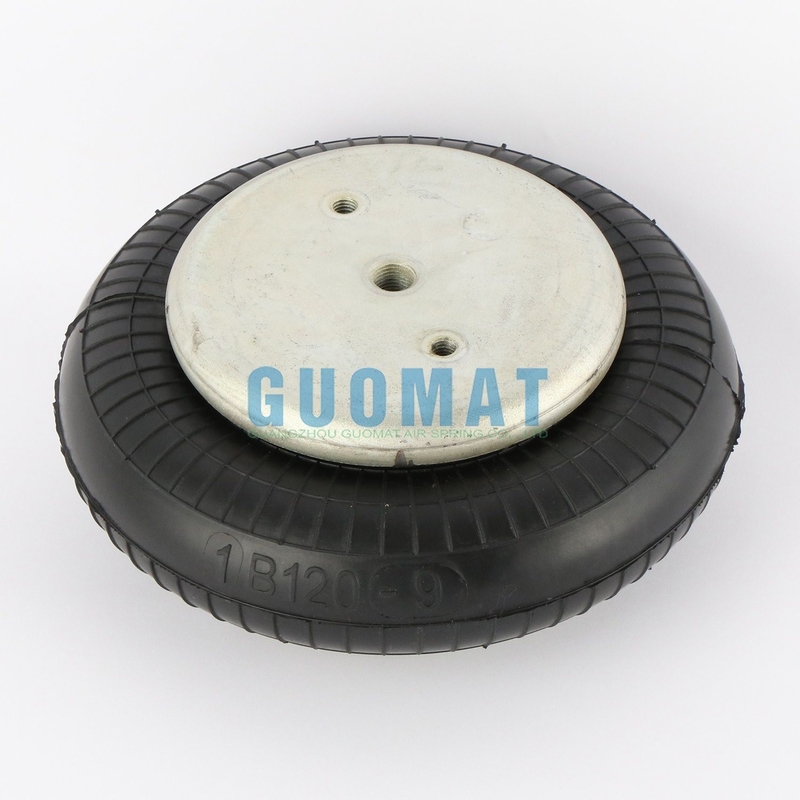

Air Spring Suspension Contitech FS120-9 Max. Height 135MM Air Shock Assembly

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B120-9

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	1B120-9	Bellows Type:	Single Convoluted
OEM:	W01-M58-6166	MIN. H.:	50 MM
MAX. H.:	135 MM	Screw Type:	2×M8
Sample:	Available	Quality Assurance:	12 Months
Highlight:	FS120-9 Suspension Air Spring , 135MM Height Suspension Air Spring

Air Spring Suspension Contitech FS120-9 Max. Height 135MM Air Shock Assembly

Product Details

Cover Plate

Top Cover Plate Diameter: 141 mm
Screw Center Distance of Top Cover Plate: 70 mm
Bottom Cover Plate Diameter: 141 mm
Screw Center Distance of Bottom Cover Plate: 70 mm

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 2×M8×15mm
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×15mm

Gas Hole/Air Inlet/Air Fitting

Gas Hole: G 3/4

Rubber Bellow

Rubber Bellow Max. Diameter: 215 mm
Minimum Height: 50 mm
Maximum Height: 135 mm

Cross Reference Number

Fire-stone: W01-M58-6166

W01/M58/6166

W01M586166

Contitech: FS 120-9

fs 120-9

fs 120-9 ci

Dunlop(FR): 8''x1 S08100

Bos-ch: 822419008

Weforma: WBE 300-E2

Single Convoluted Bellows

OEM	MAX. Diameter(mm)	MAX. Stroke(mm)	MIN. H.(mm)	MAX. H. (mm)	Air Hole
OEM	MAX. Diameter(mm)	MAX. Stroke(mm)	Force with p = 8 bar		Air Hole
FS 40-6 CI	145	60	6.9	2.4	G 1/8
FS 50-5 CI	150	44	9.0	2.2	G 1/4
FS 70-7 CI	165	64	9.9	5.2	G 1/4
FS 100-10 CI	210	94	14.7	1.6	G 3/4
FS 120-9 CI	215	85	17.7	6.6	G 3/4
FS 120-10 CI	231	99	19.5	4.6	G 3/4
FS 120-12 CI	235	119	18.7	7.2	G 3/4
FS 200-10 CI	250	89	23.8	9.1	G 3/4

Maintenance of the air springs, Vehicle Check-List

1.Check the air lines and devices of leakage and that they turns freely.
2.Check the bellows bearing for damage, correct fastening, deformation, sharp edges.
3.Check the shock absorbers for operation and impermeability as well as tightness and bearing.
4.Periodically, check nuts and bolts for proper torque. For specific recommendations see manufacturer's manual.
5.Check axle suspension, trailing arms and rods for wear.
6.Check height control valve to see that it is functioning properly. A properly maintained valve will save unneeded maintenance expense.
7.Routine inspection of all of the above according to manufacturer's instructions, will extend the life of your vehicle and reduce your overall maintenance expense.

Applications

Pulp and paper industry
Lumber mills
Lift tables
Tooling and machining system
Energy production
Tooling robotics and automation
Component assembly
Automotive assembly
Medical equipment
Conveyor systems
Packaging
