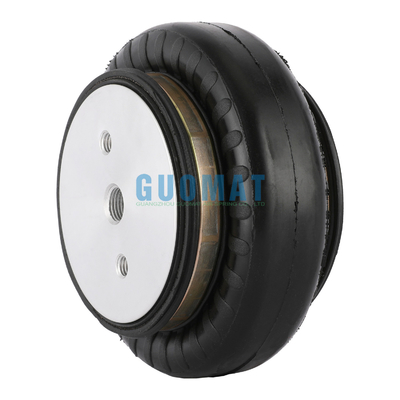

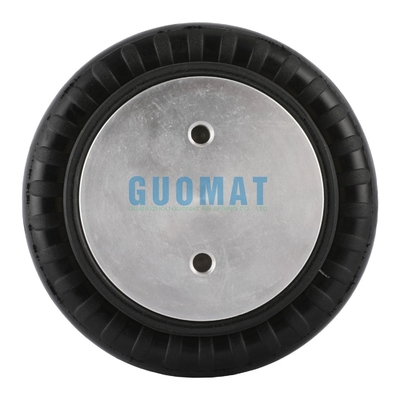

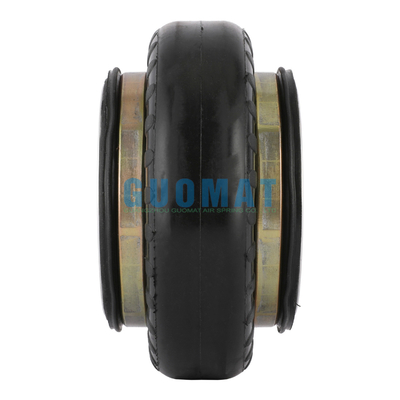

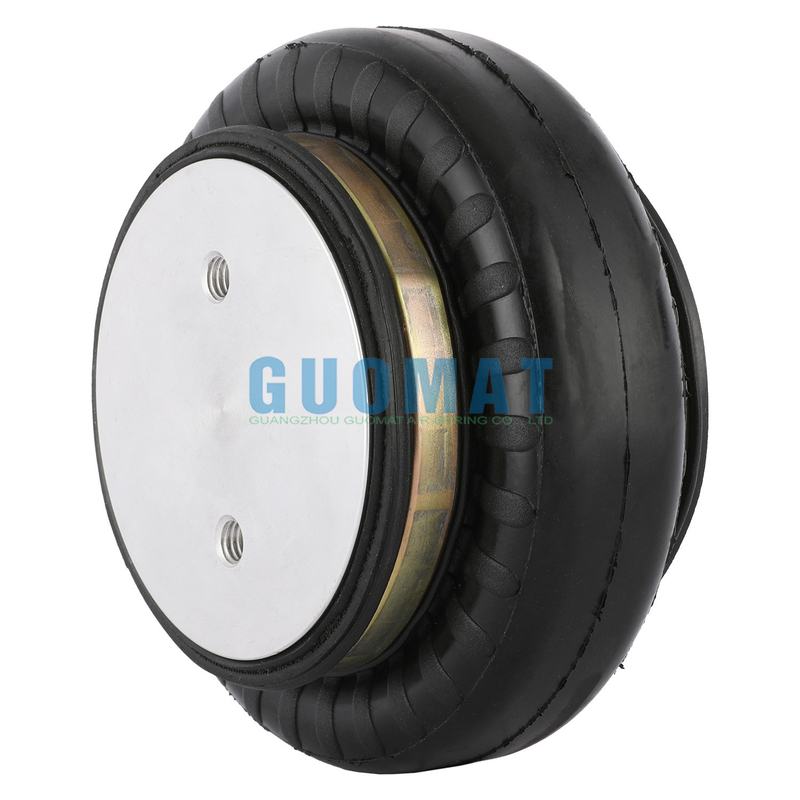

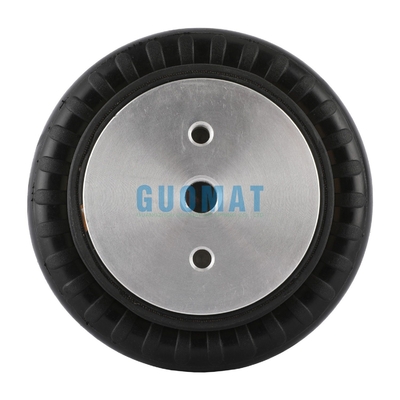

Goodyear 1B5-550 Air Spring Actuator Single Convoluted Bellows Type G 1/4 Air Hole

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B5-550

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B5-550	Spring Material:	Rubber
Structure:	Single Convoluted	MIN. H.:	3.8 Inches
MAX. H.:	1.8 Inches	Air Size:	1/4
Trademark:	GUOMAT	Sample:	Available
Highlight:	Goodyear 1B5-550 Air Spring , Single Convoluted Bellows Type Air Spring

Goodyear 1B5-550 Air Spring Actuator Single Convoluted Bellows Type G 1/4 Air Hole

Product Details

GUOMAT No.: 1K130070

GUOMAT No.: 1K 130070

Goodyear No.: 1B5-550

Goodyear No.: 1B 5-550

1B5-550 Rubber Air Bag Technical Data

Material	High Quality Rubber
Cover Plate Material	Aluminum
Net Weight	0.85 KG
Port Size	G1/4
Cylinder Type	Standard
Number of Convolutions	Single
MAX Diameter	145 MM
Stroke Length	50 MM
Maximum Working Pressure (Bar)	8
Maximum Ambient Temperature (°C)	70 ºC
Minimum Ambient Temperature (°C)	-40ºC

Single Convoluted Type Air Spring

Part Number	Usable Stroke	Max Dia @100 psi In	Min H. Inches	Max. H. Inches	Air Inlet
1B5-500	2.0	5.7	1.8	3.8	1/4
1B5-502	2.0	5.7	1.8	3.8	3/4
1B5-503	2.0	5.7	1.8	3.8	1/4 TV
1B5-510	3.0	6.0	1.8	4.8	1/4
1B5-512	3.0	6.0	1.8	4.8	3/4
1B5-520	4.0	6.5	1.8	5.8	1/4
1B5-521	4.0	6.5	1.8	5.8	3/4
1B6-530	3.0	6.5	1.8	4.8	1/4
1B6-531	3.0	6.5	1.8	4.8	1/4 OS
1B6-532	2.5	6.5	2.3	4.8	1/4 OS
1B6-535	5.3	7.0	1.8	7.1	1/4
1B6-536	5.3	7.0	1.8	7.1	1/4 OS

Advantages

100% Brand New
Durable and long service life.
Direct replacement for your old or broken one, easy installation.
Built to meet standard specification, strictly follow factory quality control.
Due to the light and screen difference, the item's color may be slightly different from the pictures.

Air Spring Installation

Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
