Contitech FS310-12 Continental Rubber Bellow MAX. Stroke 120MM Air Actuator

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	FS 310-12

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	FS 310-12	Structure:	Single Convoluted
Condition:	Brand New	OEM:	FS 310-12
Manufacturer:	GUOMAT	After-sales Service:	1 Year
Material:	Rubber	Maximum Diameter:	320 MM
Highlight:	Contitech FS310-12 Continental Rubber Bellow , FS310-12 Continental Rubber Bellow

Contitech FS310-12 Continental Rubber Bellow MAX. Stroke 120MM Air Actuator

Air Spring Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

Product Specifications

Minimum height	55 mm
Maximum stroke	120 mm
Maximum diameter	320 mm
Installation space needed	335 mm
Bead diameter	172 mm
Inner-∅ sealing and mounting surface	131 mm
Height of bead	11 mm
Maximum loading capacity (7bar / 115mm)	26.8 kN
Maximum lifting pressure	8 bar

Alternative Items

Contitech OEM Part Number: FS310-12

Contitech OEM Part Number: FS310-12 DS

Contitech OEM Part Number: FS 310-12 DS

Contitech OEM Part Number: FS 310-12 1/2 M10

Contitech OEM Part Number: FS 310-12 DS G1/2

Contitech OEM Part Number: FS310-12 DS 1/2 M10

Contitech OEM Part Number: FS 310-12DS G1/2 M10

FS 310-12 Replacement for Phoenix 1 B20
FS 310-12 ECO Replacement for Phoenix 1 B20-4

Contitech Air Spring

Model	Gas Hole	Screw Tooth	Rubber Bellow(mm)	Cover Plate(mm)
FS 76-7 DS CR	G1/2	M10	175	153.5
FS 210-10 DS	G1/2	M10	270	210
FS 412-10 DS	G1/2	M10	330	260
FS 614-13 DS	G1/2	M10	400	310
FS 816-15 DS	G1/2	M10	420	310
FD 76-14 DS CR	G1/2	M10	175	153.5
FD 138-18 DS	G1/2	M10	225	184
FD 209-21 DS	G1/2	M10	255	197
FD 210-22 DS	G1/2	M10	270	210
FD 412-18 DS	G1/2	M10	325	260
FD 614-26 DS	G1/2	M10	400	310
FD 816-30 DS	G1/2	M10	435	310
FT 76-20 DS CR	G1/2	M10	178	153.5
FT 138-26 DS	G1/2	M10	230	184
FT 210-32 DS	G1/2	M10	270	210

Air Spring Installation

1.Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Packaging & Shipping

Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

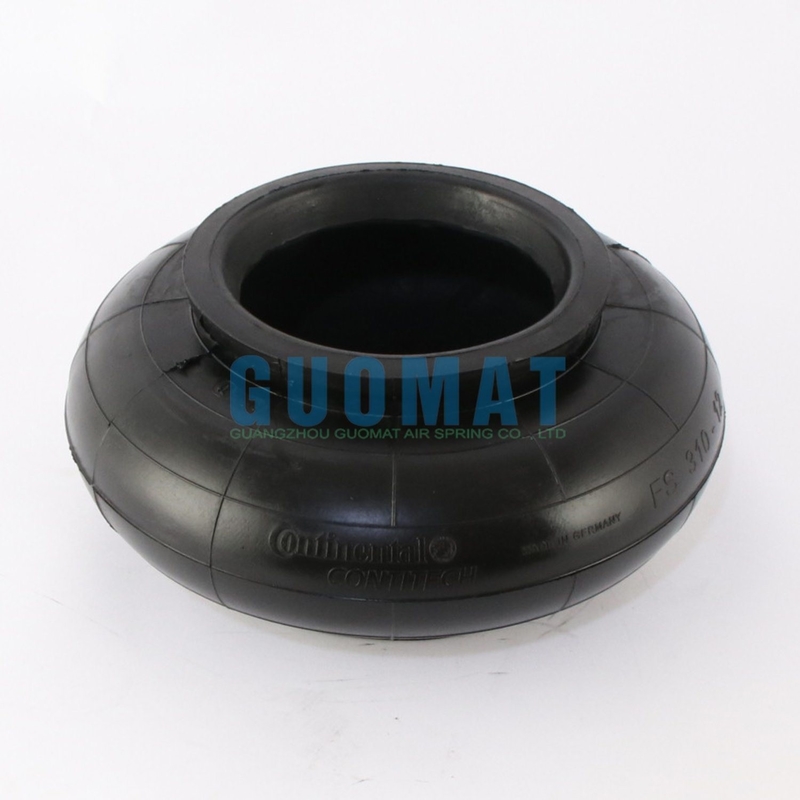

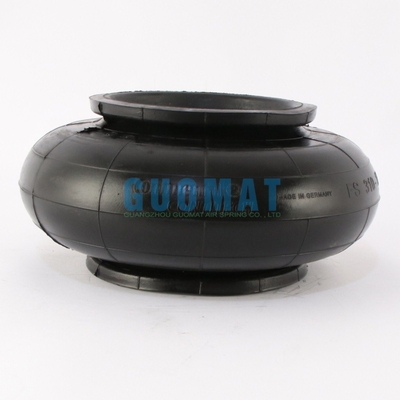

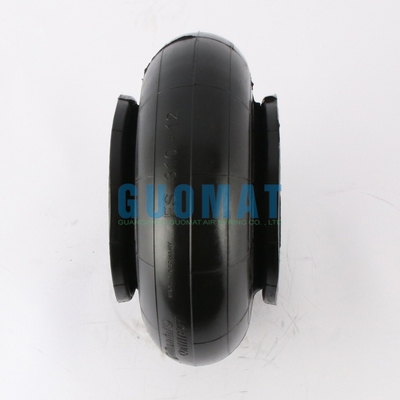

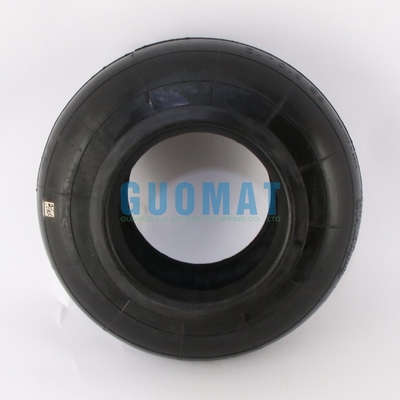

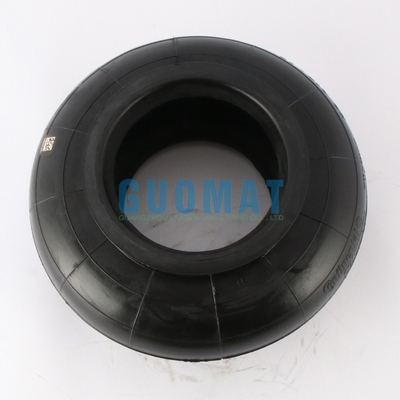

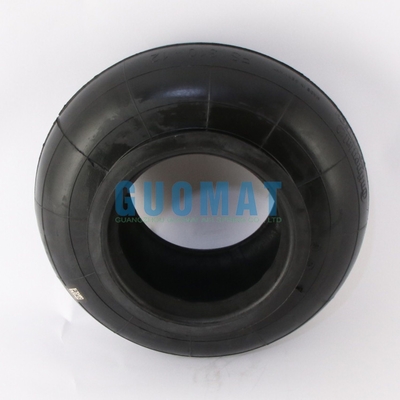

Product Images
