FS 210-10 Contitech Single Convoluted Air Shock Absorber for Washing Machine

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	FS 210-10	Application:	Industrial Machine
MIN. H.:	50 MM	MAX. H.:	150 MM
Screw Type:	4×M10	MAX Rubber OD.:	270 MM
Installation Space Required:	300 MM	Quality:	100 % Tested
Highlight:	Single Convoluted Air Shock Absorber , FS 210-10 Single Convoluted Air Shock Absorber , Contitech Single Convoluted Air Shock Absorber

FS 210-10 Contitech Single Convoluted Air Shock Absorber for Washing Machine

Product Specification

Cover Plate

Top Cover Plate Diameter: 210 mm
Screw Center Distance of Top Cover Plate: 181 mm
Bottom Cover Plate Diameter: 210 mm
Screw Center Distance of Bottom Cover Plate: 181 mm

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 4×M10
Bottom Cover Plate Screw(Nut) Tooth: 4×M10

Gas Hole/Air Inlet/Air Fitting

Gas Hole: G 1/2

Rubber Bellow

Rubber Bellow Max. Diameter: 270 mm
Minimum Height: 50 mm
Maximum Height: 150 mm

Cross Reference Number
Fire-stone W01R584057
Fire-stone W01 R58 4057
Fire-stone W01-R58-4057
Fire-stone WO1R584057
Fire-stone WO1 R58 4057
Fire-stone WO1-R58-4057

Product Technical Data Sheet

Froce [kN]

Pressure P	[bar]	3	4	5	6	7	8	Vol. V
Height H [mm]	120	6.94	9.41	11.9	14.4	16.9	19.3	3.4
	100	8.94	12.1	15.2	18.3	21.4	24.4	2.9
	80	10.9	14.6	18.3	22	25.7	29.3	2.2
	60	12.2	16.4	20.4	24.6	28.7	32.7	1.4

Common Applications for Air Bags

Primary Trailer Suspension Air Springs provide outstanding cargo protection while reducing maintenance problems caused by road shock and 'trailer hop' when empty. Trailers last longer and can be used to haul a wider variety of cargo, reducing expensive empty trailer miles.
Lift Axle Air Springs allow you to lift the axle without ever leaving the cab. Saves tire wear under empty or partial load conditions and lets you negotiate tight corners with spread tandems.
Drive Axle Air Springs substantially improve the ride and handling of the tractor, resulting in greater driver comfort and safety, less tractor maintenance, longer tire wear and higher trade-in value. They require little maintenance and last more than twice as long as steel springs.
Front Axle Air Springs significantly improve steering and handling while improving tire wear and reducing problems caused by cab vibration.
Cab Mount Air Springs eliminate most problems experienced with standard cab mounts and help reduce damaging cab vibration.
Seat Air Springs increase driver comfort and help alleviate hazardous driver fatigue.

FAQ

1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.

2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.

3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.

4. What is your warranty term?
There is a 12months warranty for our export products has run out from the date of the shipment.

5. Can i use my own logo and design on products?
YES,OEM is welcomed.

6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Packaging & Shipping

Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

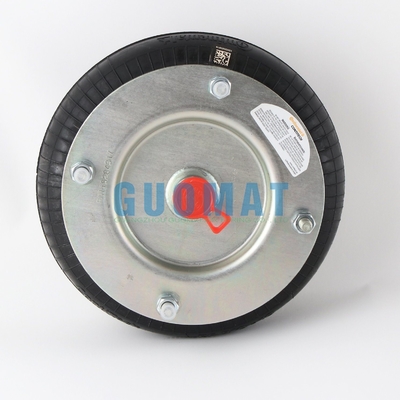

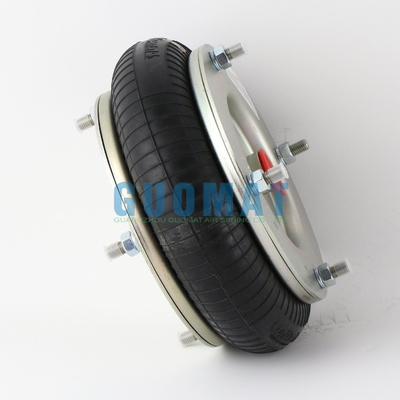

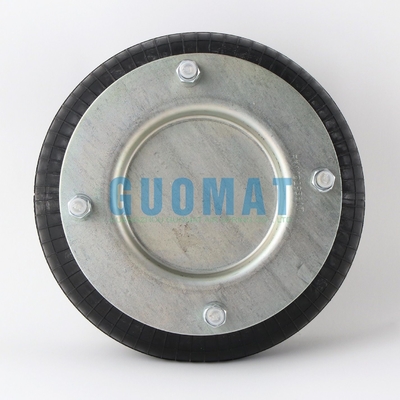

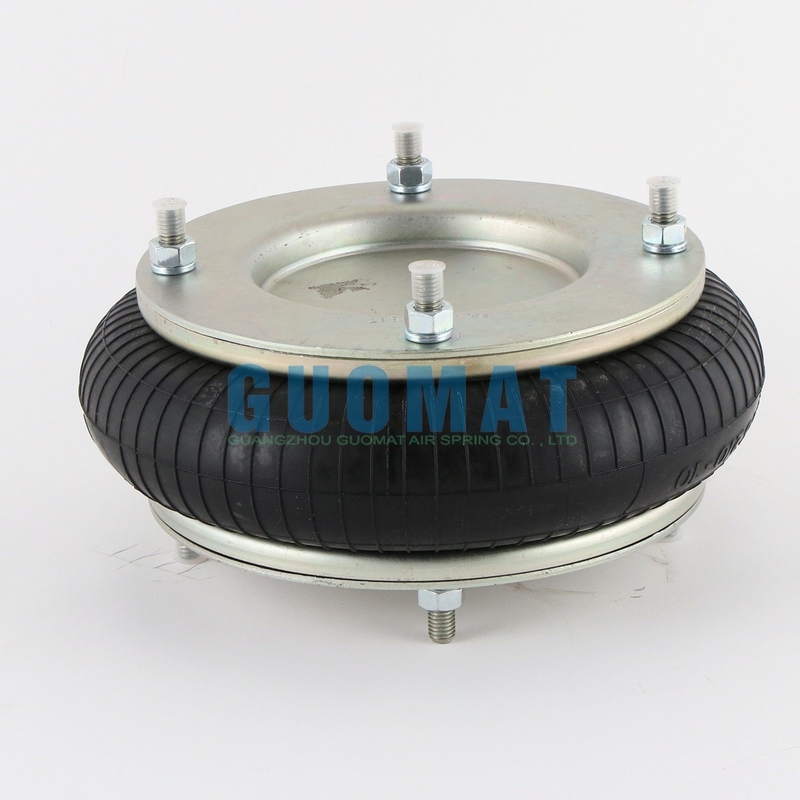

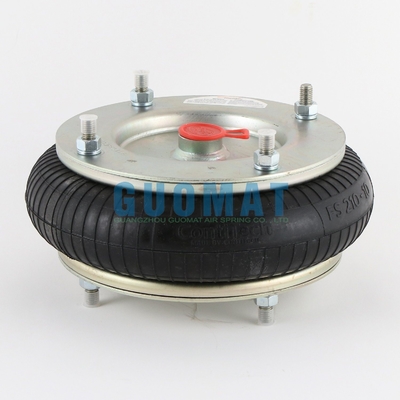

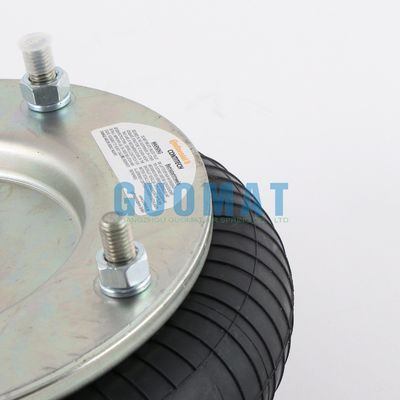

Product Images
