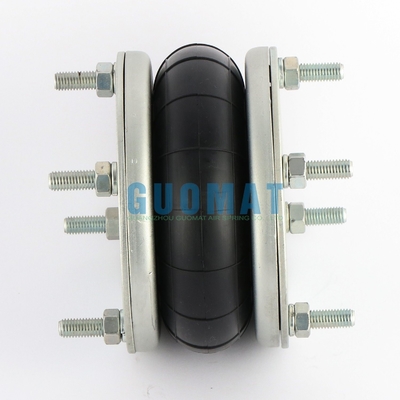

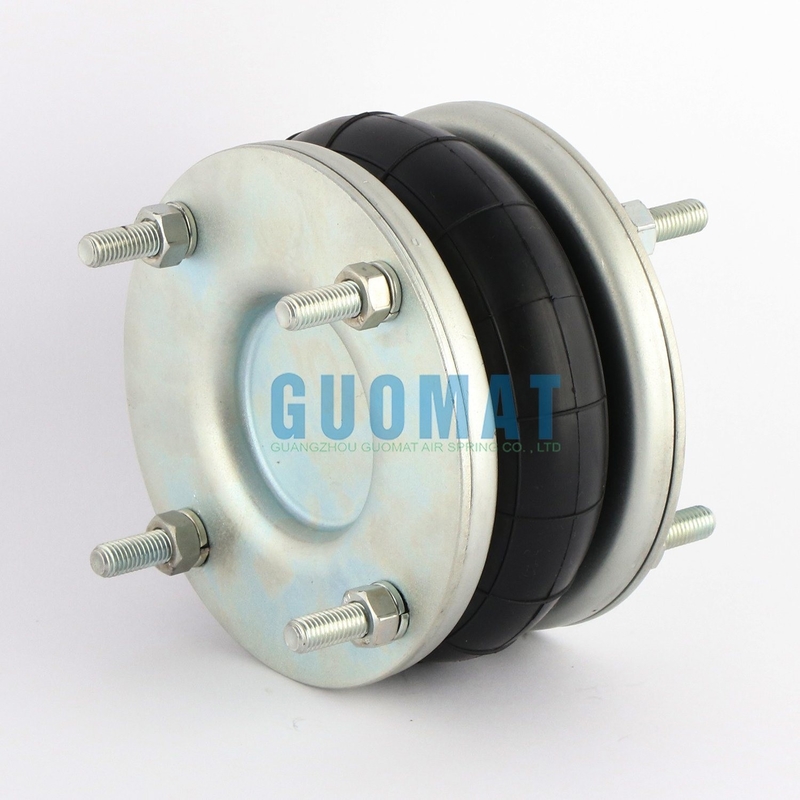

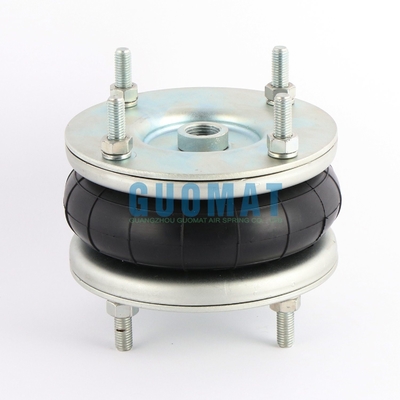

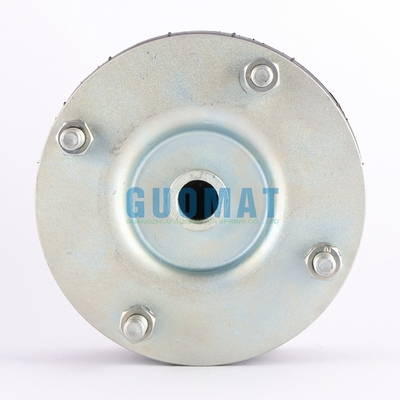

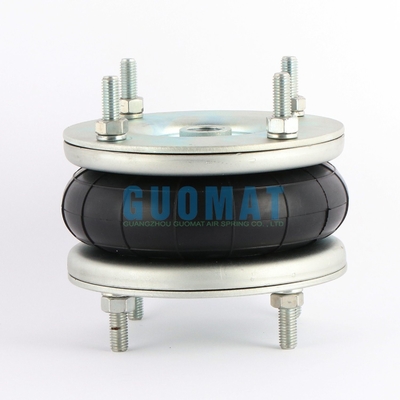

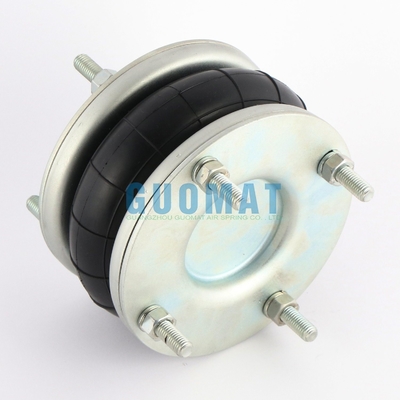

DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B6×1T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	6X1	Origin:	Guangzhou
After-sales Service:	12 Months	Position:	Industrial Machine
Type:	Gas-Filled	Studs Type:	4×M10
Firestone:	W01-R58-4052	Rubber Bellow Max. OD.:	168 MM
Highlight:	Air Suspension Spring With M10 Studs , DUNLOP Air Suspension Spring , W01-R58-4052 Air Suspension Spring

DUNLOP Air Suspension 6''×1 Flange Connection Air Actuator With M10 Studs

1B6×1T Features

Cover Plate
Top Cover Plate Diameter: 153 mm
Screw Center Distance of Top Cover Plate: 127 mm
Bottom Cover Plate Diameter: 153 mm

Screw Center Distance of Bottom Cover Plate: 127 mm

Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 4×M10 studs
Bottom Cover Plate Screw(Nut) Tooth: 4×M10 studs

Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/2 BSP

Rubber Bellow
Rubber Bellow Max. Diameter: 168 mm
Minimum Height: 45 mm
Maximum Height: 90 mm

Other OEM Number

Fire-stone	W01-R58-4052 ; W01R584052 ; W01 R58 4052 WO1-R58-4052 ; WO1R584052 ; WO1 R58 4052
Dunlop	6X1 ; 6''X1 ; SP1368 ; SP 1368
Contitech	FS76-7 DS ; FS 76-7 DS
Norgren	M/31062 ; M 31062 ; M31062

Single Convoluted Has Other Types

Part NO.	Min. Heigh	Max. Height	Rubber Max. Dia	Top/Bottom Cover Plate Dia
12''×1	50 mm	145 mm	330 mm	260 mm
10''×1	50 mm	135 mm	280 mm	210 mm
8''×1	47 mm	120 mm	230 mm	184 mm
6''×1	45 mm	90 mm	168mm	153 mm
