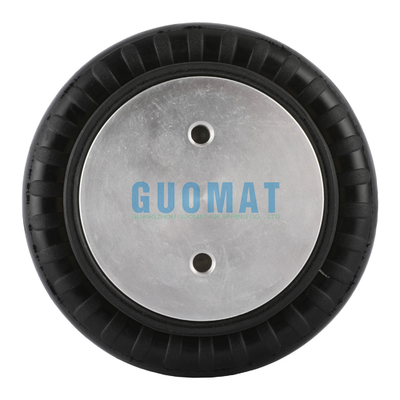

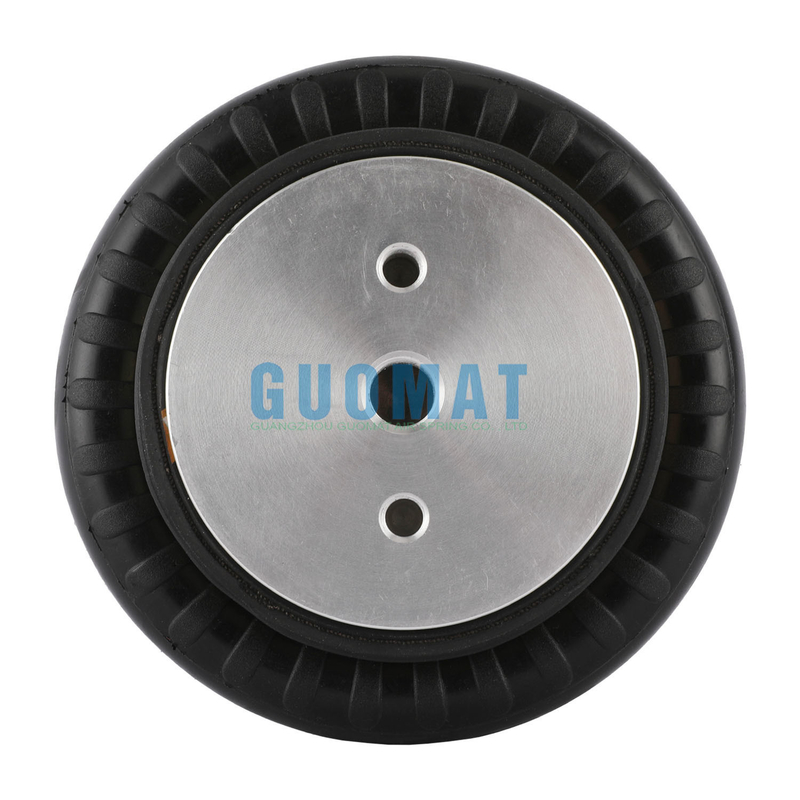

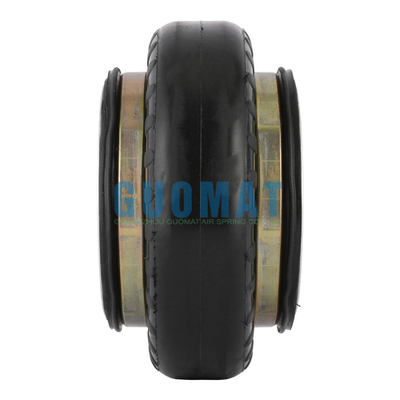

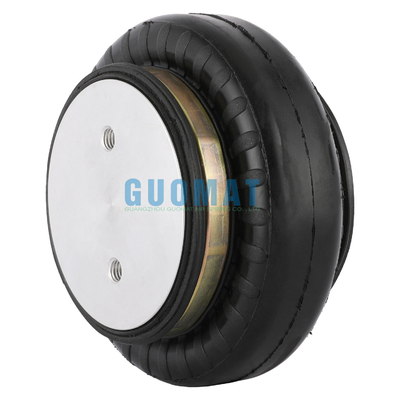

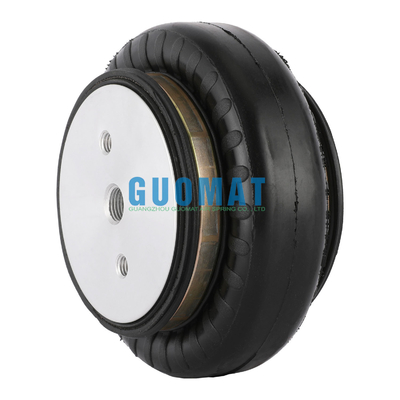

Goodyear Air Suspension 1B5-500 Trailer Air Bag Single Convoluted Air Spring Shocks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1K130070

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1K130070	Spring Material:	Rubber And Steel
Structure:	Single Convoluted	Function:	Reduce Shock
Condition:	Brand New	Trademark:	GUOMAT
Part:	Air Spring/Air Suspension	Customization:	Available \| Customized Request
Highlight:	1B5-500 Single Convoluted Air Spring , Trailer Single Convoluted Air Spring

Goodyear Air Suspension 1B5-500 Trailer Air Bag Single Convoluted Air Spring Shocks

Product Details

Type	Convoluted Air Spring	GUOMAT No.	1K130070
Material	Rubber and Steel	Warranty	12 Months
Rubber Type	Natural Rubber	MOQ	1 Piece

Product Specifications

Usable Stroke: 2.0

Max. Dia @ 100 psi In: 5.7

Min Ext Height Inches: 1.8

Max Ext Height Inches: 3.8

Bumper: NO

Air Hole: G 1/4

OEM Number
Goodyear 1B5-500
Goodyear 1B 5-500
Goodyear 1B5500
Goodyear 1B 5500
Goodyear 579913500
Goodyear 579 913 500
Goodyear 579-913-500

Single Convoluted Type Air Bag

Part Number	Usable Storke	Max Dia @ 100 psi In	Min Ext Height Inches	Max Ext Height Inches	Bumper	100 psi	80 psi	60 psi	40 psi	100 psi	80 psi	60 psi	40psi	Air Inlet Size (in)
1B5-500	2.0	5.7	1.8	3.8	NO	570	425	290	175	1525	1210	900	595	1/4
1B5-502	2.0	5.7	1.8	3.8	NO	570	425	290	175	1525	1210	900	595	3/4
1B5-503	2.0	5.7	1.8	3.8	NO	570	425	290	175	1525	1210	900	595	1/4 V
1B5-510	3.0	6.0	1.8	4.8	NO	530	390	260	145	1620	1290	955	635	1/4
1B5-512	3.0	6.0	1.8	4.8	NO	530	390	260	145	1620	1290	955	635	3/4
1B5-520	4.0	6.5	1.8	5.8	NO	445	305	180	80	2100	1660	1230	850	1/4
1B5-521	4.0	6.5	1.8	5.8	NO	445	305	180	80	2100	1660	1230	850	3/4
1B6-530	3.0	6.5	1.8	4.8	NO	880	635	440	235	2115	1655	1240	840	1/4
1B6-531	3.0	6.5	1.8	4.8	NO	880	635	440	235	2115	1655	1240	840	1/4 OS
1B6-532	2.5	6.5	2.3	4.8	YES	880	635	440	235	2065	1640	1230	810	1/4 OS

Applications

Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as

Flexibility (no angle or alignment problem)
Compactness
Power / price ratio
No maintenance or lubrication required
Durability
Reliability
Resistance to aggressive or hot conditions

The Reason Why Choose Us?

1. Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.

2. Respond promptly. We generally reply within one day.

3. Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
