W013587564 Firestone Rubber Bellows 1B8-550 Air Spring For Industrial Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B8X4P

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B8X4P	Spring Material:	Rubber And Steel
Structure:	Single Convoluted	Function:	Reduce Shock
Quality:	100% Tested	OEM Number:	FS120-10
Trademark:	GUOMAT	Warranty:	1 Year
Highlight:	1B8-550 Air Spring , W013587564 Air Spring

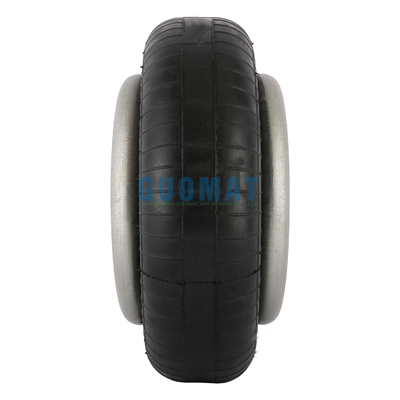

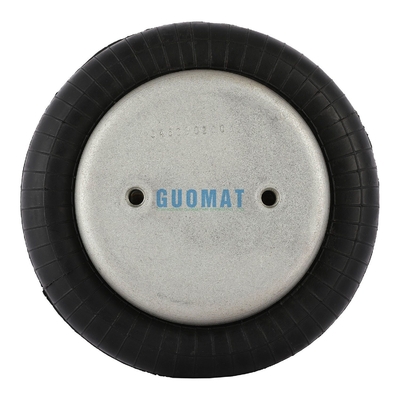

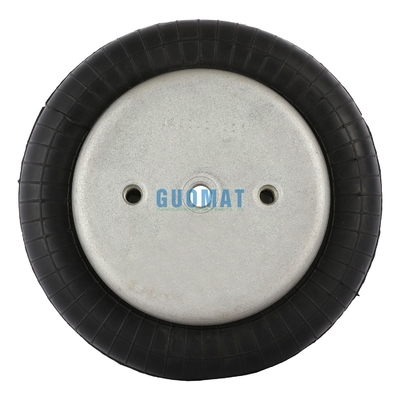

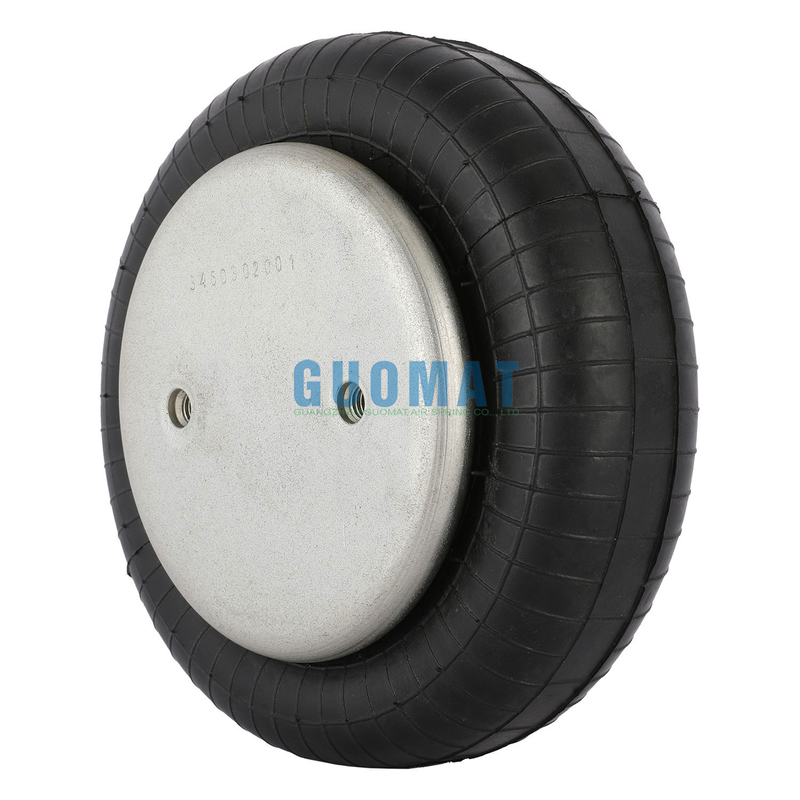

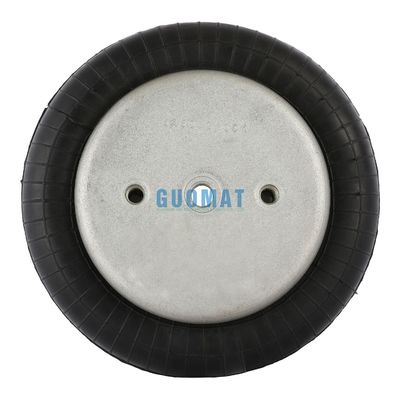

W013587564 Firestone Rubber Bellows 1B8-550 Air Spring For Industrial Machine

Product Information

Cover Plate

Top Cover Plate Diameter: 5.31 inches
Screw Center Distance of Top Cover Plate: 2.75 inches
Bottom Cover Plate Diameter: 5.31 inches
Screw Center Distance of Bottom Cover Plate: 2.75 inches

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 3/8-16 Blind Nuts
Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 Blind Nuts

Gas Hole/Air Inlet/Air Fitting

Gas Hole: 1/4 NPT

Rubber Bellow

Rubber Bellow Max. Diameter: 9.1 inches
Minimum Height: 2 Inches
Maximum Height: 6 inches

OEM Number

Fire-stone

W013587564, W01-358-7564, W01 358 7564

WO13587564, WO1-358-7564, WO1 358 7564

Goodyear

1B8-550, 1B 8-550, 1B8 550, 1B 8 550

Contitech

FS120-10, FS 120-10

Firestone Style 116 Has Other OEM Number

Blind nuts, 1/4 NPT

W01-358-7564, W013587564, W01 358 7564, WO13587564, WO1-358-7564, WO1 358 7564

Blind nuts, 3/4 NPT

W01-358-7561, W013587561, W01 358 7561, WO13587561, WO1-358-7561, WO1 358 7561

Countersunk steel bead rings, 1^3/4bolts, nuts, washers

W01-358-7568, W013587568, W01 358 7568, WO13587568, WO1-358-7568, WO1 358 7568

Blind nuts with installed 1/4 tank valve

W01-A72-7518, W01 A72 7518, W01 A72 7518, WO1-A72-7518, WO1 A72 7518, WO1 A72 7518

Rubber bellows only

W01-358-0133, W013580133, W01 358 0133, WO13580133, WO1-358-0133, WO1 358 0133

Advantages
1. Excellent materials
2. Effective shock
3. In situ installation
4. Comfortable and stable
5. Long life
6. Slove the abnormal noise

FAQ

Q:Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.

Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.

Q: What is your main products?
A: Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.

Q: After-sales service?
A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

Q: When will make delivery ?
A: Delivery time is 3-8woring days.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Packaging & Shipping

Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

Product Images
