SP1B04 Phoenix Air Actuators Contitech FS 40-6 For Pneumatic Applications

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B4060

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B4060	Structure:	Single Convoluted
Damping Force Direction:	Bidirectional	Function:	Reduce Shock
Weforma:	Wbe100-E1	Trademark:	GUOMAT
After-sales Service:	1 Year	Type:	Gas-Filled
Highlight:	SP1B04 Phoenix Air Actuators , Contitech FS 40-6 Phoenix Air Actuators

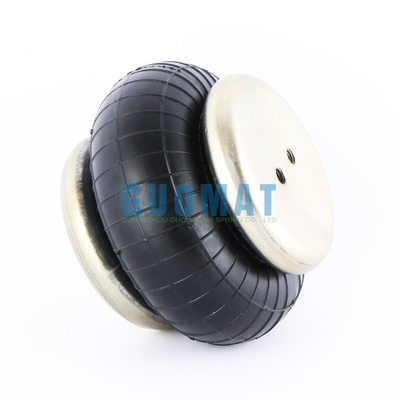

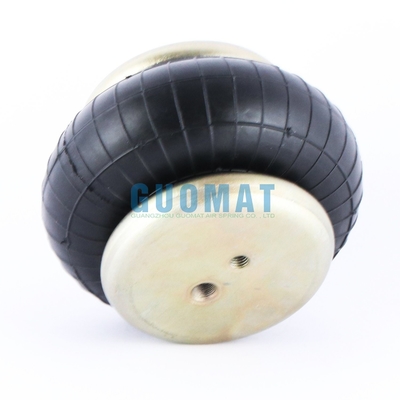

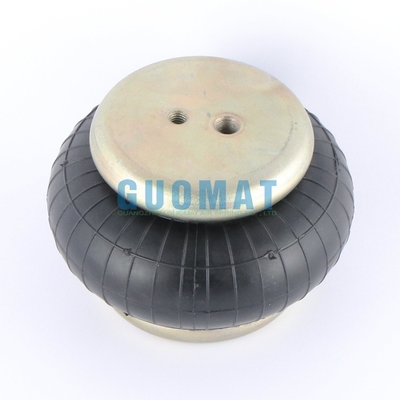

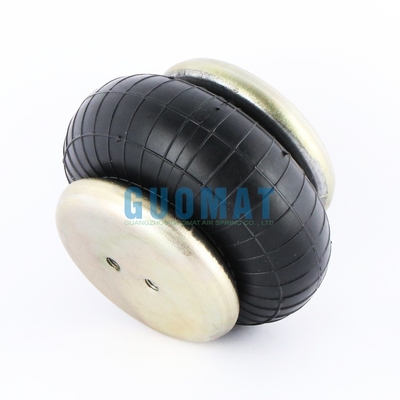

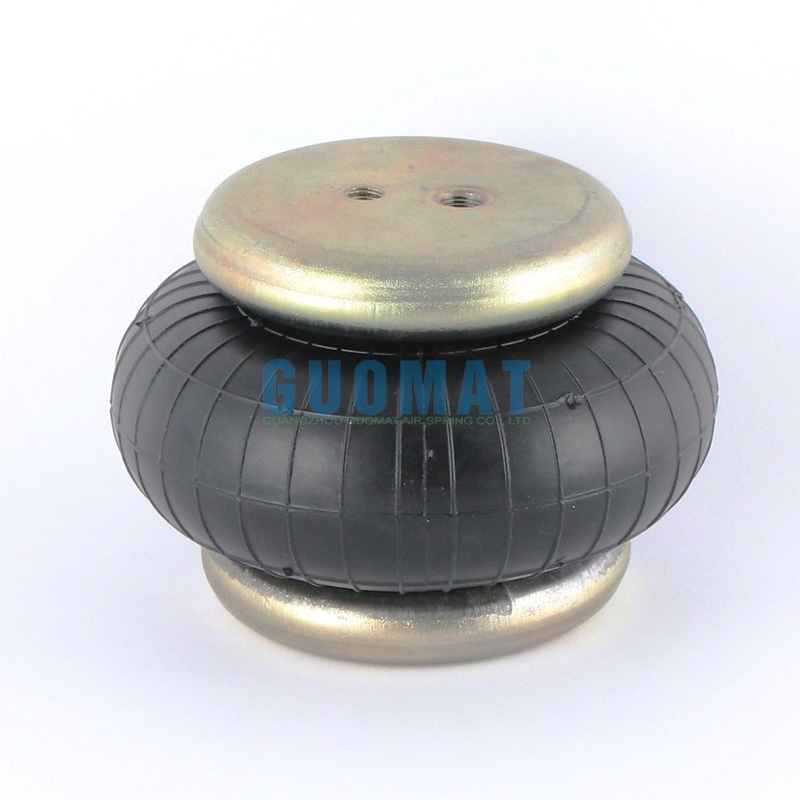

SP1B04 Phoenix Air Actuators Contitech FS 40-6 For Pneumatic Applications

Product Information

Cover Plate

Top Cover Plate Diameter: 92 MM
Screw Center Distance of Top Cover Plate: 22MM
Bottom Cover Plate Diameter: 92 MM
Screw Center Distance of Bottom Cover Plate: 11 MM

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 2×M8
Bottom Cover Plate Screw(Nut) Tooth: 1×M8

Gas Hole/Air Inlet/Air Fitting

Gas Hole: G 1/4

Rubber Bellow

Rubber Bellow Max. Diameter: 142 MM
Rubber Bellow Natural Diameter: 136 MM
Rubber Bellow Design Height: 75 MM

Product Technical Data

Loading capacity max. (7 bar)	6.0 kN
Max. lifting pressure	8.0 bar
Diameter max.	142 mm
Required space	170 mm
Height max.	110 mm
Height min.	50 mm
Weight	0.95 kg

Manufacturer Part Number

Contitech : FS40-6

Contitech : FS 40-6

Contitech : FS40-6 1/8 M8

Contitech : FS40-6 M8 1/8

Contitech : FS40-6 G1/8 M8

Contitech : FS40-6 M8 G1/8

Contitech : FS 40-6 1/8 M8

Contitech : FS 40-6 M8 1/8

Contitech : FS 40-6 G1/8 M8

Contitech : FS 40-6 M8 G1/8

Phoenix : SP1B04

Phoenix : SP 1B04

Phoenix : SP 1B 04

Weforma : WBE100-E1

Weforma : WBE 100-E1

Weforma : WBE100E1

Air Spring Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

FAQ

Q: What is your warranty term?
A: There is a 12months warranty for our export products has run out from the date of the shipment.

Q:Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.

Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
