Suspension Air Spring W01-358-7564 Firestone 1B8-550 Goodyear Rubber Air Bag

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B8X4

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B8X4	Structure:	Double Convoluted
Damping Force Direction:	Bidirectional	Function:	Reduce Shock
Quality:	100% Tested	Trademark:	GUOMAT
After-sales Service:	1 Year	Type:	Gas-Filled
Highlight:	Suspension Air Spring W01-358-7564 , 1B8-550 Suspension Air Spring , Rubber Suspension Air Spring

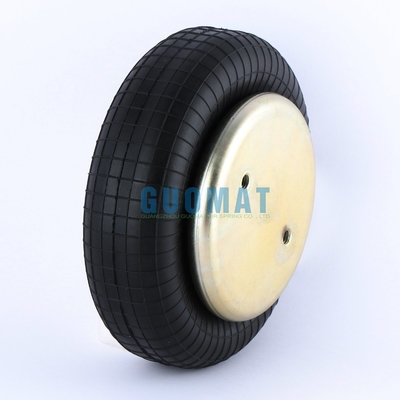

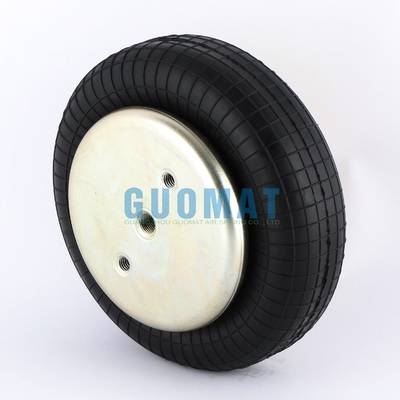

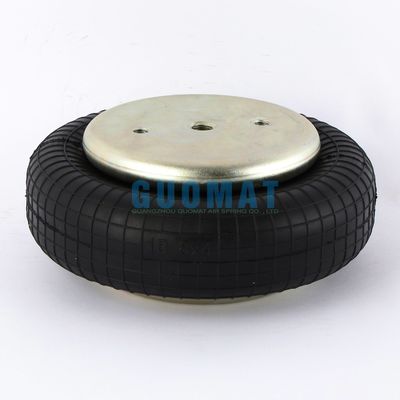

Suspension Air Spring W01-358-7564 Firestone 1B8-550 Goodyear Rubber Air Bag

Product Information

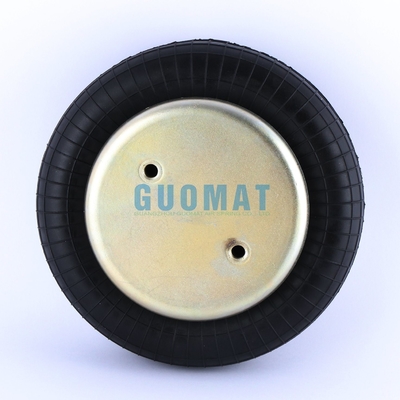

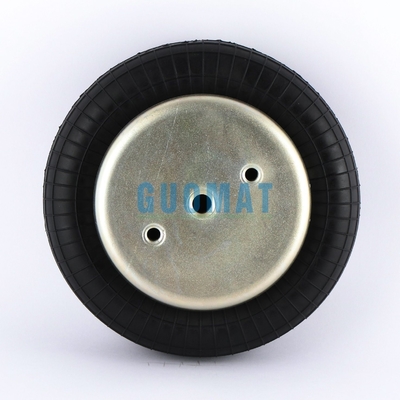

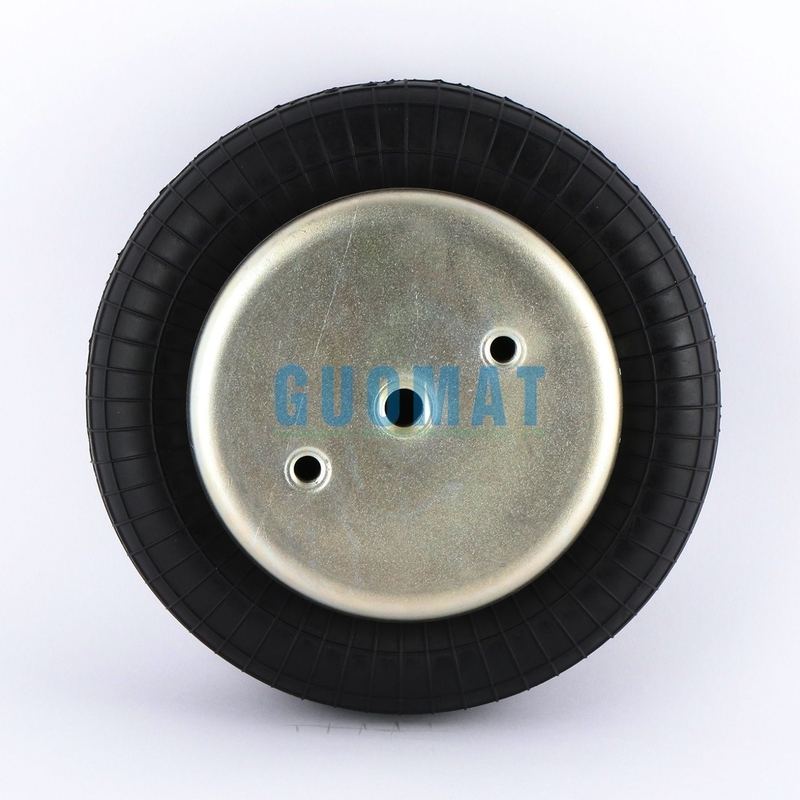

Cover Plate

Top Cover Plate Diameter: 5.31 in.
Screw Center Distance of Top Cover Plate: 2.75 in.
Bottom Cover Plate Diameter: 5.31 in.
Screw Center Distance of Bottom Cover Plate: 2.75 in.

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts

Gas Hole/Air Inlet/Air Fitting

Gas Hole: 1/4 NPT

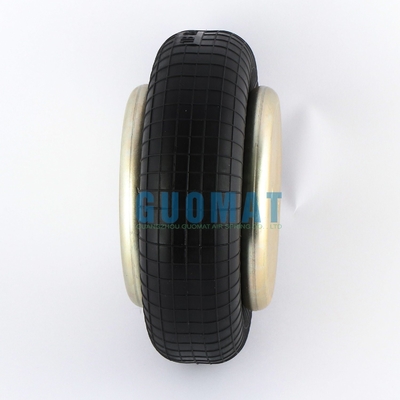

Rubber Bellow

Rubber Bellow Max Dia: 9.1 in.
Minimum Height: 2 in.
Maximum Height: 6 in.

Style 116 Two Ply Bellows	Description	Assembly Order No.
	Blind nuts, 1/4 NPT	W01-358-7564, W01 358 7564, W013587564 WO1-358-7564, WO1 358 7564, WO13587564
	Blind nuts, 3/4 NPT	W01-358-7561, W01 358 7561, W013587561 WO1-358-7561, WO1 358 7561, WO13587561
	Countersunk steel bead rings, 13/4 bolts, nuts, washers	W01-358-7568, W01 358 7568, W013587568 WO1-358-7568, WO1 358 7568, WO13587568
	Blind nuts with installed 1/4 NPT	W01-A72-7518, W01 358 7518, W013587518 WO1-358-7518, WO1 358 7518, WO13587518
	Rubber bellows only	W01-358-0133, W01 358 0133, W013580133 WO1-358-0133, WO1 358 0133, WO13580133
Style 117 High Strength Bellows	Blind nuts, 1/4 NPT	W01-358-7600, W01 358 7600, W013587600 WO1-358-7600, WO1 358 7600, WO1357600
	Blind nuts, 3/4 NPT	W01-358-7602, W01 358 7602, W013587602 WO1-358-7602, WO1 358 7602, WO1357602
	Countersunk steel bead rings, 13/4 bolts, nuts, washers	W01-358-7606, W01 358 7606, W013587606 WO1-358-7606, WO1 358 7606, WO1357606

Applications

Pulp and paper industry
Lumber mills
Lift tables
Tooling and machining system
Energy production
Tooling robotics and automation
Component assembly
Automotive assembly
Medical equipment
Conveyor systems
Packaging

The Reason Why Choose Us?

Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.
Respond promptly. We generally reply within one day.
Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
