Gart Ari. 275 Suspension Air Spring Single Convoluted Rubber Bellows Only Air Bag

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B5081

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B5081	Structure:	Single Cylinder
Quality:	100 % Tested	Fuction:	Reduce Shock
Warranty:	12 Months	Type:	Gas-Filled
Maximum Height:	145 MM	Minimum Height:	45 MM
Highlight:	Suspension Air Spring Single Convoluted , Rubber Bellows Suspension Air Spring

Gart Ari. 275 Suspension Air Spring Single Convoluted Rubber Bellows Only Air Bag

Product Specifications

Connection Type	F1
Connection Dia	134 mm
Max Rubber Bellow Dia	210 mm
Maximum Height	145 mm
Minimum Height	45 mm
Max Stroke	100 mm

Other OEM Number Dimensions

Model	Code		Connection Type	Connection Dia (mm)	Max Rubber Bellow Dia (mm)	Maximum Height (mm)	Minimum Height (mm)	Max Stroke (mm)
Model	Standard	HT	Connection Type	Connection Dia (mm)	Max Rubber Bellow Dia (mm)	Maximum Height (mm)	Minimum Height (mm)	Max Stroke (mm)
16	93029	93086	P1	114.5	153	91	46	45
131	940947	#	P1	114.5	165	110	50	60
110	93113	93114	P1	114.5	210	151	51	100
110	88540	93079	F1	134	210	145	45	100
110	88820	89023	F1	155	210	145	45	100
116	93027	#	P1	135	231	152	46	106
19	94016	95015	P2	228.6	325	151	51	100
19	94014	#	F2	247	325	143	43	100

Applications as Actuators

vehicle applications
materials handling equipment
agricultural machinery
food industry
paper and textile equipment
punch and forming presses
sawmill machinery

Applications as Anti-Vibration

diesel engines, generators
foundation mounts
heavy machinery
measuring instruments
power looms
vehicle test rigs
washing machines

Properties

are consisting of rubber or fabric membranes fitted at both ends with open flanges or metal plates with holes for air feed and threaded mounting bushes or bolts
can be used as ACTUATORS, instead of pneumatic or hydraulic cylinders, or as ANTI-VIBRATION elastic mounts with a high vibrational isolation - not require expensive control units and normally work with air network even at low pressure, both dry and lubricated
low design height
even work between nonparallel or misaligned planes
long service life and maintenance free - suitable for working in dusty or explosive environments
absence of friction for the lack of sliding elements
noiseless operation
can bear load of a few kilogrammes up to 14 tons with travel up to 275 mm

Six Reasons to Choose Us

Hight stability
In situ installation
Ride comfort
Safe and durable
Effective shock absorption
Reduce the sound

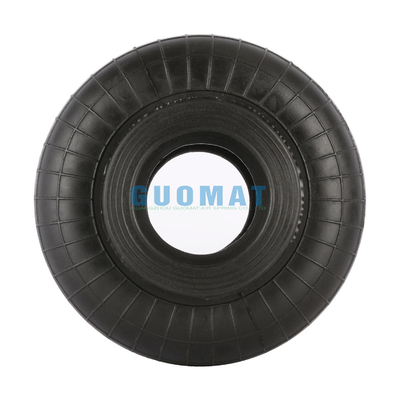

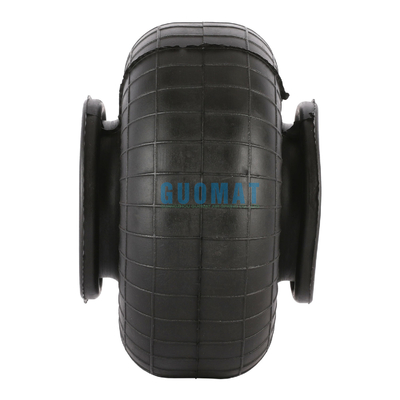

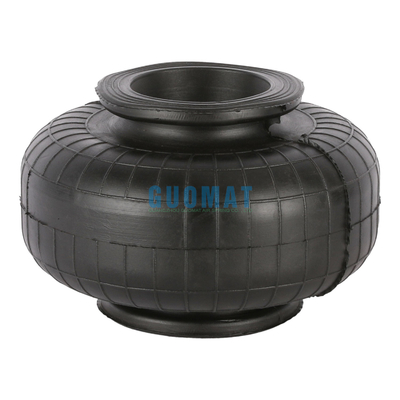

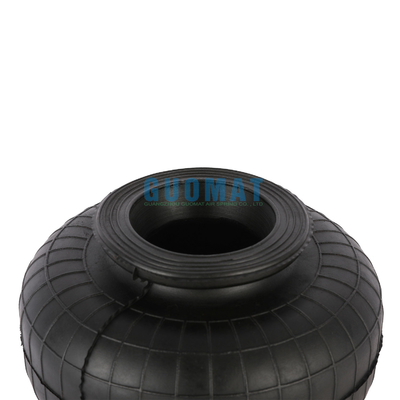

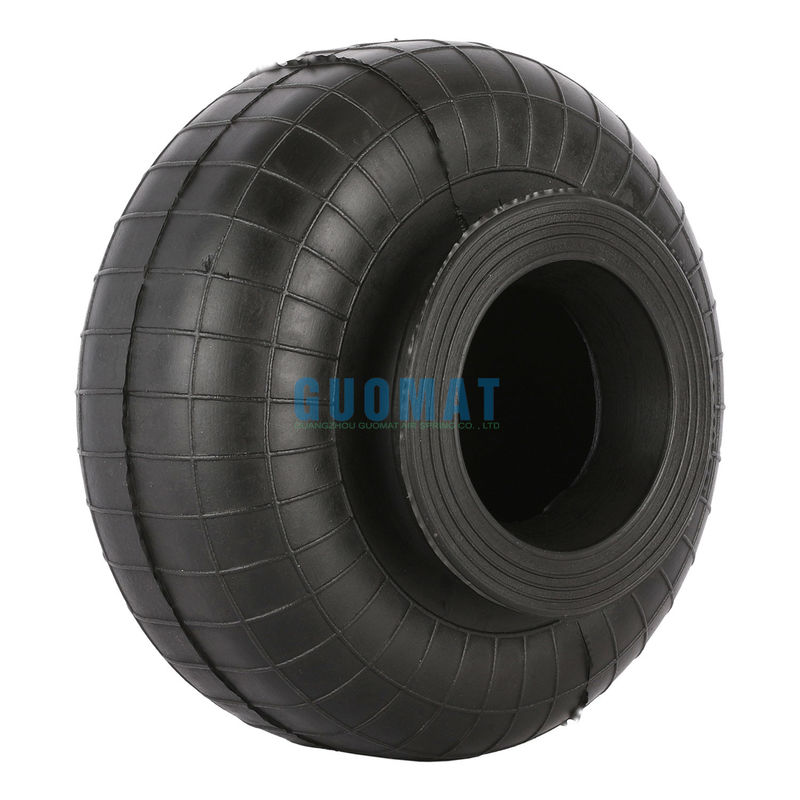

The Real Picture of Air Spring

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
High Quality Rubber Bellow Guomat 1b5081 Replace OEM Gart Ari. 275 Air Spring

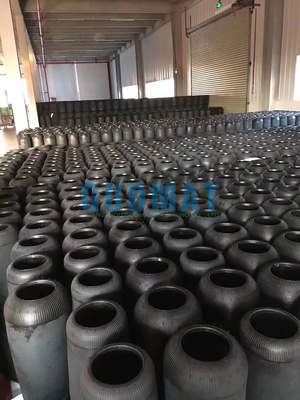

Factory workshop
