Phoenix 1B 20 Pneumatic Air Spring Single Convoluted Rubber Bellows Only Air Shocks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	HF230/116-1

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	HF230/116-1	Bellow Type:	Single Convoluted
Car Make:	Industrial Machine	Function:	Shock Absorber
Keywords:	Air Suspension Shock Absorber	Trademark:	GUOMAT
Design Height:	106 MM	Installation Space Required:	305 MM
Highlight:	Phoenix 1B 20 Pneumatic Air Spring , Pneumatic Air Spring Single Convoluted

Phoenix 1B 20 Pneumatic Air Spring Single Convoluted Rubber Bellows Only Air Shocks

Product Specification

Loading capacity max. (7 bar)	23.80 kN
Max. lifting pressure	8.0 bar
Diameter max.	305 mm
Required space	330 mm
Height max.	175 mm
Height min.	55 mm
Weight	1.02 kg

Cross References

GUOMAT HF230/116-1
GUOMAT HF 230/116-1
GUOMAT HF230116-1
PHOENIX 1B 20
PHOENIX 1B20
PHOENIX 1 B 20

Other HF Type Air Spring
HF80/90-1
HF80/142-2
HF95/70-1
HF100/166-2
HF100/238-3
HF104/66-1
HF115/77-1
HF120/132-2
HF125/112-1
HF150/140-2
HF170/120-1
HF174/126-1
HF180/156-1
HF180/152-2
HF190/170-2
HF190/248-3
HF192/140-2
HF208/90-1
HF230/116-1
HF230/120-1
HF230/140-2
HF240/100-1
HF240/165-2
HF250/255-2
HF264/90-1
HF290/105-1
HF300/255-2
HF310/160-1
HF320/203-2

Air Spring Applications

Application of rubber air springs in lifting equipment

Traditional lifting equipment uses cylinders or hydraulic cylinders to lift objects, which require large installation space, are difficult to manufacture, heavy, prone to leakage, and inconvenient to repair. After using rubber air springs as lifting elements of lifting equipment, the traditional shortcomings of lifting equipment are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.

Application of rubber air springs in vibration reduction equipment

The advantages of high-frequency vibration isolation, sound insulation and low self-vibration frequency of rubber air springs can better achieve vibration isolation and ensure the safety and stability of the base and control system of the vibration equipment. Therefore, rubber air springs are widely used in equipment such as vibration isolation of vibrating screens and vibration reduction of luxury vehicle seats.

Other uses of rubber air springs

Using rubber air springs as vibration reduction bases can effectively protect precision equipment from damage during transportation, such as the transportation of missiles and control launch devices. Using rubber air springs as support tools, taking advantage of their light weight and easy operation, it is convenient for the maintenance of field vehicles and equipment, etc.

FAQ

Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Pictures of Details

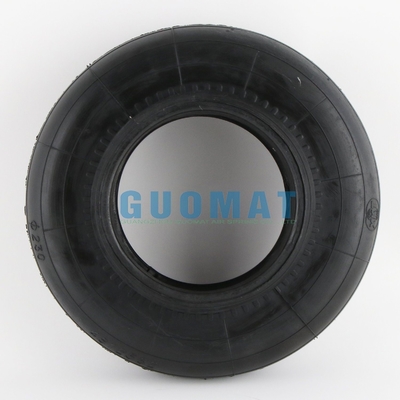

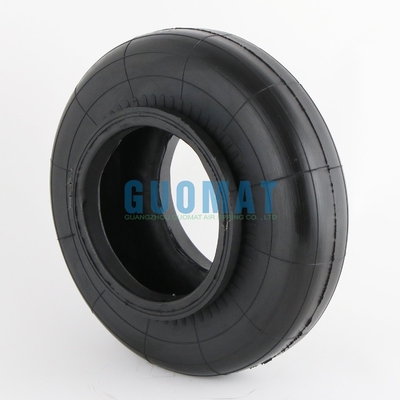

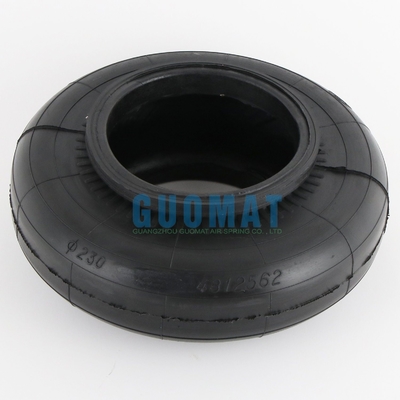

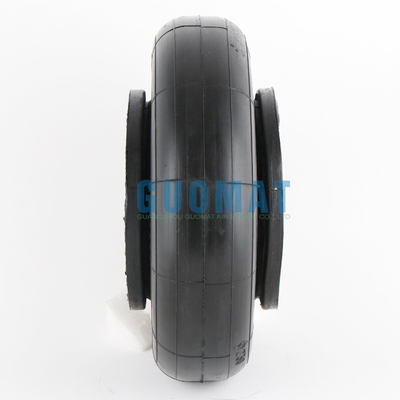

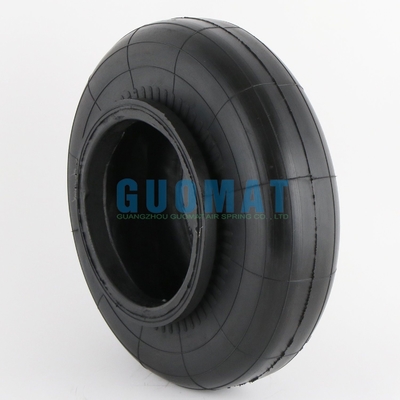

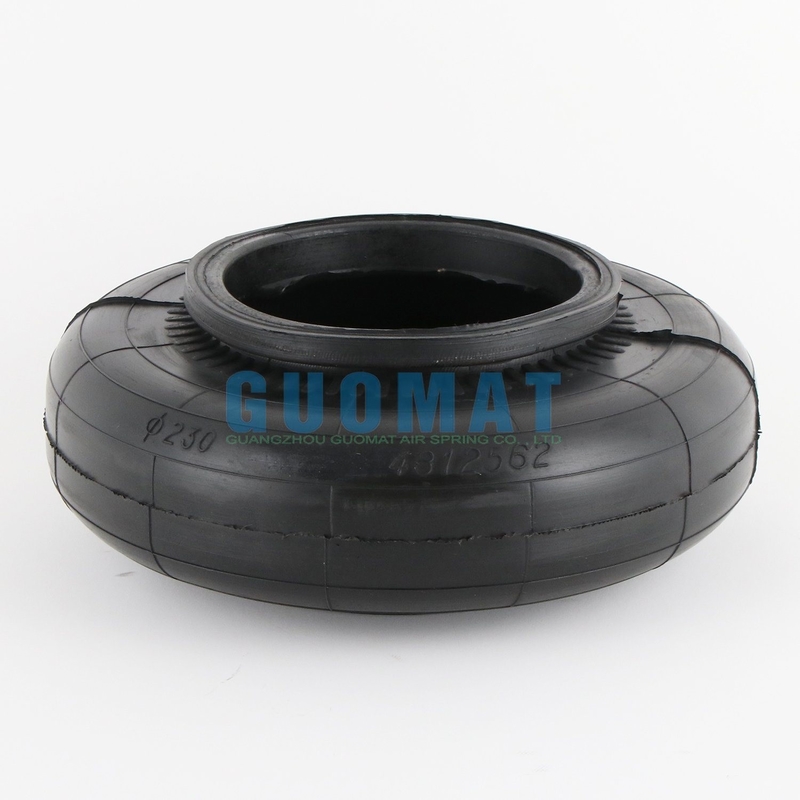

Hf230/116-1 Cross Phoenix 1b 20 Single Convoluted Industrial Air Spring
