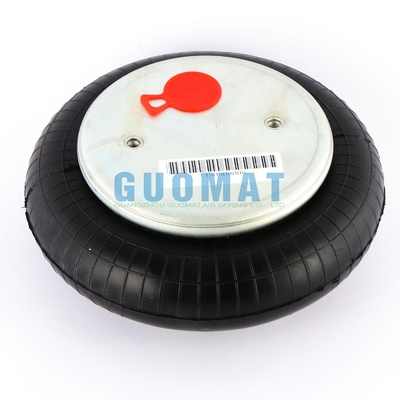

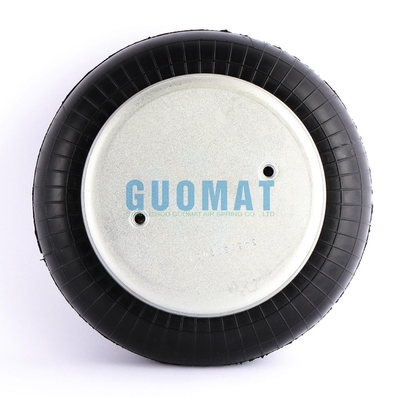

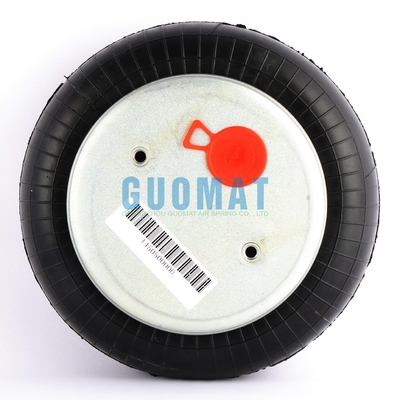

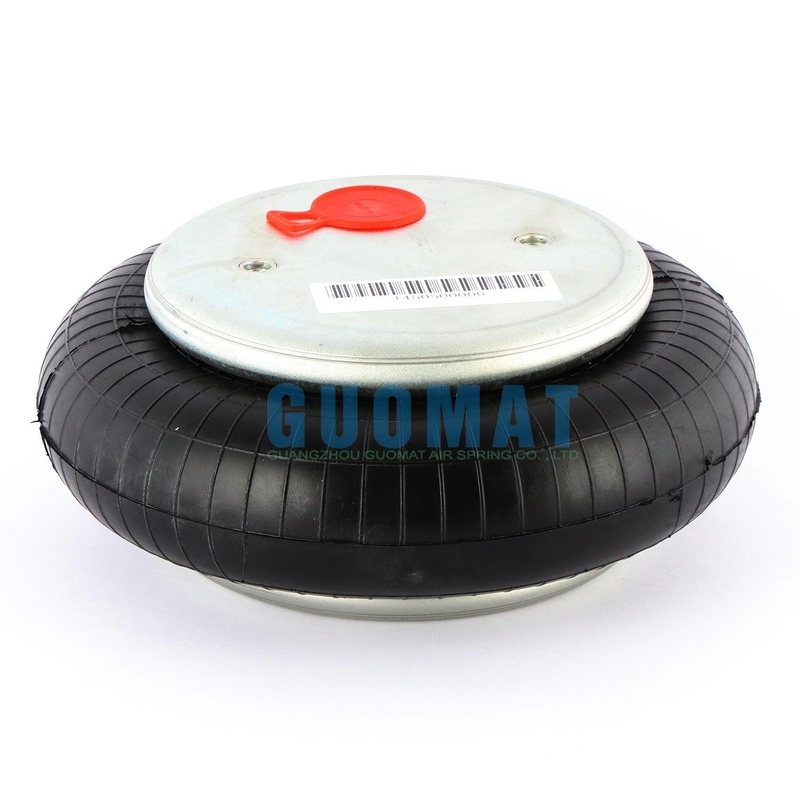

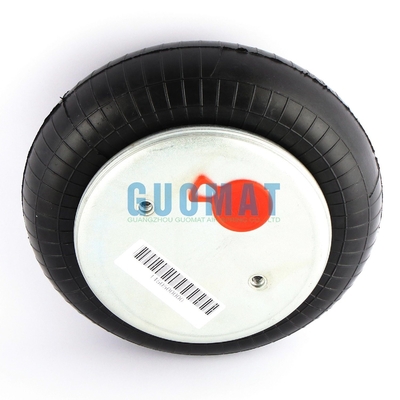

Suspension Air Spring FS200-10 Contitech Air Actuator For Pneumatic Lift Air Shock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B6910

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B6910	Function:	Reduce Shock
Manufacturer:	GUOMAT	Warranty:	1 Year
Firestone:	W01-M58-6374	Nut Type:	2×M8
Total Storke:	89 MM	Production Process:	Vulcanization
Highlight:	Contitech Air Actuator , Pneumatic Lift Air Shock , FS200-10 Suspension Air Spring

Suspension Air Spring FS200-10 Contitech Air Actuator For Pneumatic Lift Air Shock

Product Information

Top Cover Plate Diameter	161 mm
Screw Center Distance of Top Cover Plate	89 mm
Bottom Cover Plate Diameter	161 mm
Screw Center Distance of Bottom Cover Plate	89 mm
Top Cover Plate Screw(Nut) Tooth	2×M8
Bottom Cover Plate Screw(Nut) Tooth	2×M8
Gas Hole	G 1/4
Rubber Bellow Max Dia	250 mm
Minimum Height	51 mm
Maximum Height	140 mm
Total Storke	89 mm

OEM Numbers

Contitech

FS 200-10, FS 200 10, FS200-10, FS20010, FS 20010, fs 200-10, fs 200 10, fs20010, fs 20010

Firestone

W01-M58-6374, W01 M58 6374, W01M586374, WO1-M58-6374, WO1 M58 6374, WO1M586374

Phoenix

SP 1B 12, SP1B 12, SP 1B12, SP1B12

Dunlop(FR)

9''x1/4x1 s09101, 9'x1/4x1 s09101, 9x1/4x1 s09101, 9''x1/4x1 S09101, 9'x1/4x1 S09101, 9x1/4x1 S09101

Bosch

822419004

Festo

EB-250-85, EB 250-85, EB 250 85, EB-250 85, EB25085

Norgren

PM/31091(8 1/4x1), PM31091(8 1/4x1), PM 31091(8 1/4x1)

Single Convoluted Air Spring Other Technical Data

Item code	Max. diameter (mm)	Max. stroke (mm)	Min. height (kN)	Max. stroke (kN)	Standard air inlet
Item code	Max. diameter (mm)	Max. stroke (mm)	Force with p = 8 bar		Standard air inlet
FS 40-6 CI	145	60	6.9	2.4	G 1/8
FS 50-5 CI	150	44	9.0	2.2	G 1/4
FS 70-7 CI	165	64	9.9	5.2	G 1/4
FS 100-10 CI	210	94	14.7	1.6	G 3/4
FS 120-9 CI	215	85	17.7	6.6	G 3/4
FS 120-10 CI	231	99	19.5	4.6	G 3/4
FS 120-12 CI	235	119	18.7	7.2	G 3/4
FS 200-10 CI	250	89	23.8	9.1	G 3/4

Support and Services
The Suspension Air Springs product technical support and services include:

Expert troubleshooting assistance to diagnose and resolve technical issues
Guidance on proper installation and maintenance procedures
Product documentation, including user manuals and technical specifications
Product training and education for customers and service technicians
Warranty and repair services, including replacement parts and exchange programs
Customer support for urgent technical issues or service needs

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
