Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B7731

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B7731	Structure:	Single Convoluted
Damping Force Direction:	Bidirectional	Suspension Type:	Active Air Suspension
Trademark:	GUOMAT	Warranty:	12 Months
Type:	Gas-Filled	Air Hole:	1/4 NPT
Highlight:	Truck Shock Absorber Air Suspension , Firestone Air Suspension , Single Convoluted Air Suspension

Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber

Product Information

Top Cover Plate Diameter: 4.50 in.

Screw Center Distance of Top Cover Plate: 1.75 in.

Bottom Cover Plate Diameter: 4.50 in.

Screw Center Distance of Bottom Cover Plate: 1.75 in.

Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts

Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts

Gas Hole: 1/4 NPT

Rubber Bellow Max Dia: 6.5 in.

Minimum Height: 2.0 in.

Maximum Height: 4.5 in.

Total Storke: 2.5 in.

Original Equipment Manufacturer Number

Fire-stone Part Number:W01-358-7731
Fire-stone Part Number:W01 358 7731
Fire-stone Part Number:W013587731
Fire-stone Part Number:WO1-358-7731
Fire-stone Part Number:WO13587731
Fire-stone Part Number:WO1 358 7731
Fire-stone Part Number:w01-358-7731
Fire-stone Part Number:w013587731
Fire-stone Part Number:w01 358 7731

Firestone Style 131 Has Other Type Air Springs

Blind nuts, 1/4 NPT	W01-358-7731, W01 358 7731, W013587731 WO1-358-7731, WO1 358 7731, WO13587731
Blind nuts, 3/4 NPT	W01-358-7742, W01 358 7742, W013587742 WO1-358-7742, WO1 358 7742, WO13587742
Socket head aluminum bead rings(bolts, nuts, wahsers not included-use 1/4 cap screws)	W01-358-0127, W01 358 0127, W013580127 WO1-358-0127, WO1 358 0127, WO13580127
3/4 NPT(only) upper plate, blind nuts lower plate	W01-358-7729, W01 358 0127, W013580127 WO1-358-0127, WO1 358 0127, WO13580127
Rubber bellows only	W01-358-0131, W01 358 0131, W013580131 WO1-358-0131, WO1 358 0131, WO13580131

What Are The Advantages of Our Shock Absorbers

Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

FAQ

Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.

Q:Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.

Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

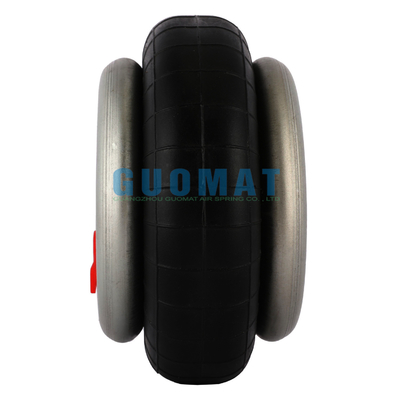

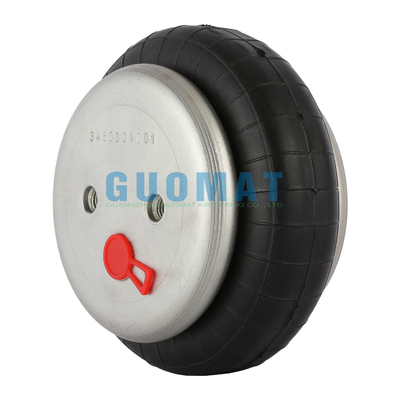

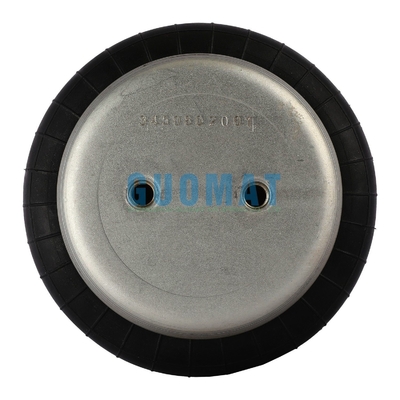

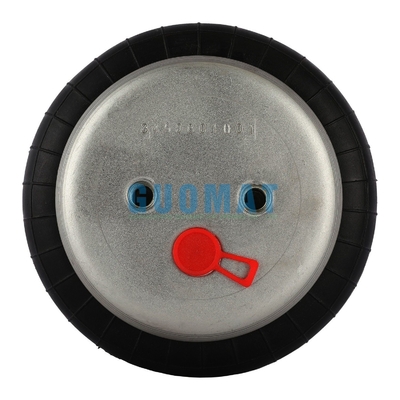

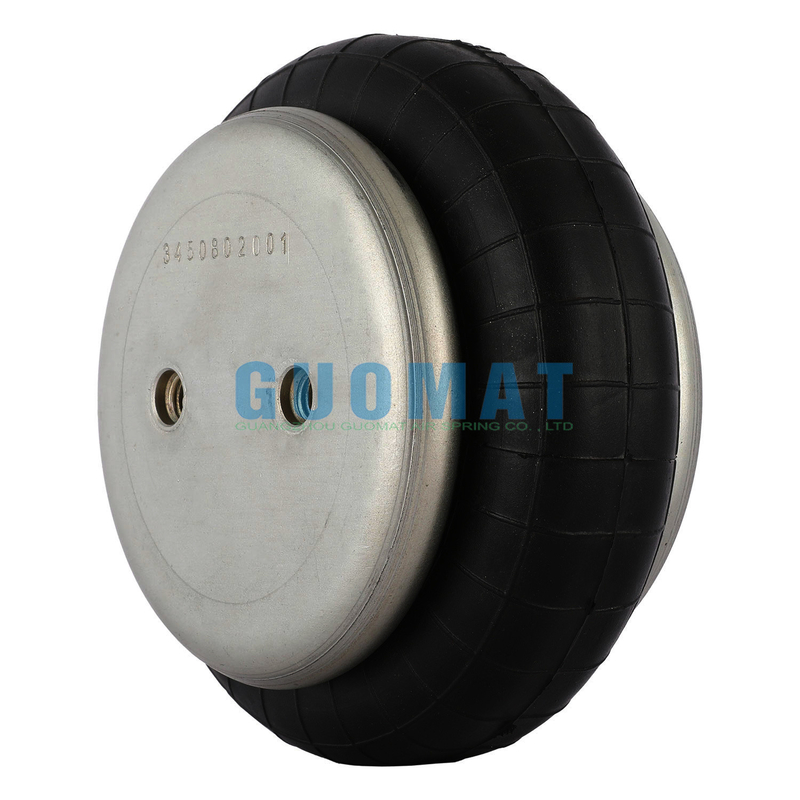

The Real Pictures of 1B7731

Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber 0 Company Profile

Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.

The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.

Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber 2

Factory Workshop

Firestone Air Suspension W01-358-7731 Single Convoluted For Truck Shock Absorber 3
