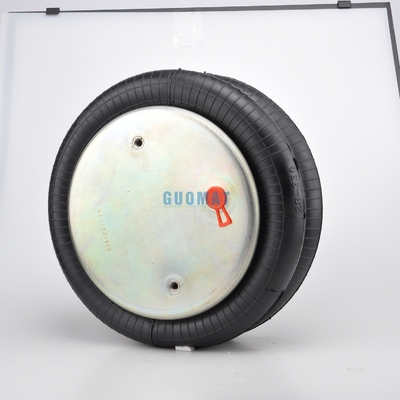

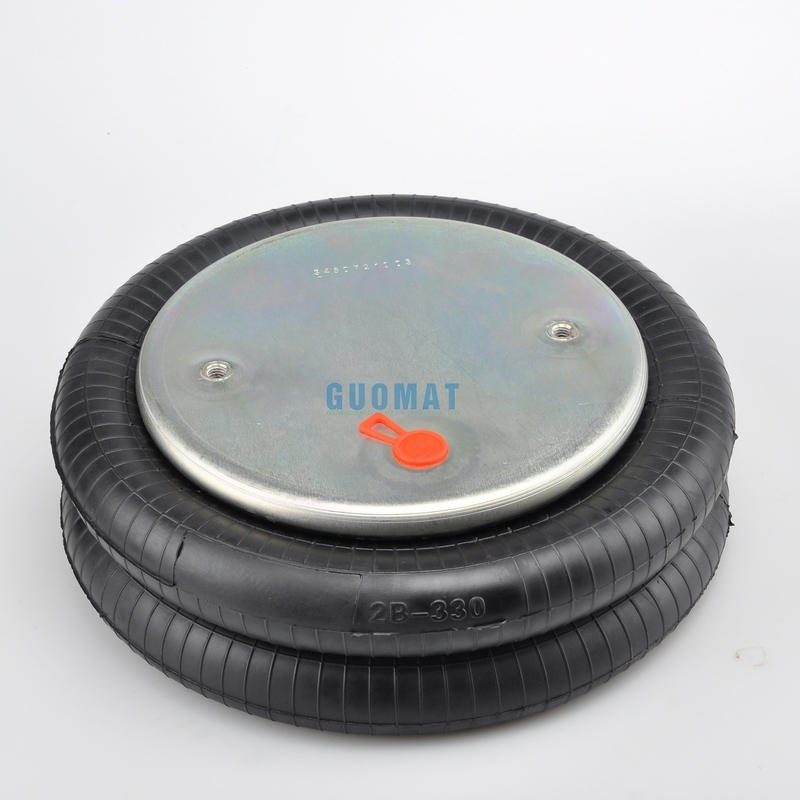

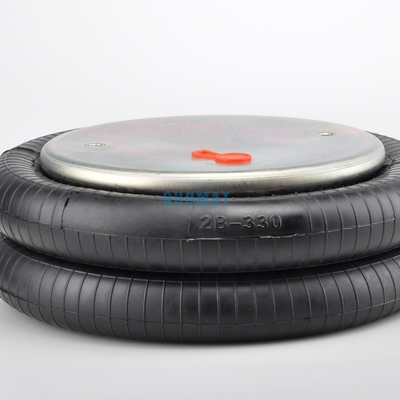

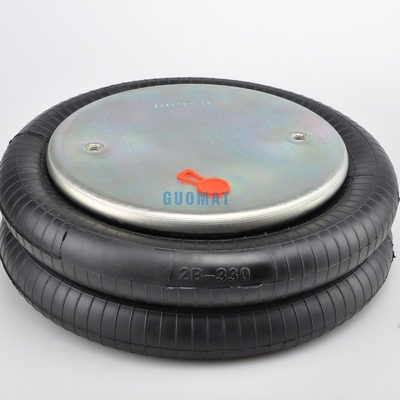

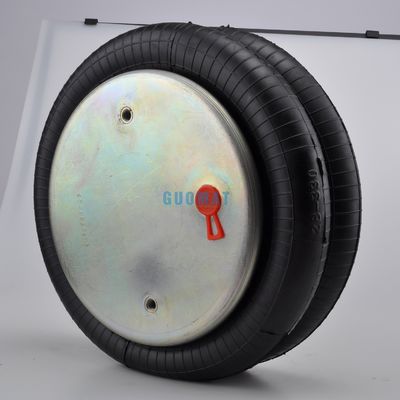

W013587180 FIRESTONE Air Spring FLEX 22 Industrial Double Convoluted FD330-22 Air Suspension

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6330

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Suspension Air Spring	Pressure Ability:	0.2-0.8 M PA
Air Inlet:	1/4 NPT	Top Plate Hole/Stud:	3/8-16unc
Bottom Plate Hole/Stud:	3/8-16unc	Top Plate Dia:	231 Mm
Bottom Plate Dia:	231 Mm	Warranty:	One Year
Material:	Rubber And Iron	OEM:	Yes
Highlight:	W013587180 Air Spring , FD330-22 Double Convoluted Air Spring

W013587180 FIRESTONE Air Spring FLEX 22 IndustrialDouble Convoluted FD330-22 Air Suspension

Technical Parameters of W01-358-7180

Top Cover Plate Diameter 231mm

Bottom Cover Plate Diameter 231 mm

Screw Center Distance 157 mm

Distance Gas Hole Between Nut 73 mm

Gas Hole 1/4NPTF

Screw (Nut) Tooth 2pcsX3/8-16UNC

Rubber Bellows MAX diameter 325 mm

The Stroke 81-305 mm

OEM Original Equipment Manufacturer:

BELLOW NO.	COMPLETE NO.	COMPLETE NO.
AIRKRAFT 114301	AIRKRAFT 113333	AIRKRAFT 113491
FIRESTONE air spring FLEX 22	CONTITECH FD 330-22 313	FIRESTONE Air Spring W01-358-7184
FIRESTONE air spring W01 358 0226	FIRESTONE air spring W01 358 7400	GOODYEAR 2B12-429
95.0037	GOODYEAR 2B12-309	GOODYEAR FLEX 578-92-3-309
95.0082	GOODYEAR FLEX 578-92-3-309	AIRKRAFT 113492
GOODYEAR 556 2 3 8210	TAURUS KF 222-7400	FIRESTONE Air Spring W01-358-7185
PHOENIX 2B 22R	AIRKRAFT 113490	GOODYEAR 2B12- 318 Goodyear Part # 2B12-311 Goodyear-FIRE STONE Air Spring Cross Reference‚ 2B12-425 Goodyear-FIRE STONE Air Spring Cross Reference‚ 2B12-437 Goodyear-FIRE STONEAir Spring Cross Reference
PIRELLI T22 88544	CONTITECH FD 330-22 363	GOODYEAR FLEX 578-92-3-309
	FIRESTONE Air Spring W01-358-7180
	GOODYEAR 2B12 425
	GOODYEAR FLEX 578-92-3-309

Firestone air spring : W01-358-7180/22
Contitech: FD 330-22 363
Goodyear: 2B12-425/311
Hendrickson : 1VA1816
: 578923309
Triangle : 6316/4363
Kwiklok/Todco(Jifflox)
Leland : Sc2075
Navistar : 1685179C1
EI Ride : 8030190
SAF Holland : 57007180
Watson&Chalinl : AS01541G/01881F
Vibracoustic : VSP2B22R7180
Ridewell : 1003587180C
Peerless : 0550 00001

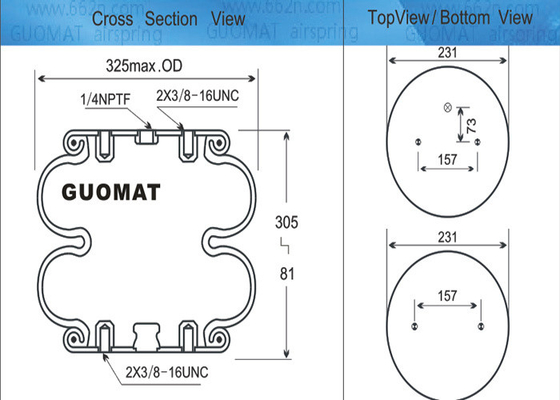

The drawing of GUOMAT 2B6330 air spring:

W013587180 Fire Stone Air Spring Flex 22 Industrial Double Convoluted Fd330-22 Air Suspension

The usal kinds of Double Convolution Air Springs

Double Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO.	Contitech NO.	Min. Design height	Installation Space Required	Max. Stroke
2B33022	FD 330-22	75	340	230
2B33030	FD 330-30	77	355	283
2B53022	FD 530-22	77	400	233
2B53030	FD 530-30	77	415	273
2B53035	FD 530-35	77	420	313
2B96022	FD 960-22	95	490	225
2B133025	FD 1330-25	92	570	243

Style 22 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6381;W01 M58 6381;W01M586381

Blind nuts, 1/4 BSP, bumper:W01-M58-6382;W01 M58 6382;W01M586382

Blind nuts, 3/4 BSP:W01-M58-6200;W01 M58 6200;W01M586200

Blind nuts, 3/4 BSP, bumper:W01-M58-6201;W01 M58 6201;W01M586201

Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-7524;W01 M58 7524;W01M587524

Rubber bellows only:W01-358-0226;W01 358 0226;W013580226

Assembly weight (bead plate version, no bumper):5.8 kg.

Force to collapse to minimum height (@ 0 BAR):88.9 N.

Style 210 High Strength Con-struction
Blind nuts, 1/4 BSP:W01-M58-6212;W01 M58 6212;W01M586212

Blind nuts, 1/4 BSP, bumper:W01-M58-6213;W01 M58 6213;W01M586213

Blind nuts, 3/4 BSP:W01-M58-6210;W01 M58 6210;W01M586210

Countersunk steel bead rings,bolts, nuts, washers:W01-M58-6976;W01 M58 6976;W01M586976

Rubber bellows only:W01-358-7928;W01 358 7928;W013587928

Use in many applications including:
